Disassembly And Assembly: Notes

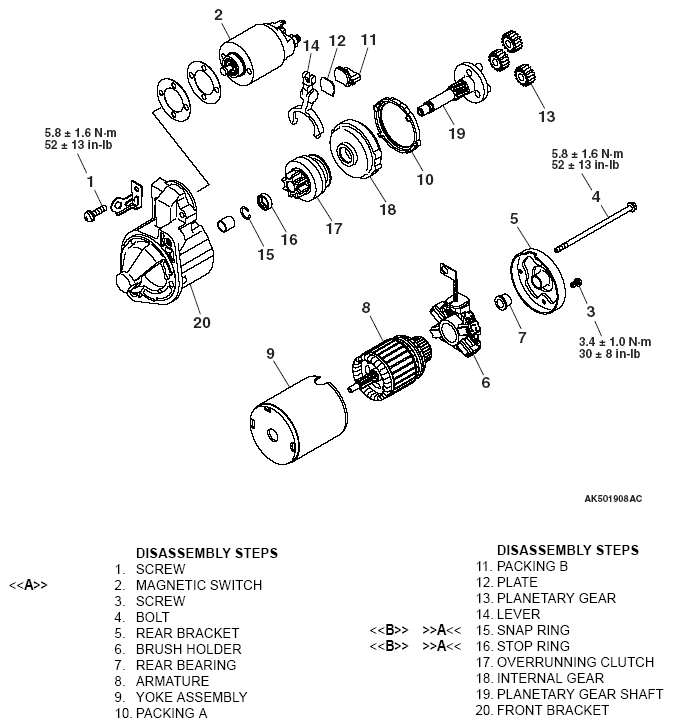

Fig 1: Starter Motor Assembly Disassemble/Assemble Replacement Components With Torque Specifications
G05375437Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
