General Data and Specifications

GENERAL DATA AND SPECIFICATIONS

[ECLIPSE ]

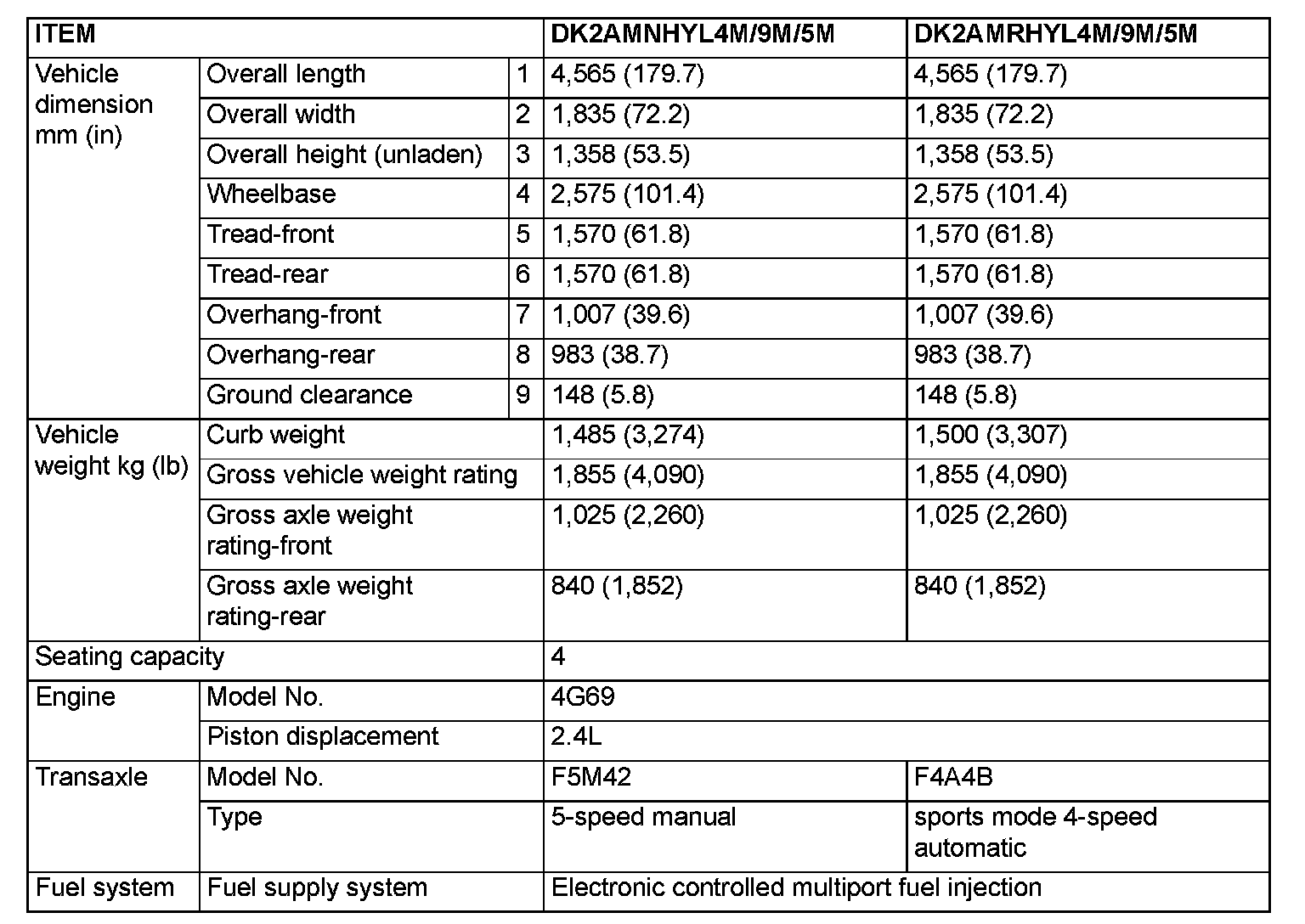

GENERAL SPECIFICATIONS (2.4L ENGINE)

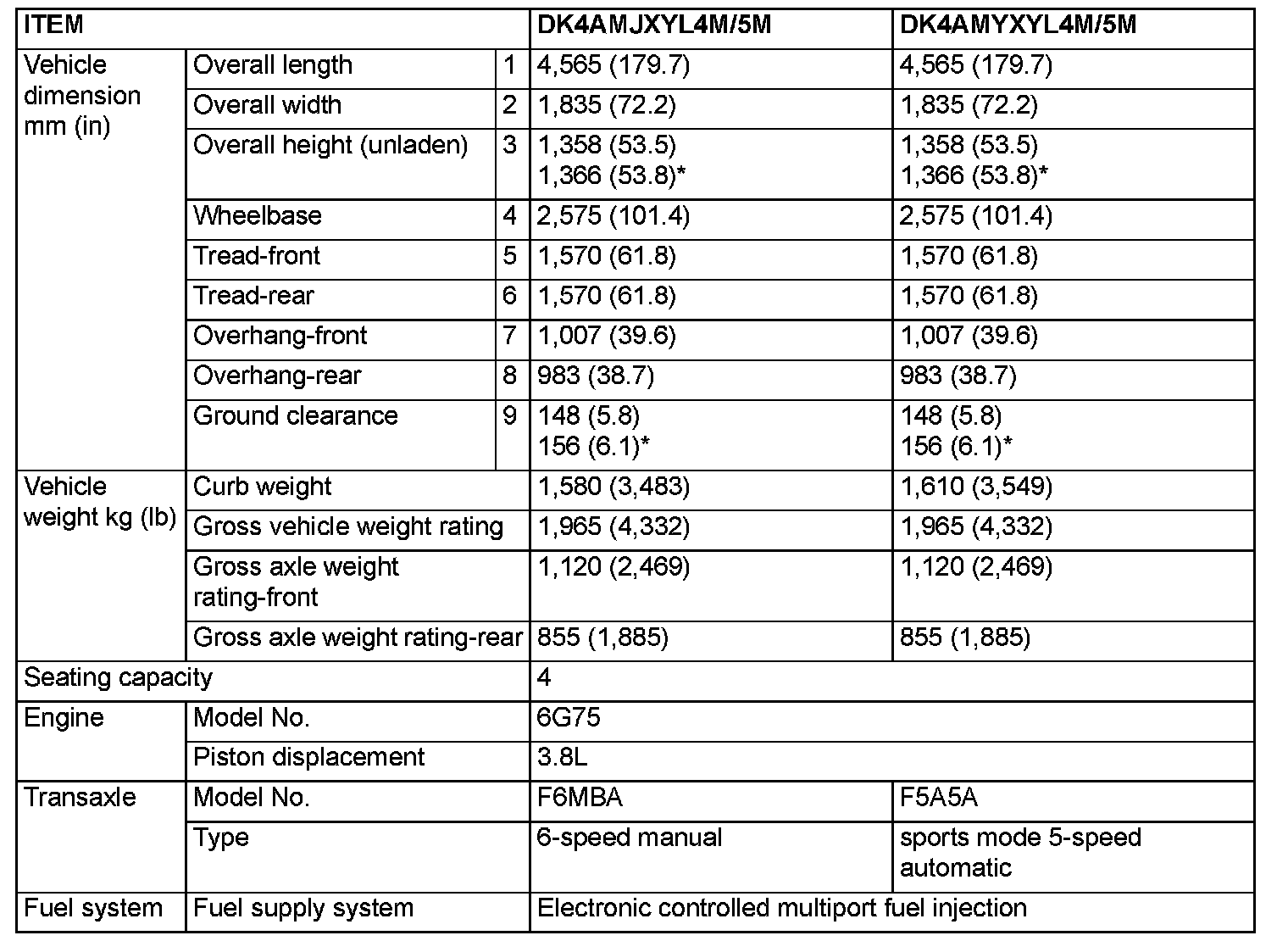

GENERAL SPECIFICATIONS (3.8L ENGINE)





NOTE: *indicates vehicles with 18-inch wheels.

[ECLIPSE SPYDER]

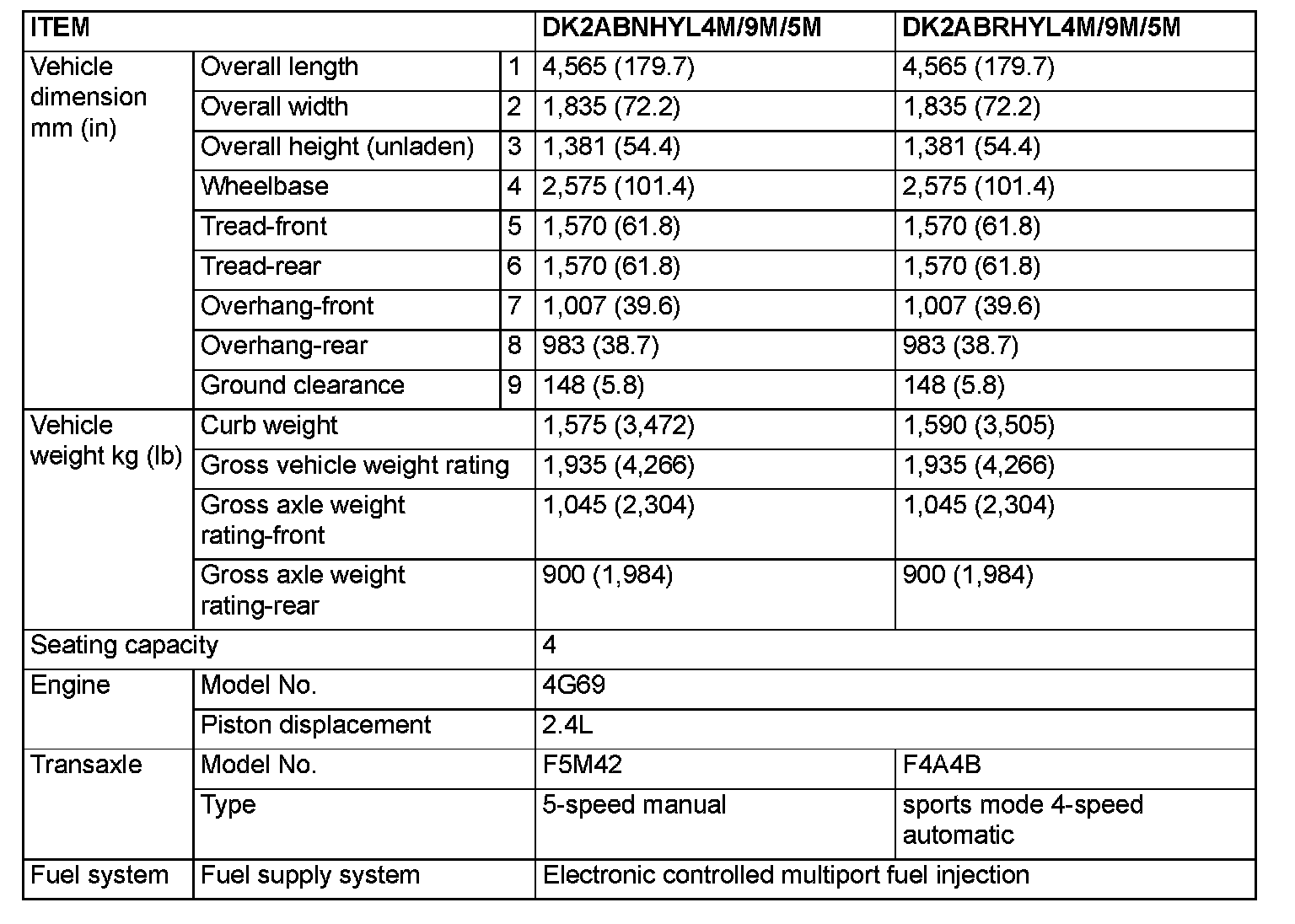

GENERAL SPECIFICATIONS (2.4L ENGINE)

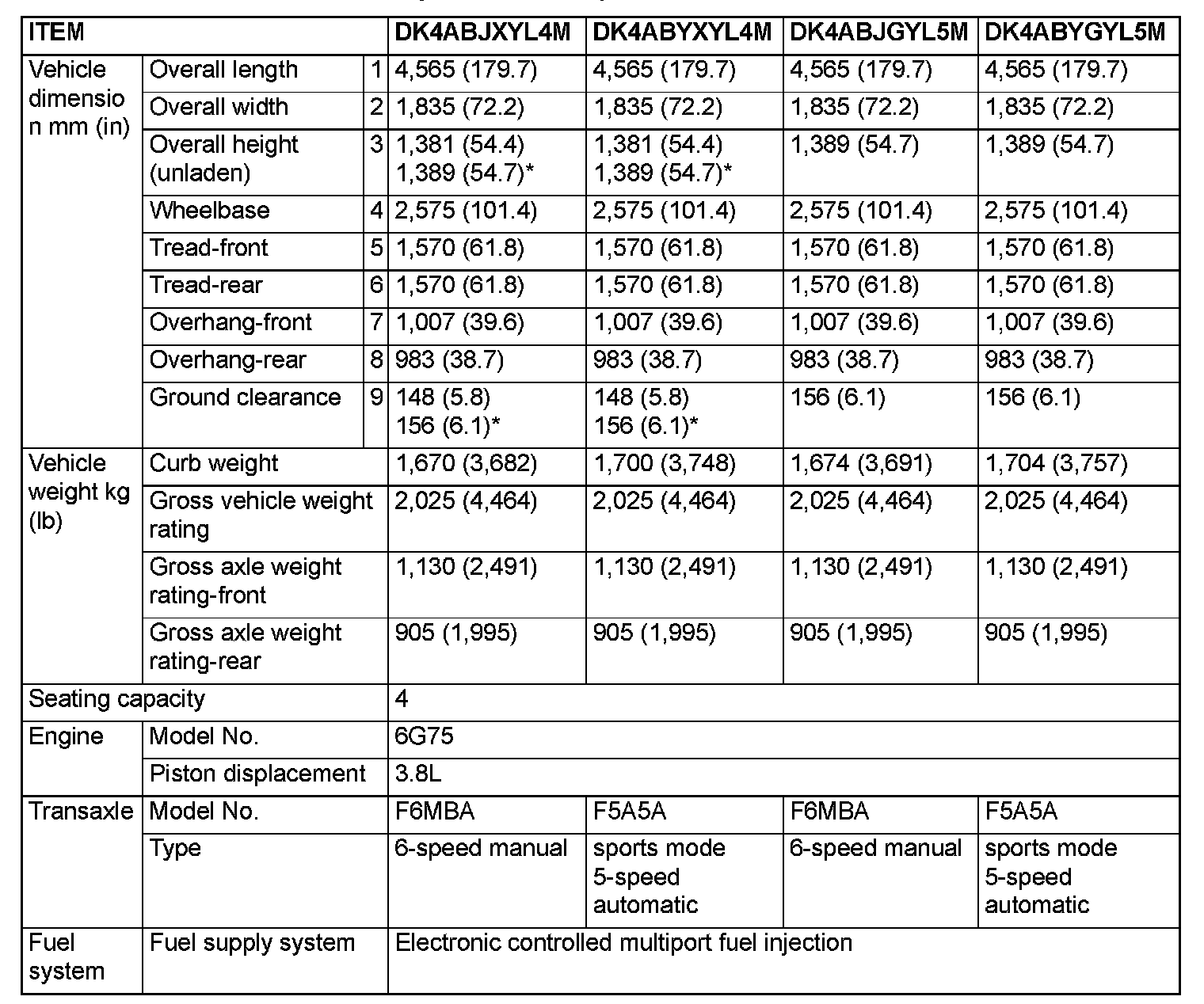

GENERAL SPECIFICATIONS (3.8L ENGINE)





NOTE: *indicates vehicles with 18-inch wheels.
