DTC P0107-Manifold Absolute Pressure Sensor Circuit Low: Notes

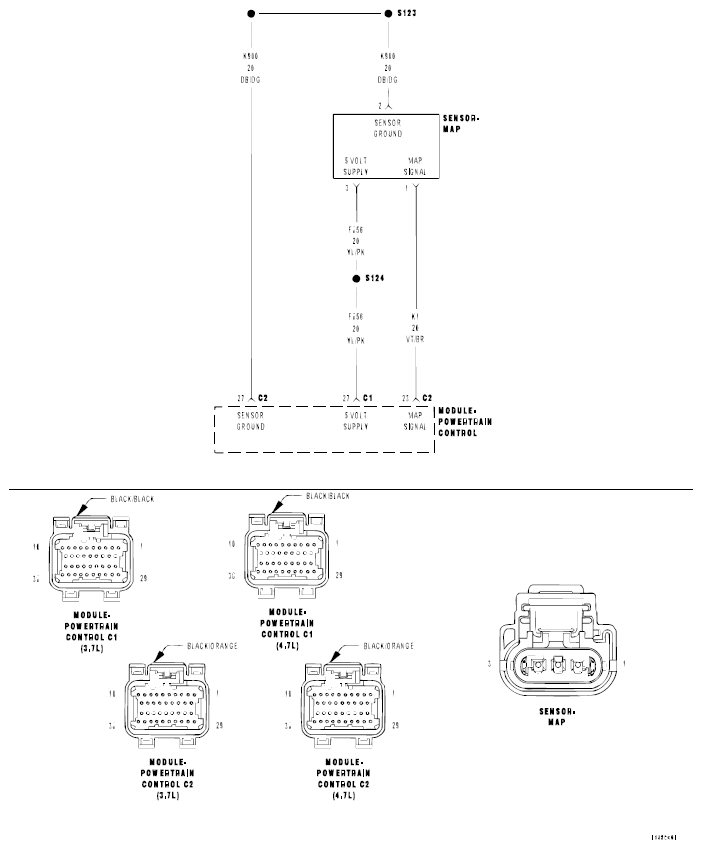

Fig 1: Manifold Absolute Pressure Sensor Circuit - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  Engine speed between 600 to 3500 RPM. Battery voltage greater than 10 volts.

• Set Condition:

  The MAP sensor signal voltage is below 0.08 of a volt for 3.0 seconds. One Trip Fault. Three good trips to turn off the MIL.

Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
