Removal And Installation: Notes

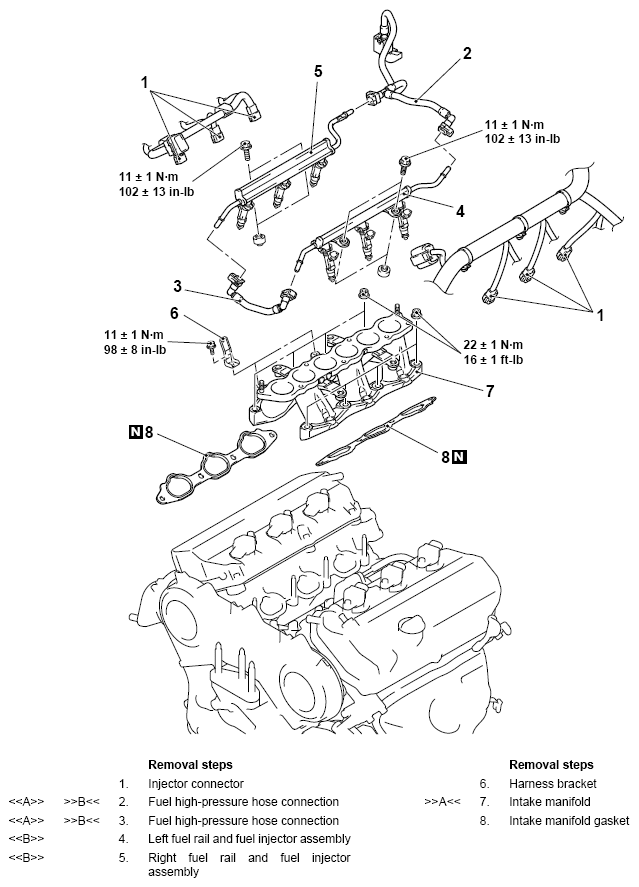

Fig 1: Intake Manifold Removal / Installation Components With Torque Specifications
G04870915Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
