Removal And Installation: Notes

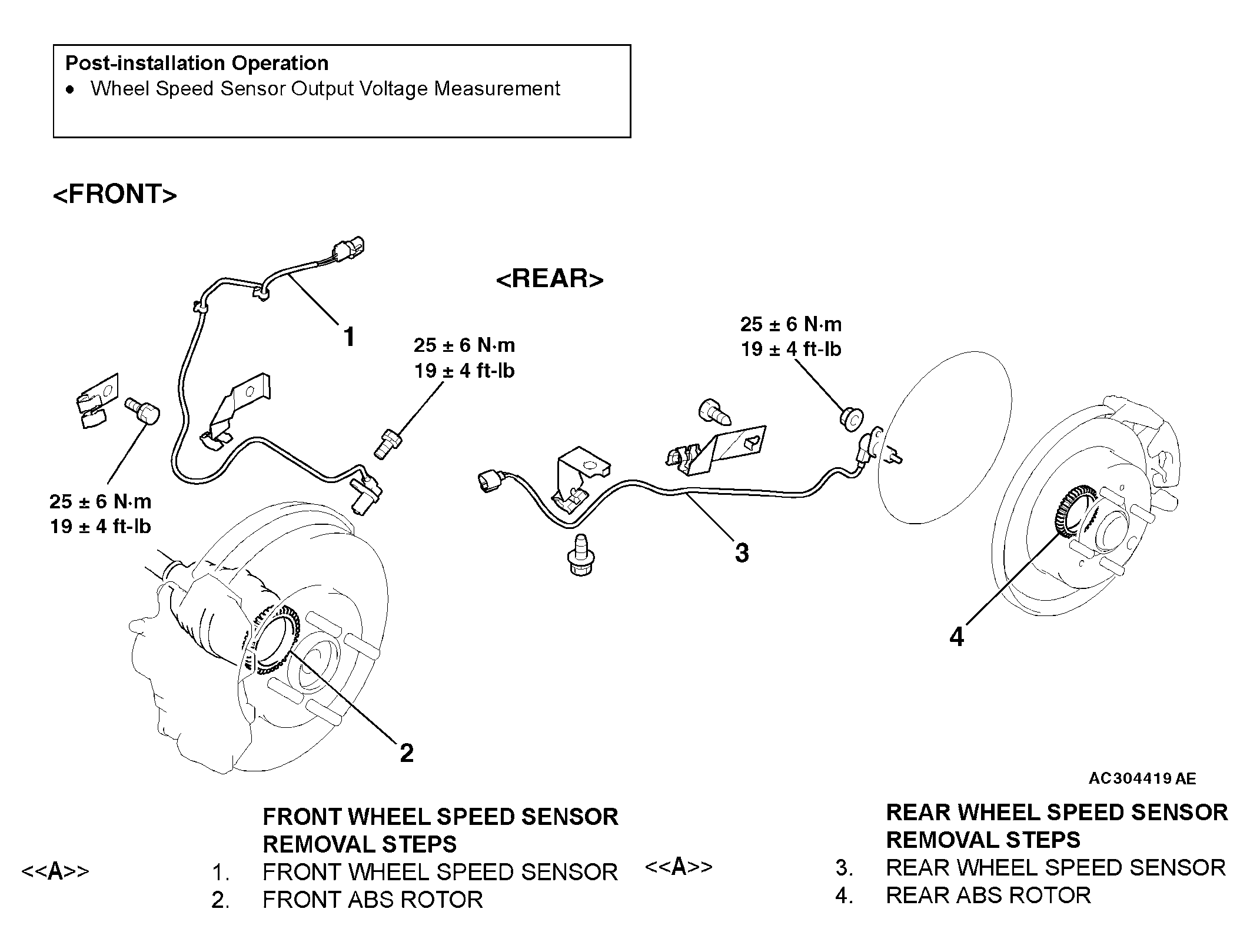

Fig 1: Removing /Installing Wheel Speed Sensor
G04277758Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
