Removal and Replacement

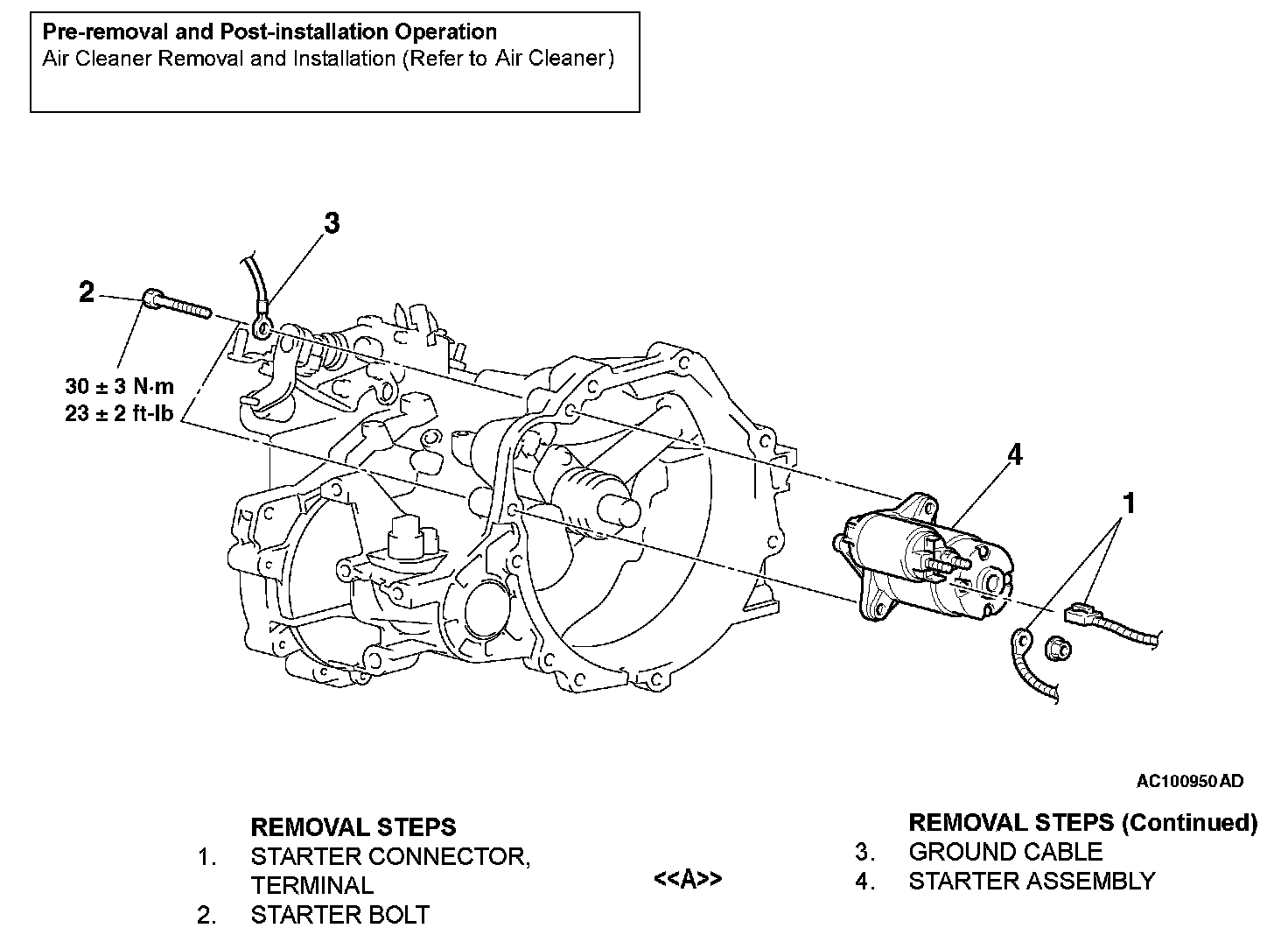

STARTER MOTOR ASSEMBLY




REMOVAL AND INSTALLATION <2.0L ENGINE>

REMOVAL SERVICE POINT

<> STARTER ASSEMBLY REMOVAL
Remove the starter assembly from above the vehicle.
