Disassembly And Assembly: Notes

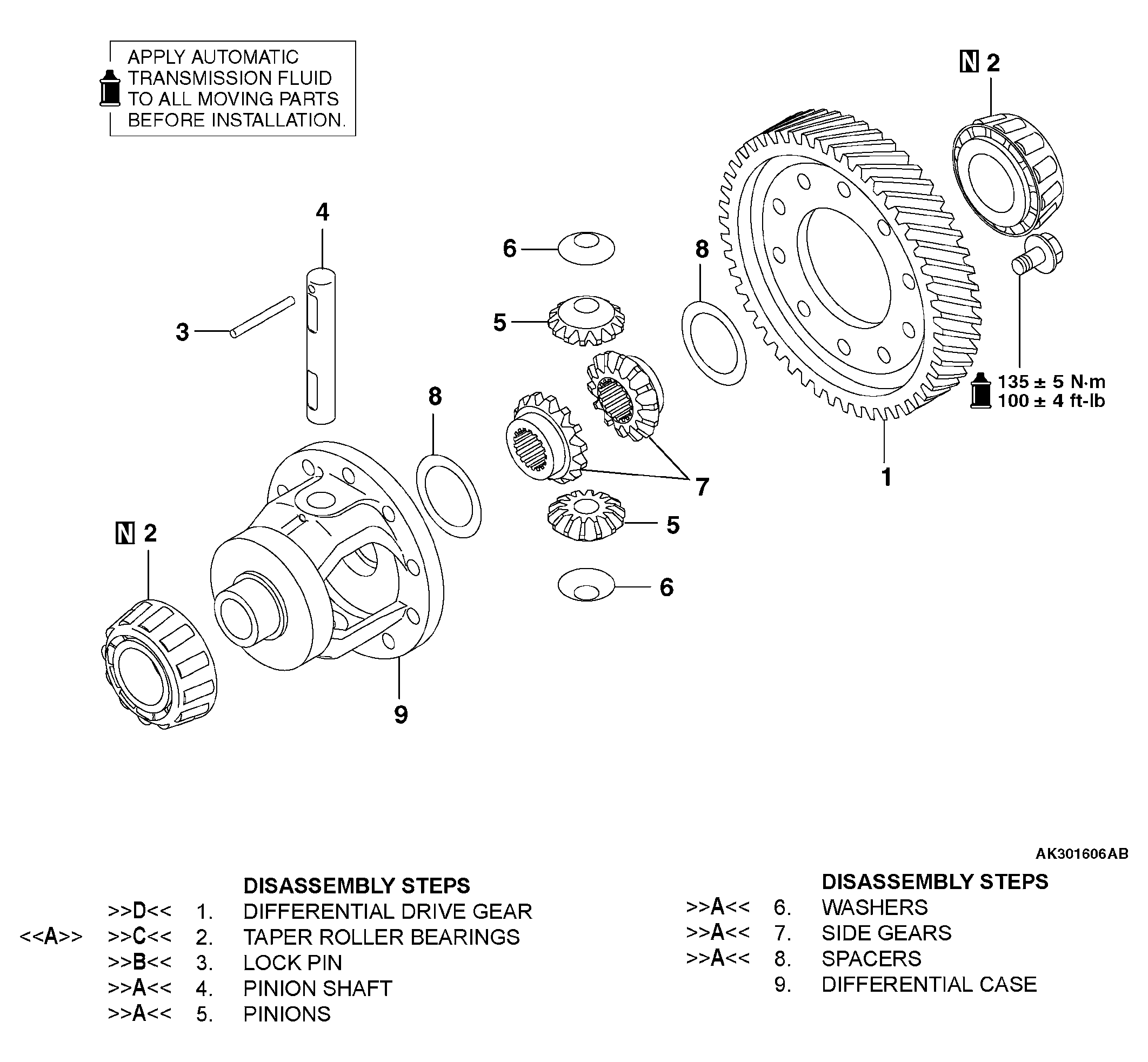

Fig 1: Disassembling View Of Differential
G04277348Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
