Removal And Installation: Notes

CAUTION:
  • When the engine assembly replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
  • *: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

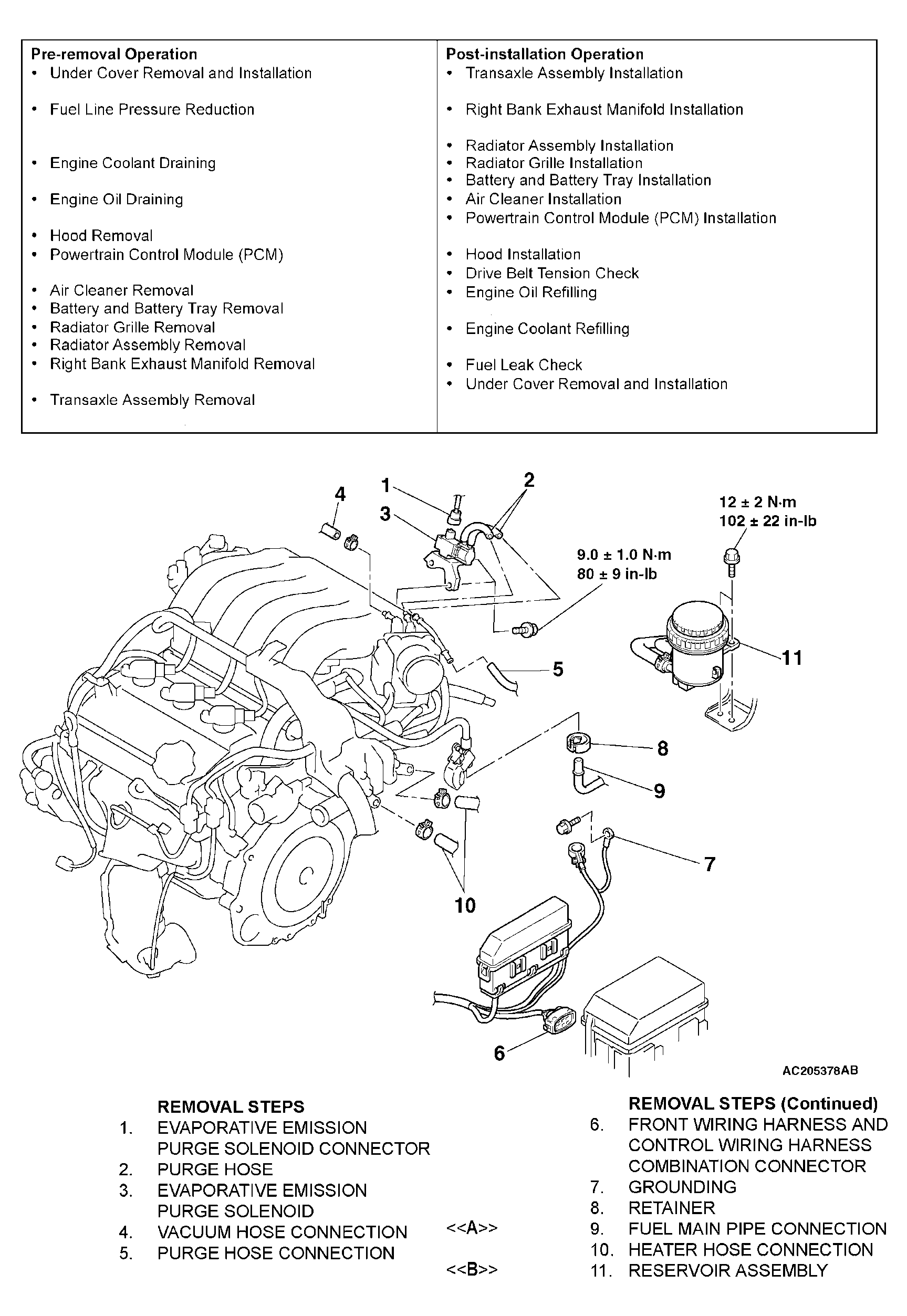

    Fig 1: Removing/Installing Engine Assembly With Torque Specifications (1 Of 2)
    G04280491Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

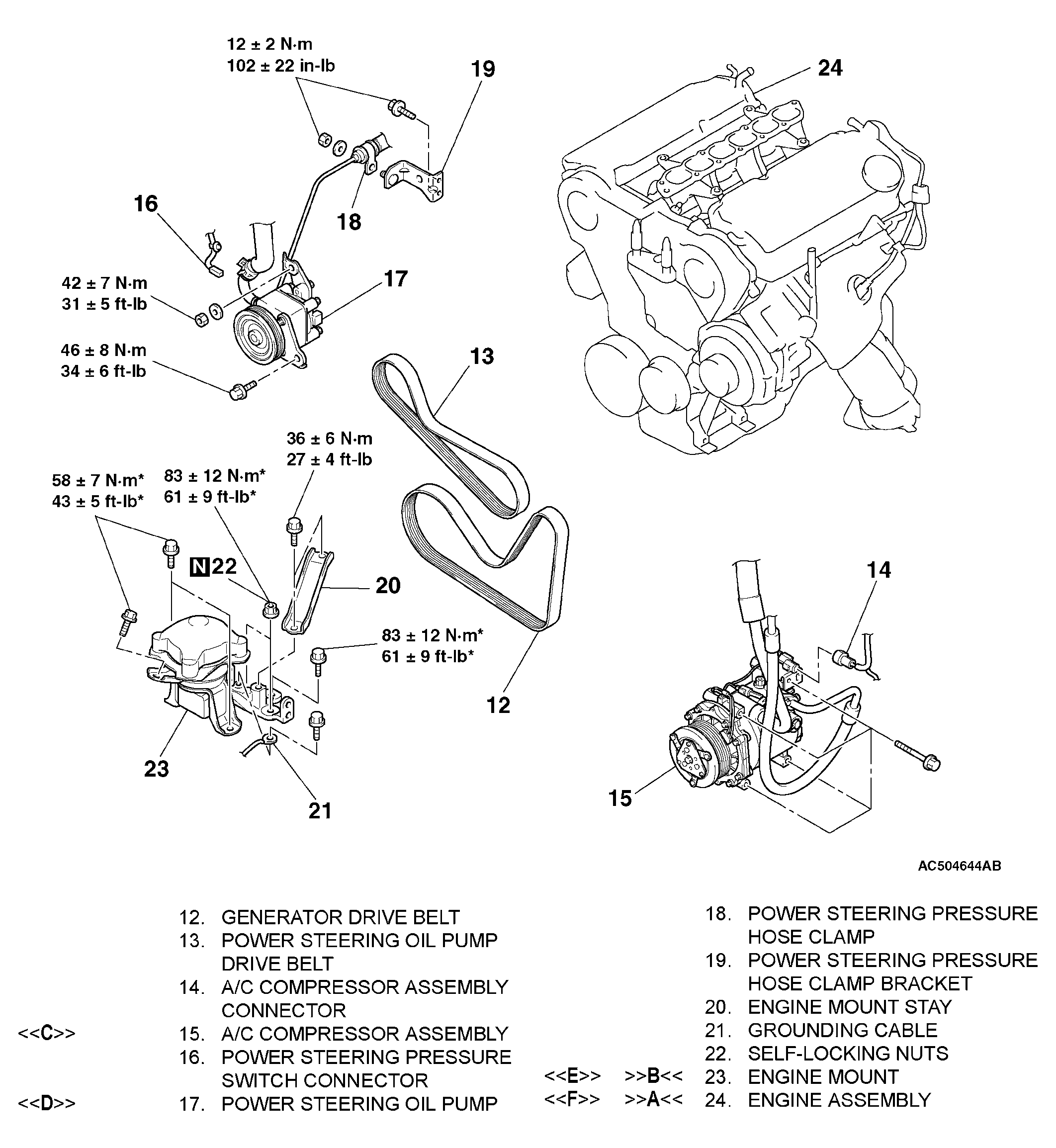

    Fig 2: Removing/Installing Engine Assembly With Torque Specifications (2 Of 2)
    G04280492Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
