Removal And Installation

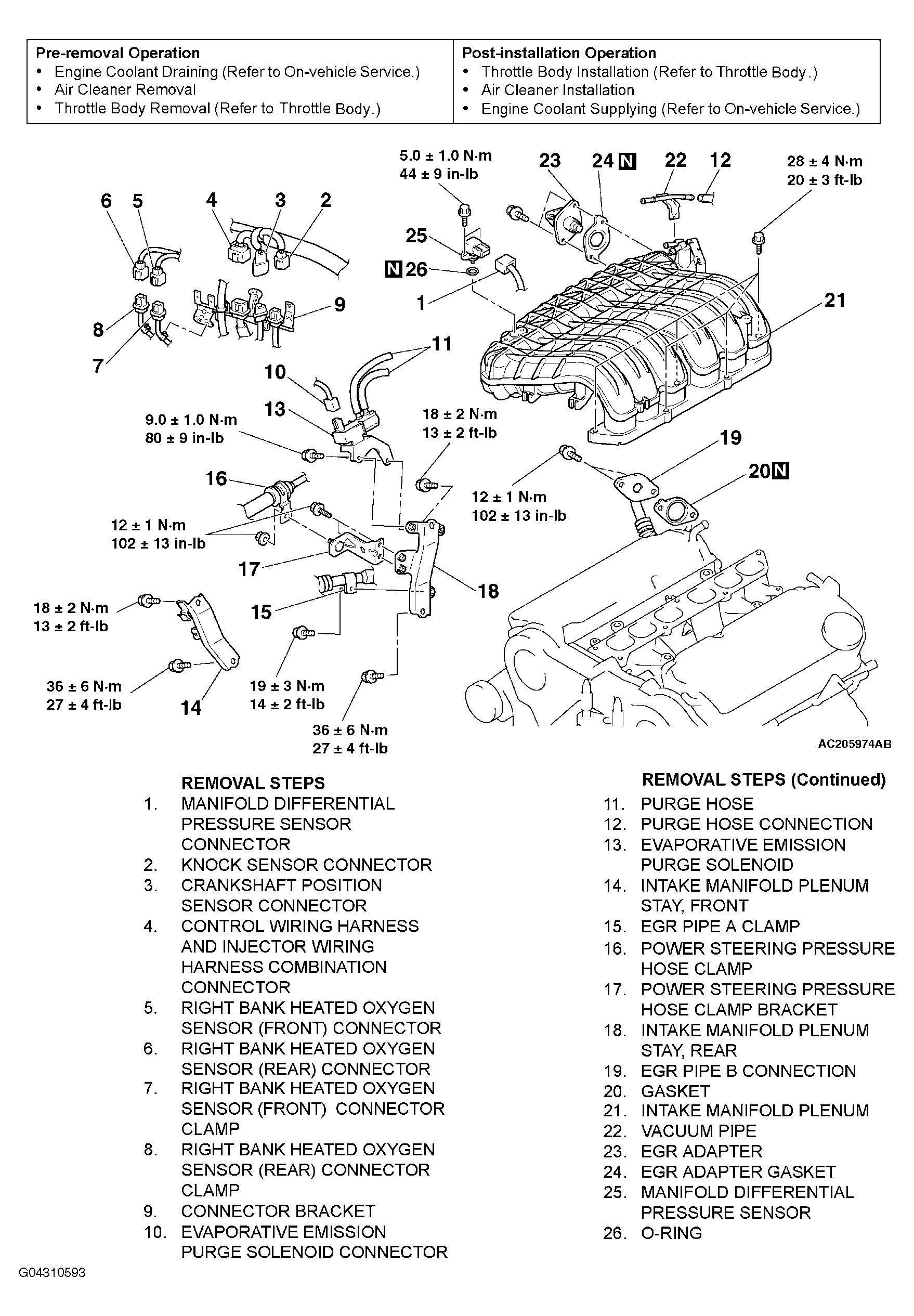

Fig 1: Exploded View Of Intake Manifold Plenum With Torque Specifications
G04310593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
