General Circuit Diagram For The Power Windows

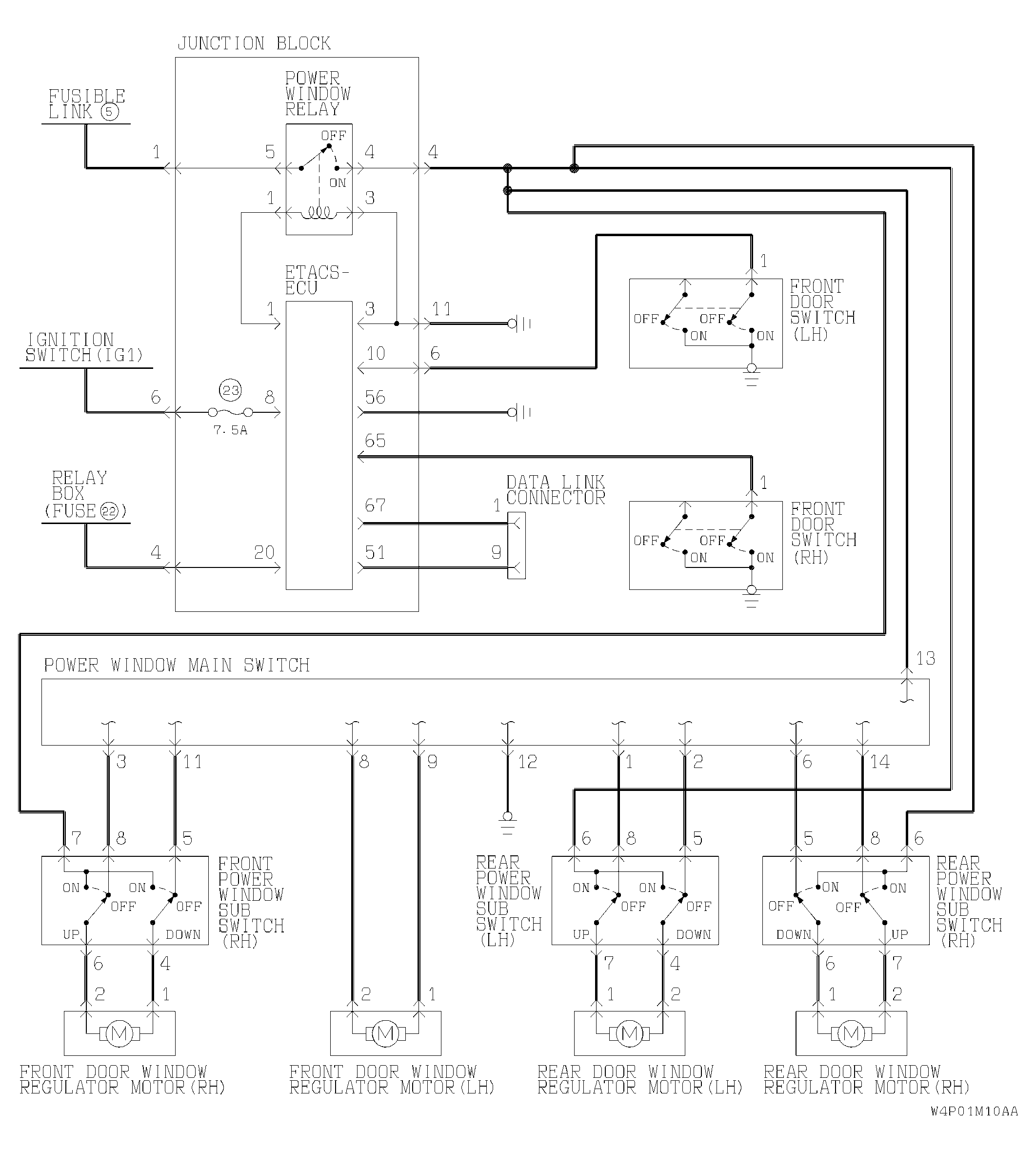

Fig 1: General Circuit Diagram For Power Windows
G04290162Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
