Removal And Installation: Notes

CAUTION:
  • For vehicles with ABS, do not strike the ABS rotors installed to the BJ outer race of driveshaft against other parts when removing or installing the driveshaft. Otherwise the ABS rotors will be damaged.
  • For vehicles with ABS, be careful not to strike the pole piece at the tip of the front ABS sensor with tools during servicing work.

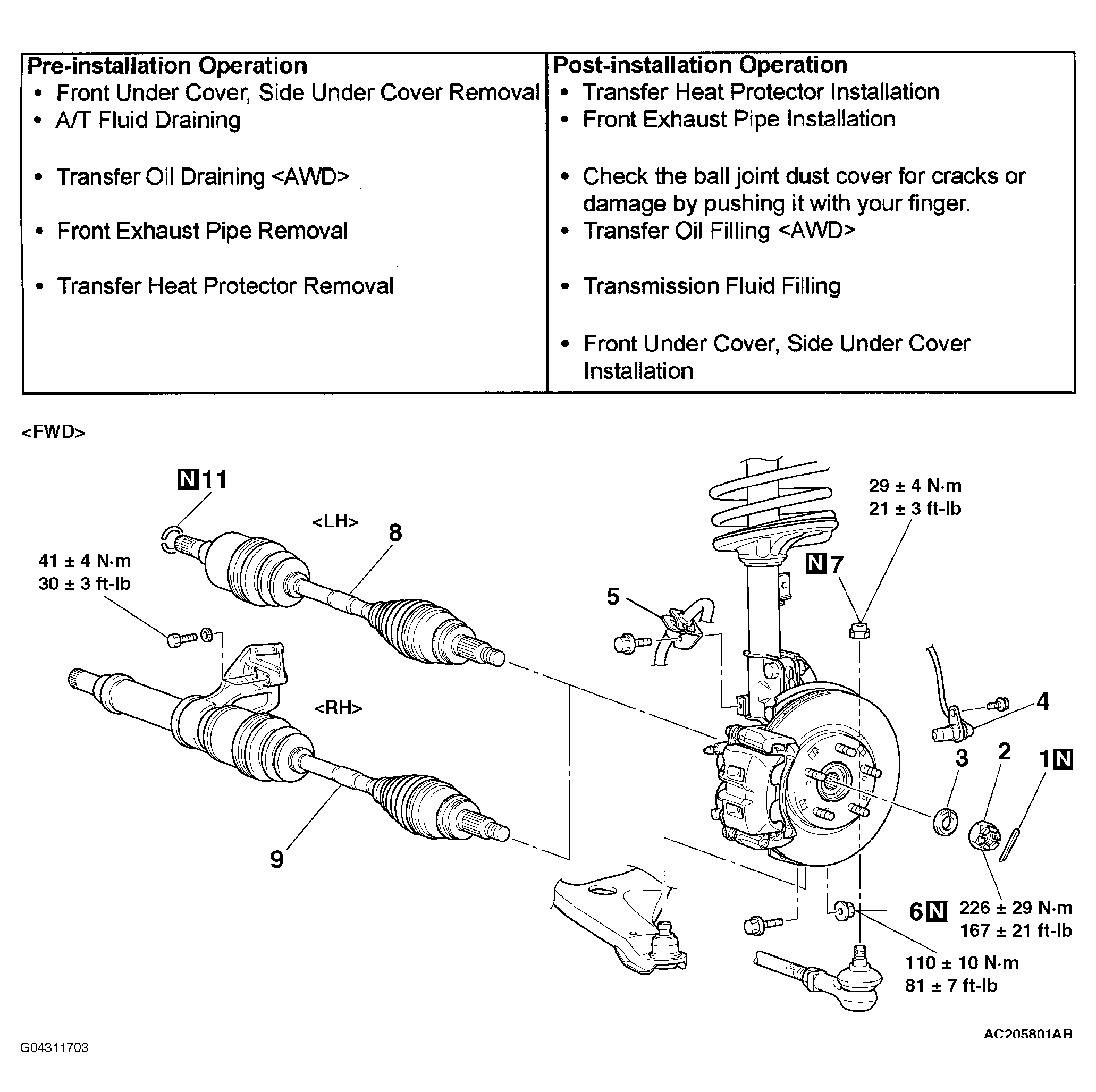

    Fig 1: Removing/Installing Driveshaft Assembly (FWD) With Torque Specifications
    G04311703Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

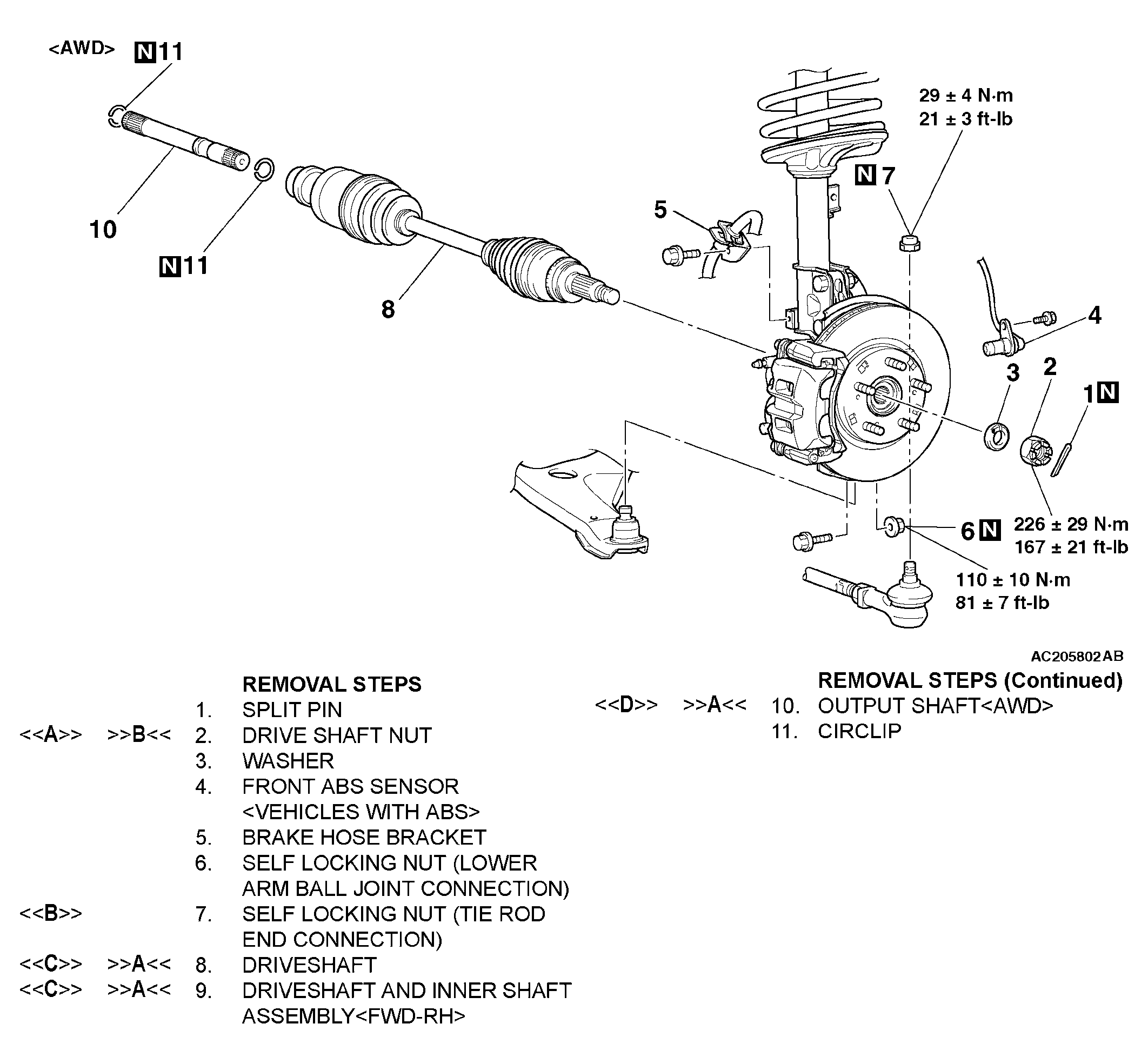

Fig 2: Removing/Installing Driveshaft Assembly (AWD) With Torque Specifications
G04311704Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
