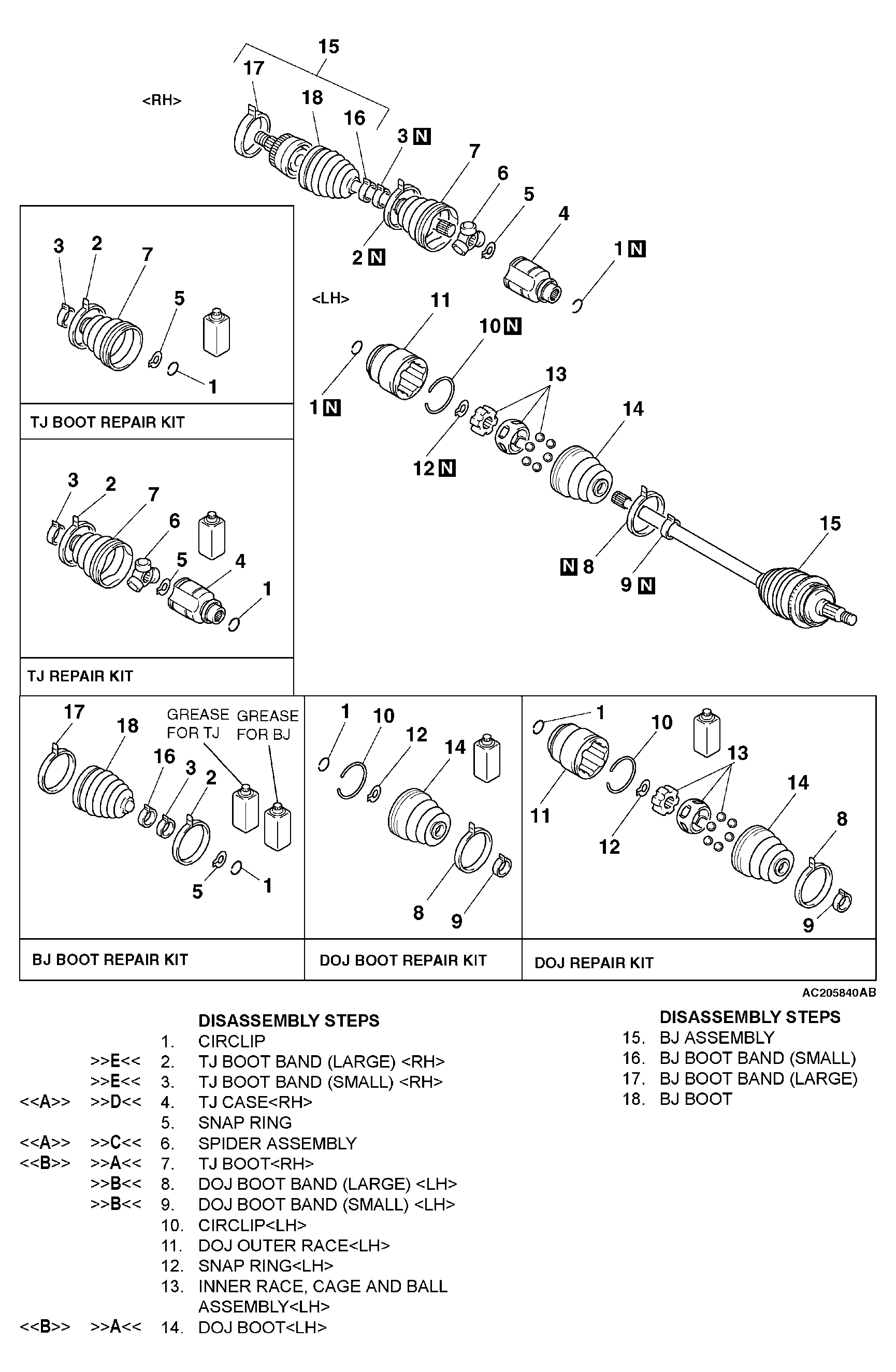

Disassembly And Assembly< AWD >: Notes
CAUTION:
- For vehicles with ABS, be careful not to damage the ABS rotor, which is attached to the BJ outer race during disassembly and assembly.
- Never disassemble the BJ assembly except when replacing the BJ boot.
NOTE:
- BJ: Birfield Joint
- DOJ: Double Offset Point
- TJ: Tripod Joint
- For BJ boot removal and installation, refer to BJ BOOT (RESIN BOOT) REPLACEMENT
