Special Tool

SPECIAL TOOL SPECIFICATION

TOOL TOOL NUMBER AND NAME SUPER SESSION APPLICATION

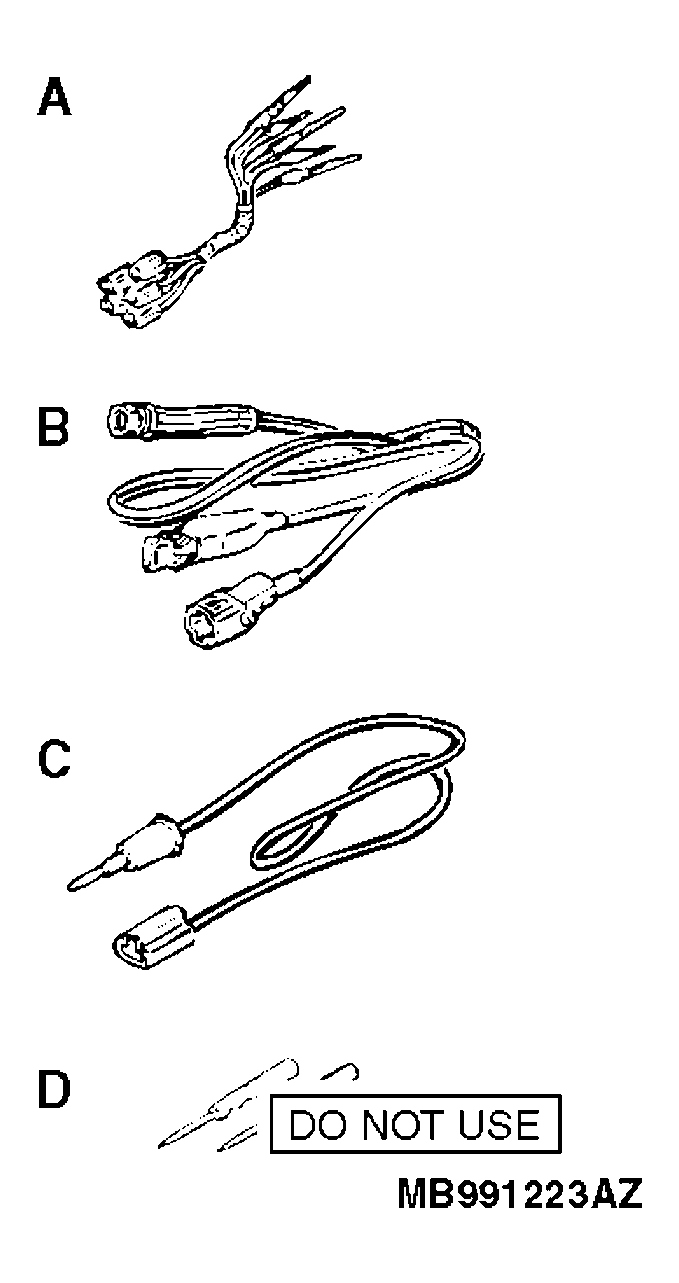

G04312776
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adaptor
  4. Probe
 General service tools Making voltage and resistance measurement during troubleshooting
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G04312777
 MB992006
Extra fine probe		 General service tool Making voltage and resistance measurement during troubleshooting
