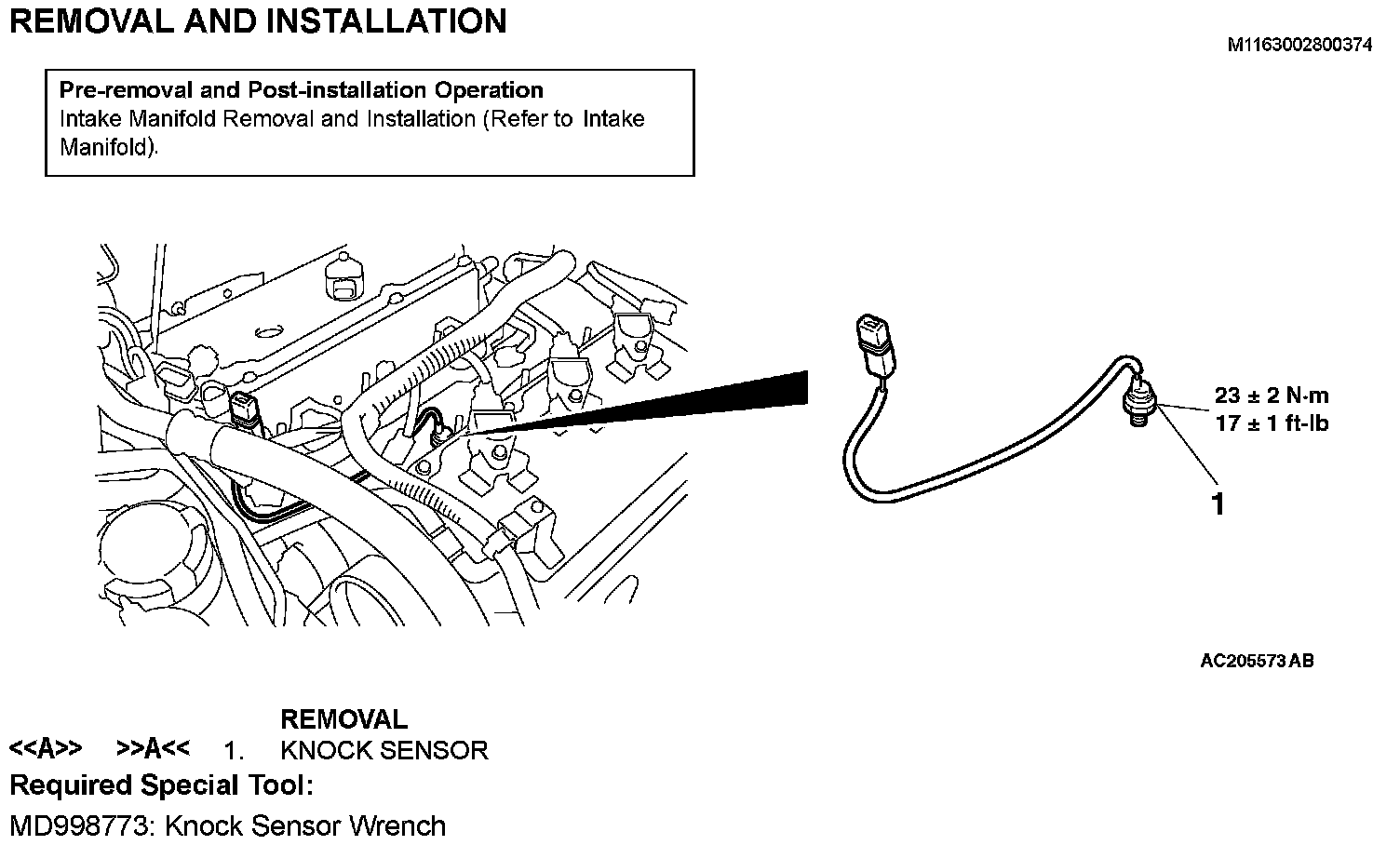

Removal and Installation

KNOCK SENSOR




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

<> KNOCK SENSOR REMOVAL




Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT

>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.
