Exploded Views

FRONT BODY

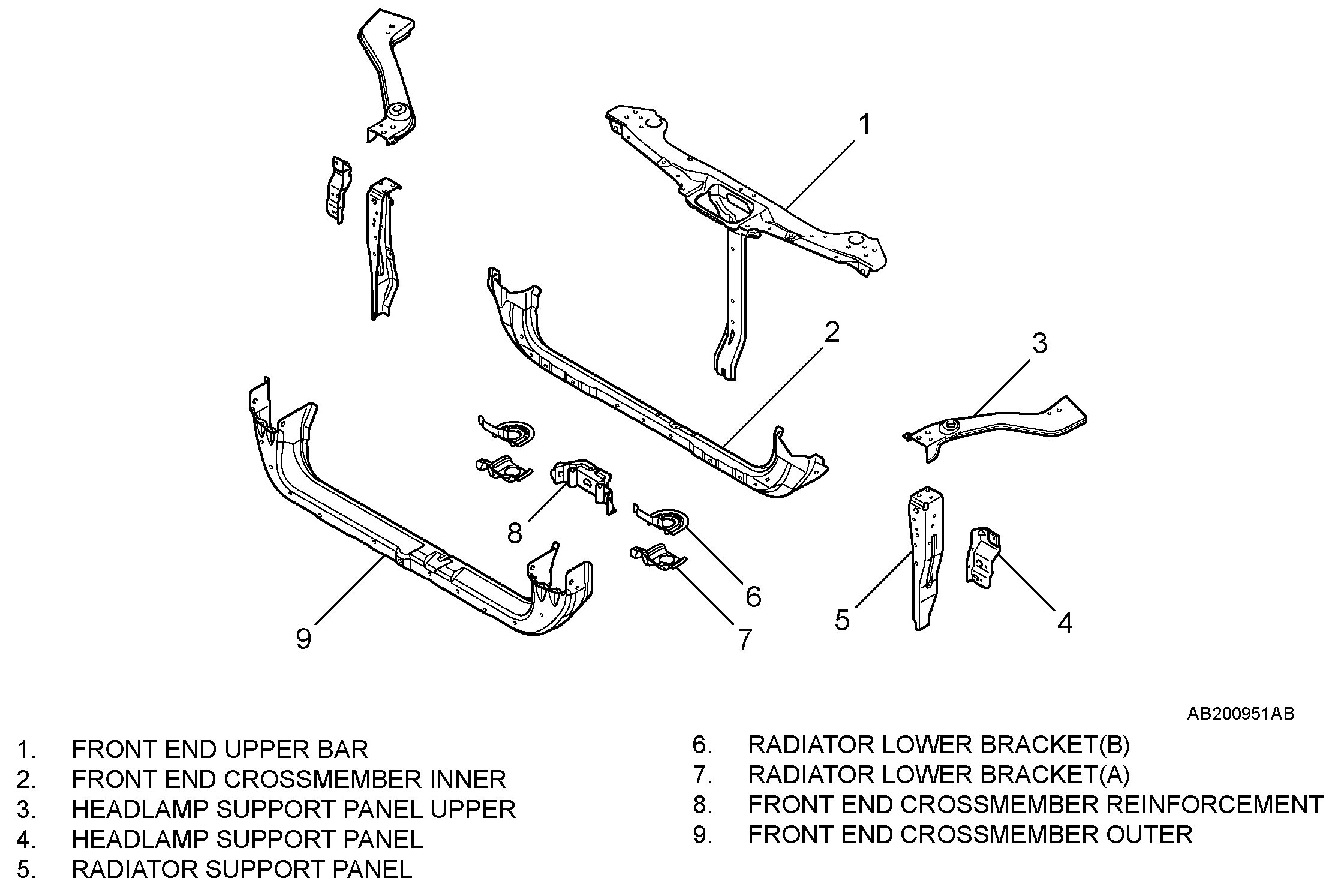

HEADLAMP SUPPORT




The headlamp support has divided structure to improve workability when replacing the panel. And the bolting type front end upper bar is used to improve maintainability.
