Removal And Installation

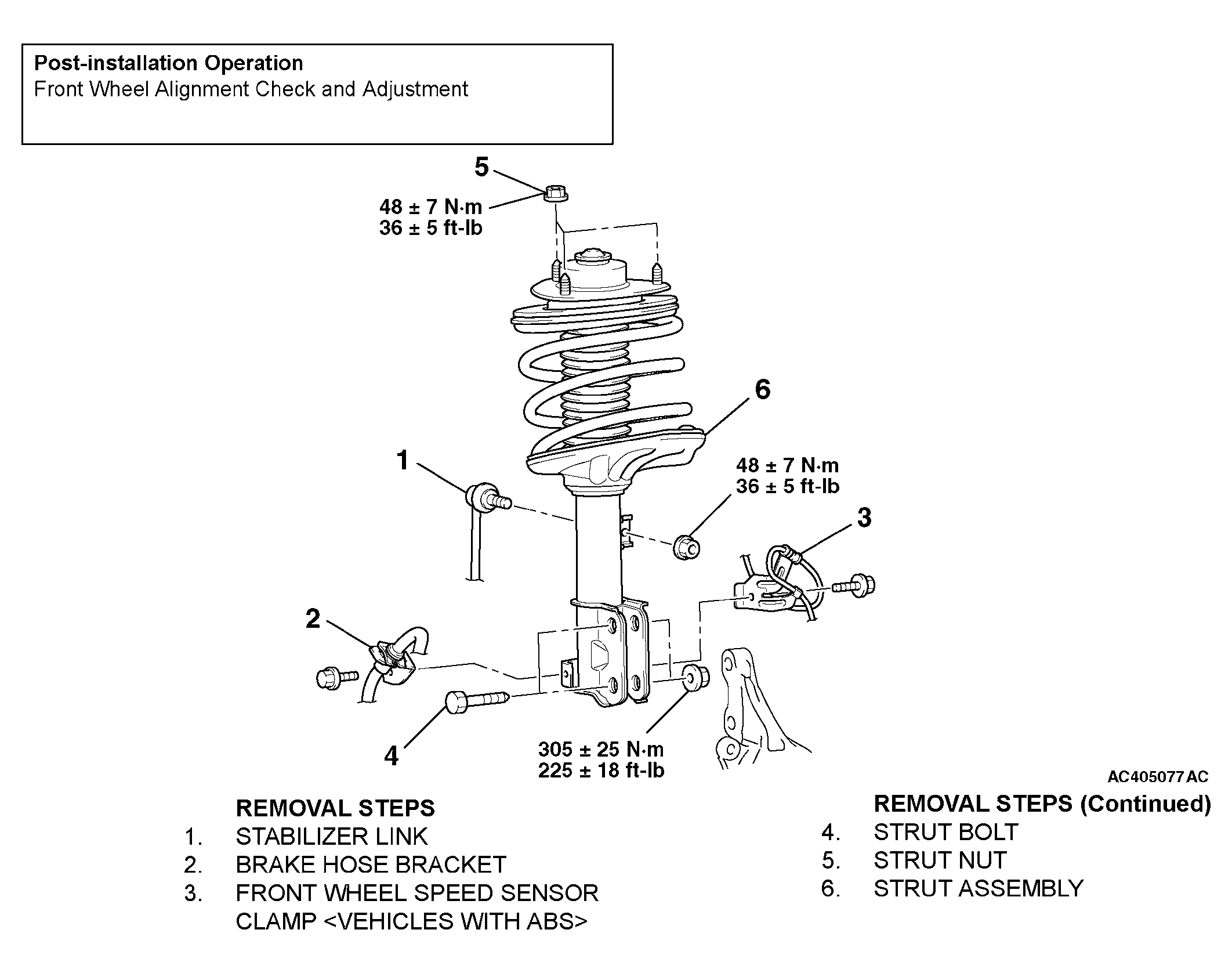

Fig 1: Removing/Installing Strut Assembly With Torque Specifications
G04231830Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
