Fan Control Relay Continuity Check

ENGINE COOLANT CONCENTRATION TEST

BATTERY VOLTAGE TERMINAL NO. TO BE CONNECTED TO TESTER CONTINUITY TEST RESULTS
Not applied 4 - 2 Open circuit
Connect terminal No.3 and battery (-) terminal.
Connect terminal No.1 and battery (+) terminal.		 4 - 2 Less than 2 ohms

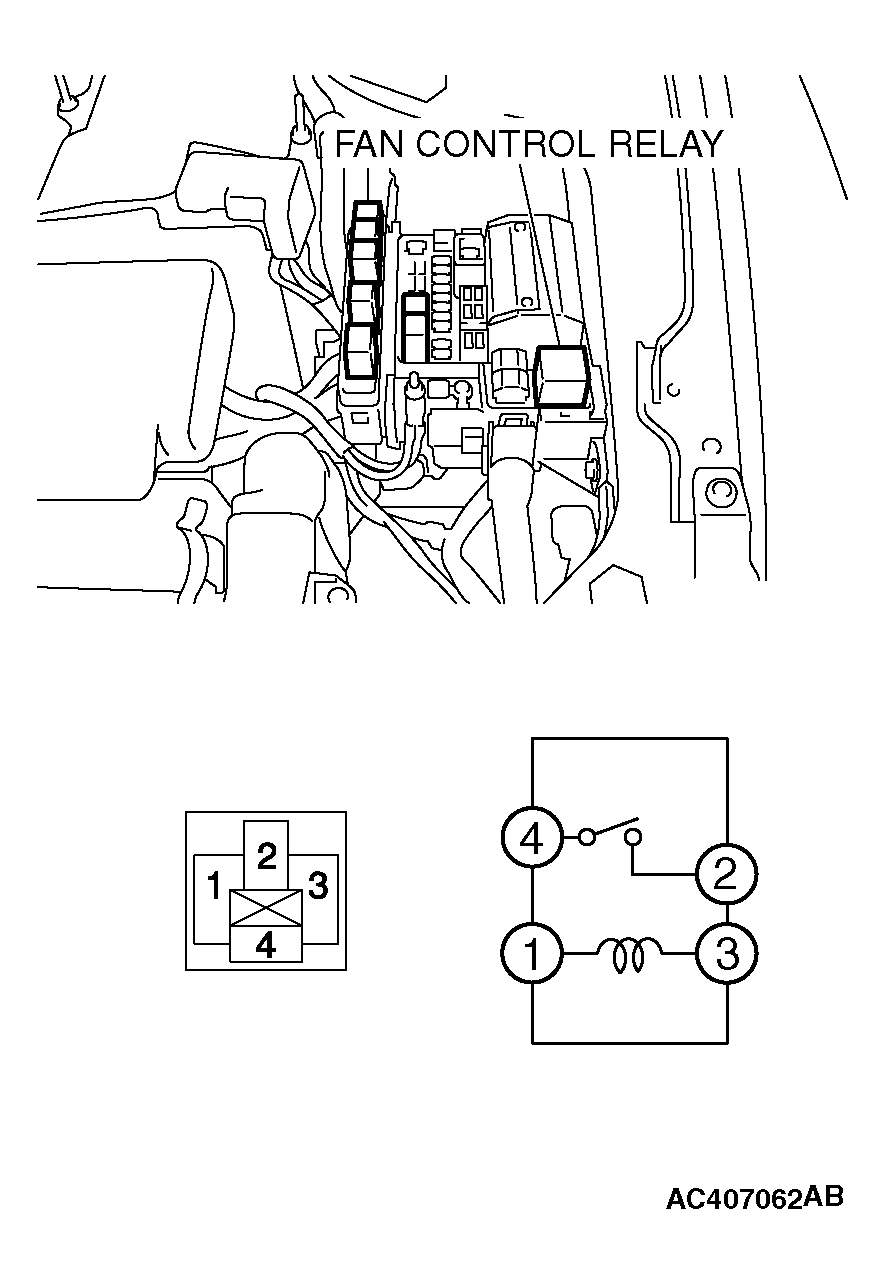

Fig 1: Identifying Fan Control Relay Terminals
G04236981Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
