Removal And Installation < 3.8L Engine >: Notes

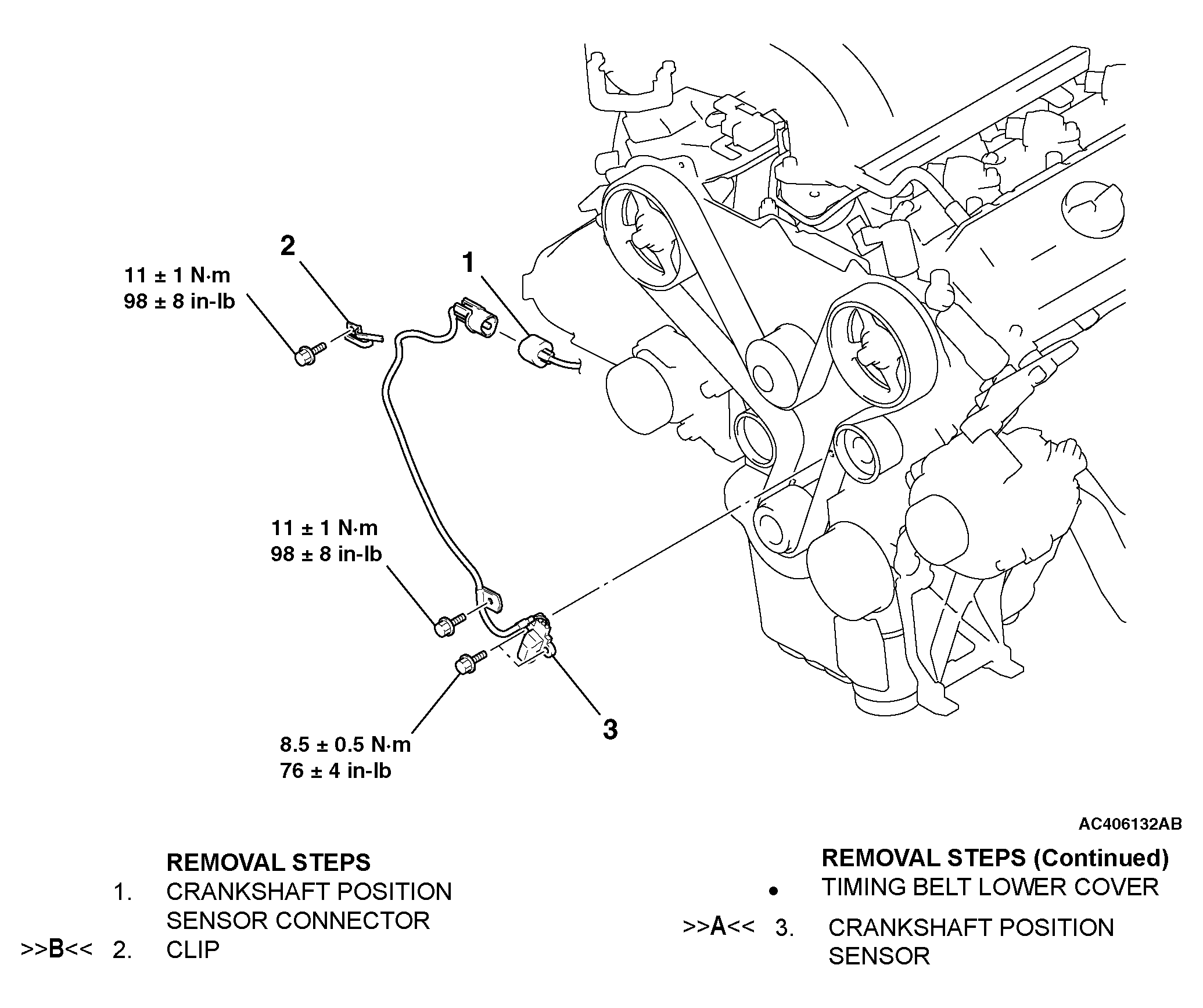

Fig 1: Removing/Installing Crankshaft Position Sensor With Torque Specifications (3.8L Engine)
G04237134Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
