Removal And Installation: Notes

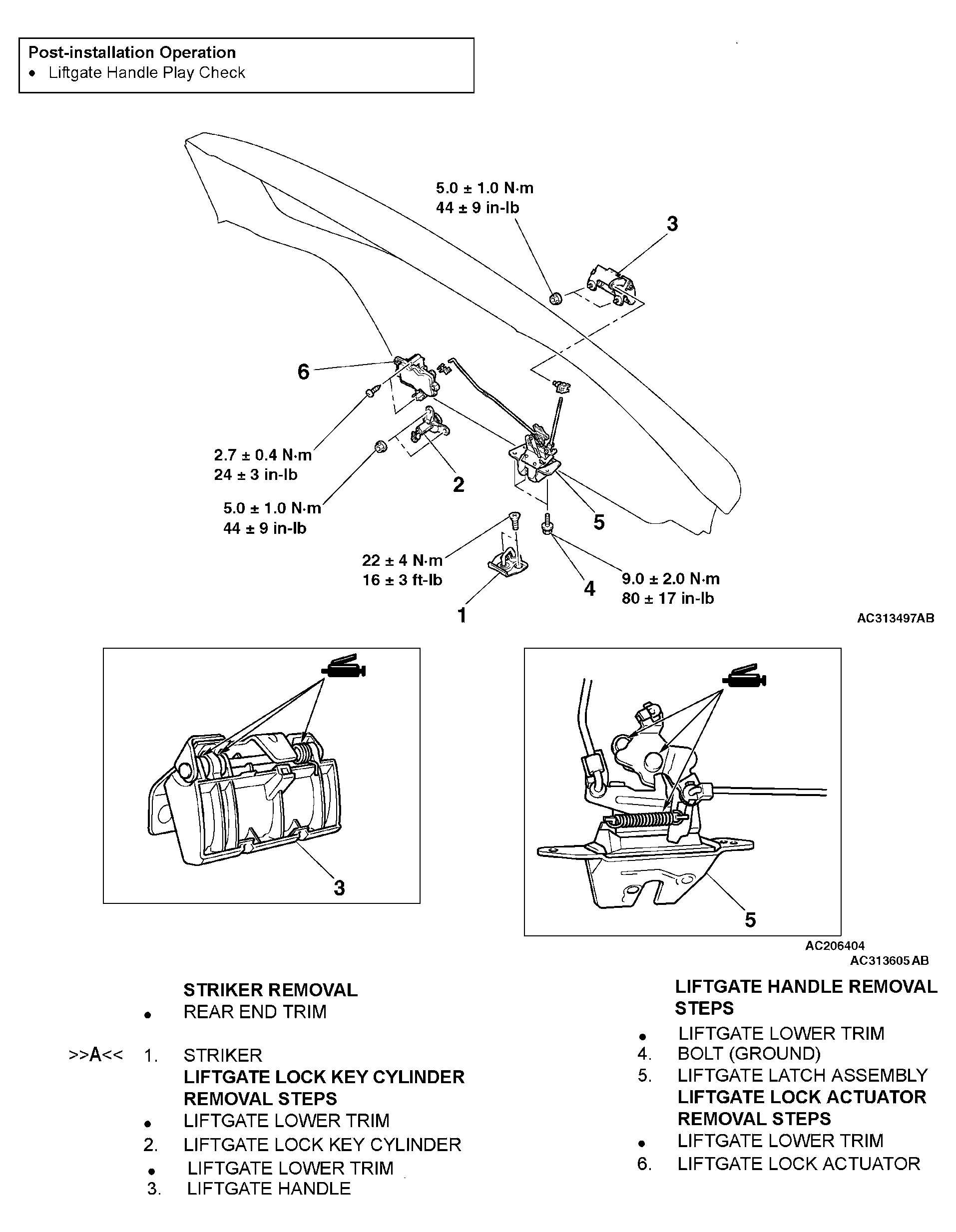

Fig 1: Identifying Liftgate Handle And Latch Removal Steps
G04304130Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
