Air Bag Modules

  1. Check the pad cover for dents, cracks or deformation.
  2. Check the connector for damage, terminals deformities, and the harness for binding.
  3. Check the air bag inflator case for dents, cracks or deformities.
  4. Install the air bag module (driver's side) to the steering wheel to check fit or alignment with the steering wheel.
  5. Install the air bag module (front passenger's side) to the instrument panel and front deck crossmember to check fit or alignment.

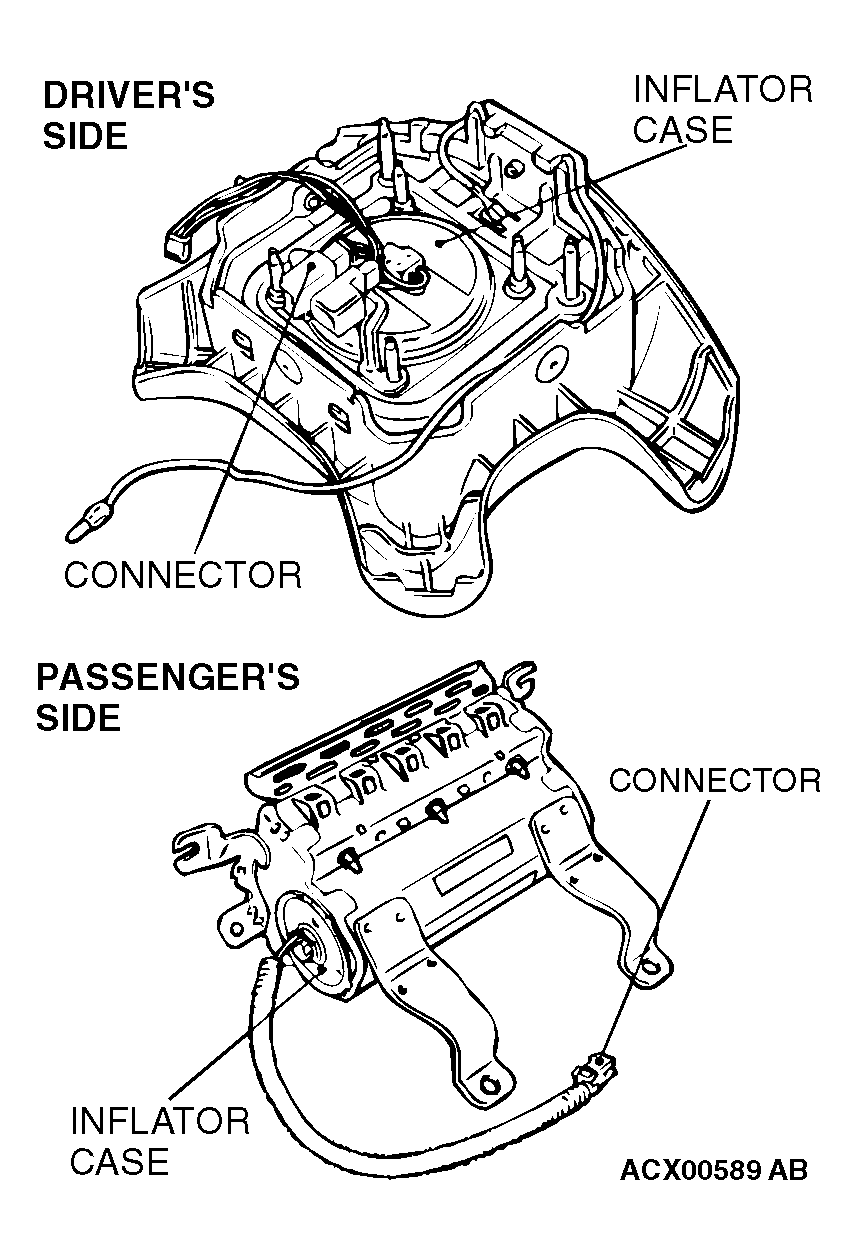

    Fig 1: Checking Air Bag Inflator Case For Dents, Cracks Or Deformities
    G04268242Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
