Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

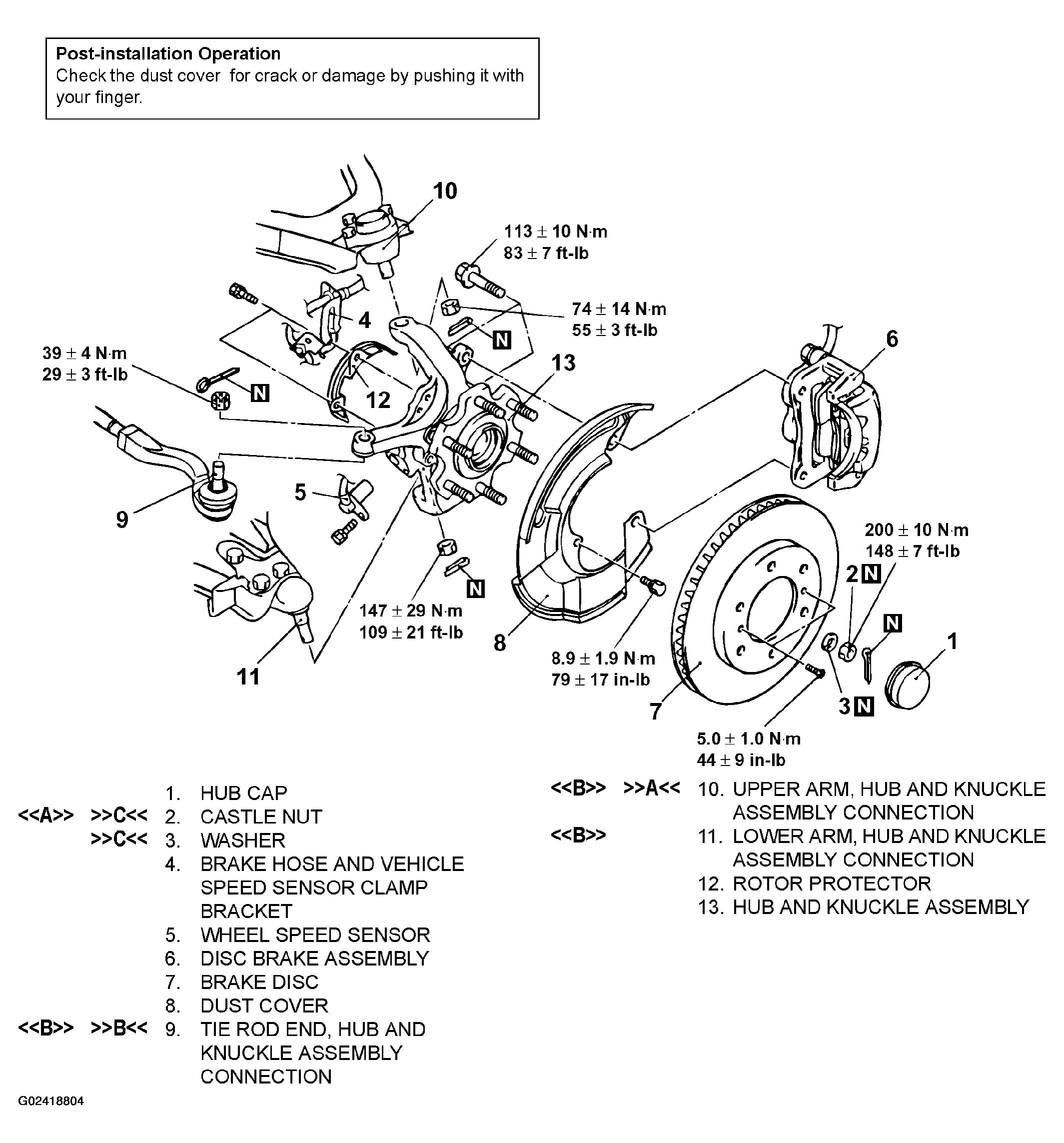

Fig 1: Removing And Installing Hub And Knuckle Assembly
G02418804Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
