DTC 11: Transponder Communication System or Radio Interference of Encrypted Code: Notes

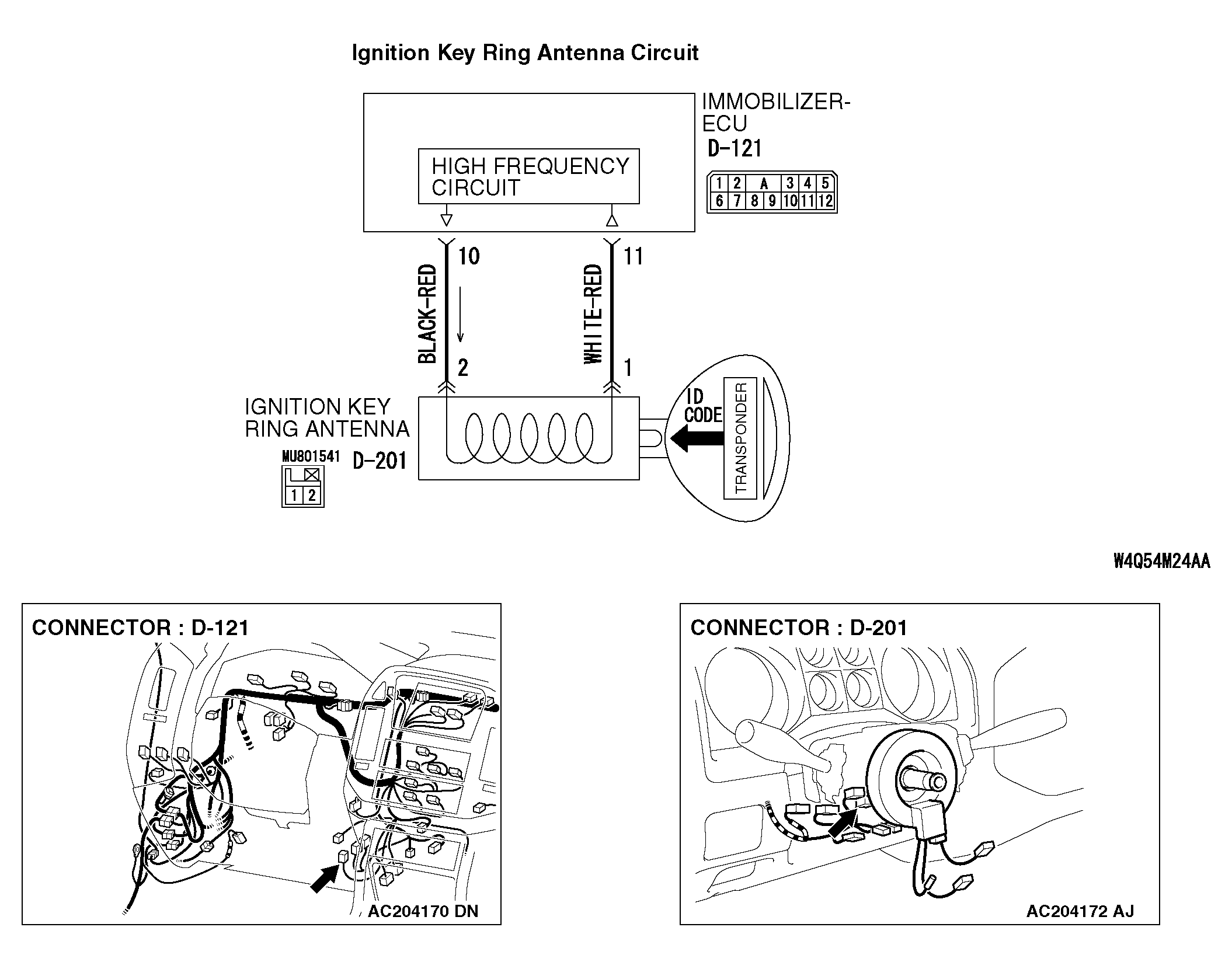

Fig 1: Ignition Key Ring Antenna - Circuit Diagram
G04268315Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
