Data List Reference Table

This document has been updated per TSB# 09-52b-001.

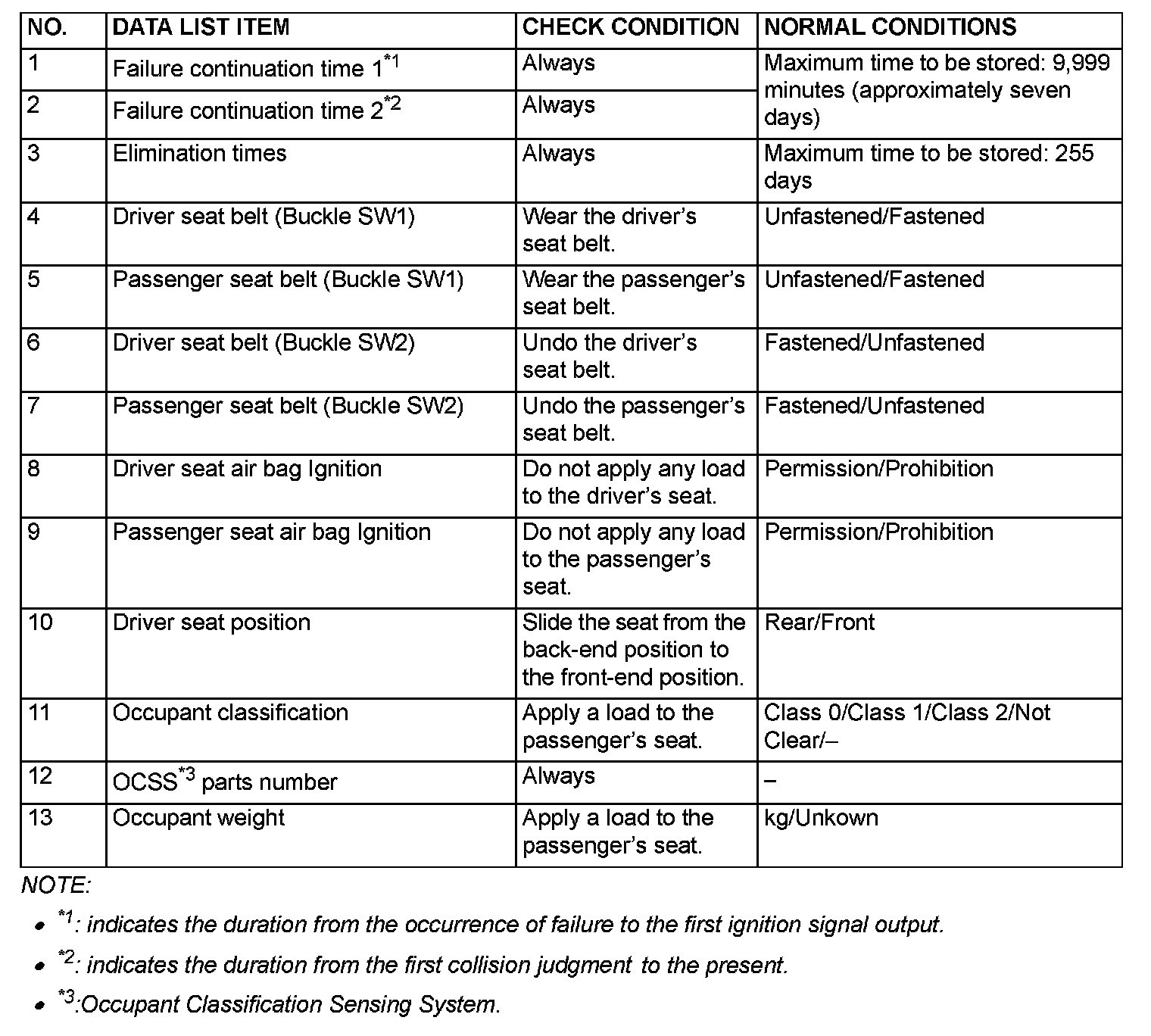

DATA LIST REFERENCE TABLE

Data List Reference Table:




The given items can be read by the scan tool from the SRS-ECU input data.
