Initial Inspection and Diagnostic Overview
>>
Diagnostic Troubleshooting Flow
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

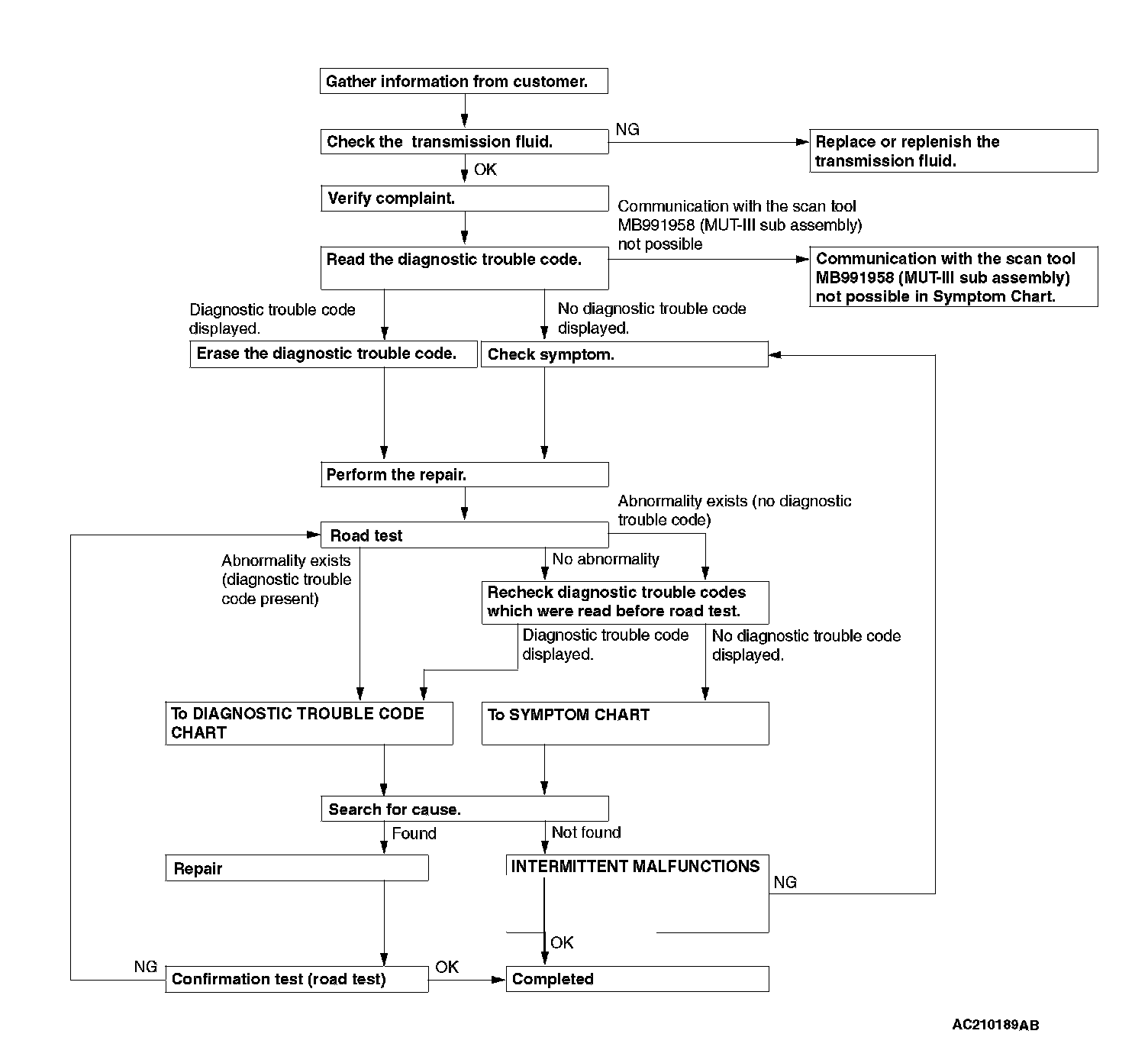

Diagnostic Troubleshooting Flow
