>>B<< Needle Bearing Installation

  1. Check the installation direction of the needle bearing.
  2. Press fit the needle bearing until it is flush with the case.

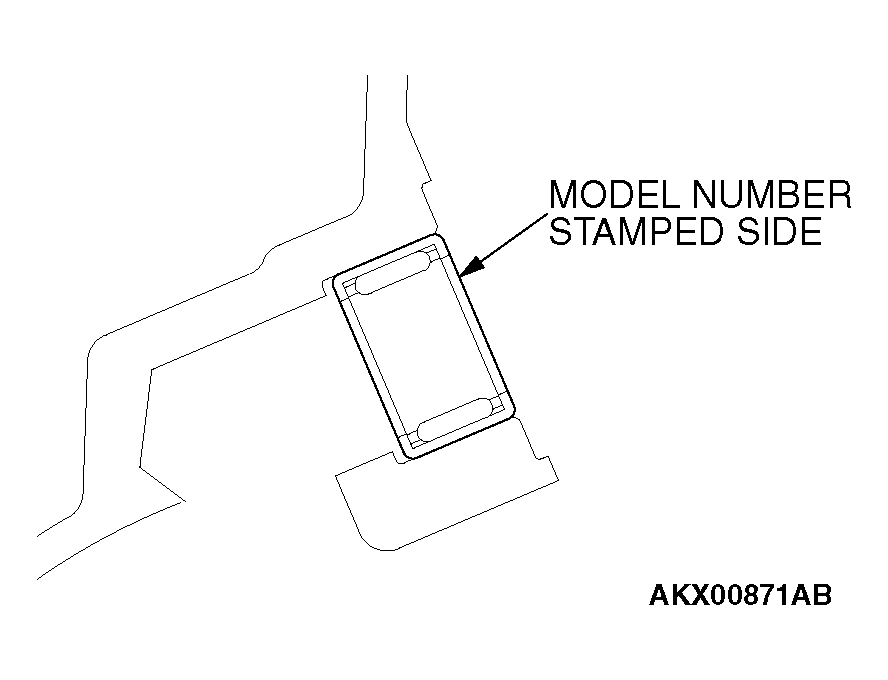

    Fig 1: Installing Needle Bearing
    G04275907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
