>>F<< Sealing Cap Installation

  1. Using special tools MB990927 and MB990938, press install the sealing cap onto the case.

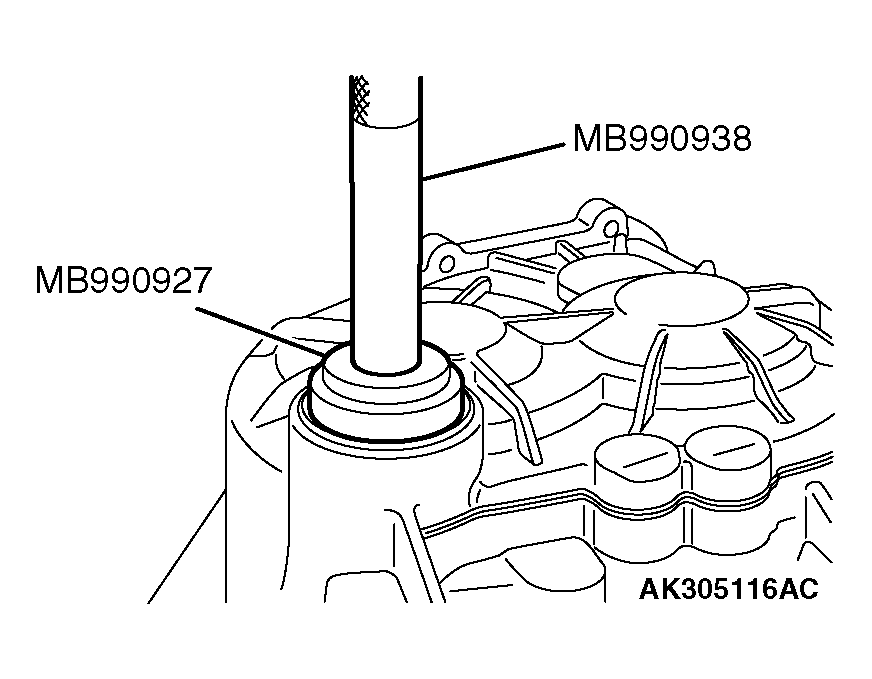

    Fig 1: Pressing Install Sealing Cap Onto Case
    G04275809Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Evenly press the sealing cap so it is fully seated and not at an angle.
    Fig 2: Pressing Sealing Cap
    G04275810Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
