Ball Joint Dust Cover Replacement

Required Special Tool:

If the dust cover is damaged accidentally during service work, replace the dust cover as follows:

  1. Remove the dust cover.
  2. Apply multipurpose grease to the lip and inside of the dust cover.
  3. Using special tool MB990800, press the dust cover until it contacts the lower arm assembly.
  4. Press the dust cover with your finger to check that there are no cracks or damage in the dust cover.

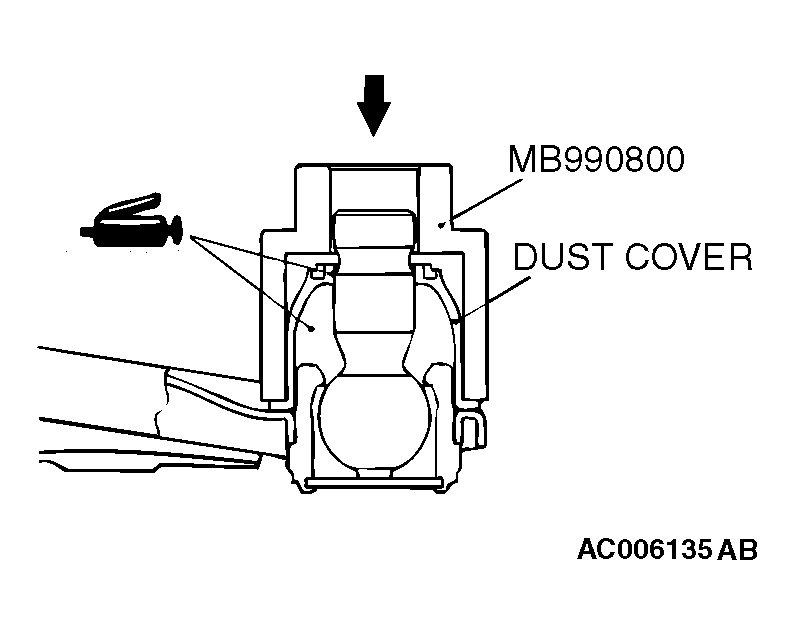

    Fig 1: Pressing Dust Cover
    G04297211Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
