Configuration Diagrams

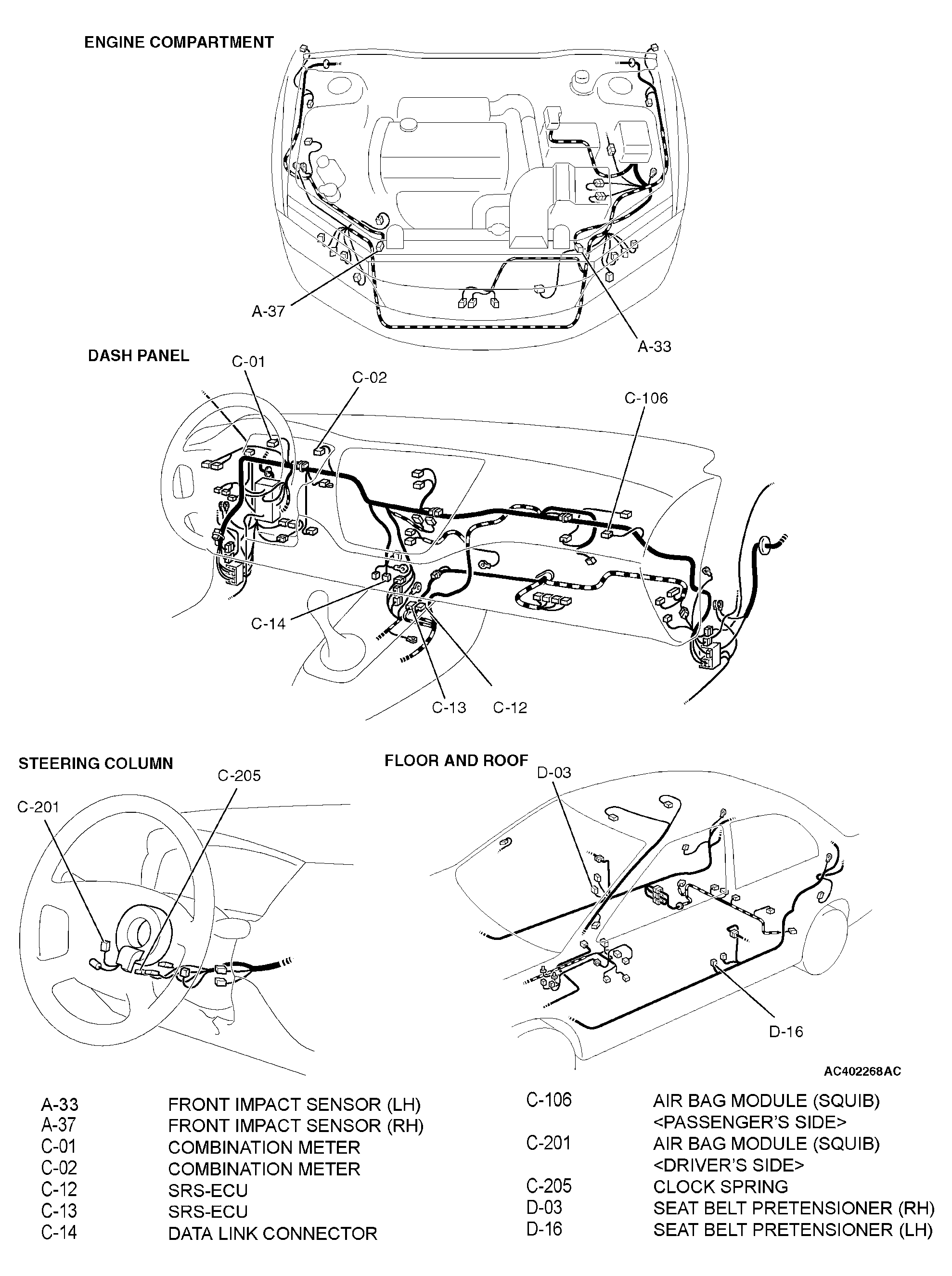

Fig 1: Configuration Diagrams
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
