Disassembly And Assembly

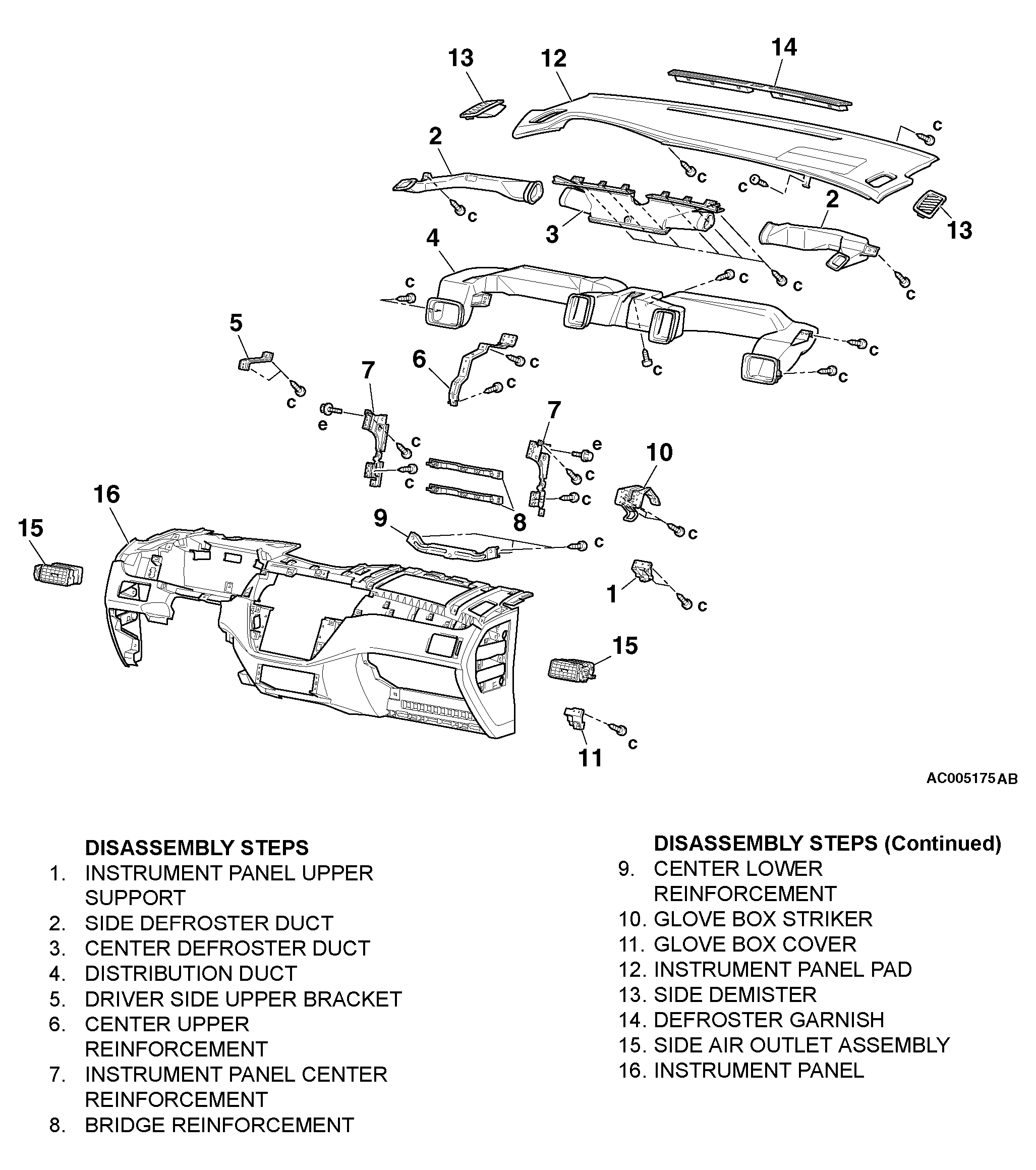

Fig 1: Disassembling And Assembling Instrument Panel Assembly
G04297849Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
