< Fuel Pipe And Gauge Assembly >

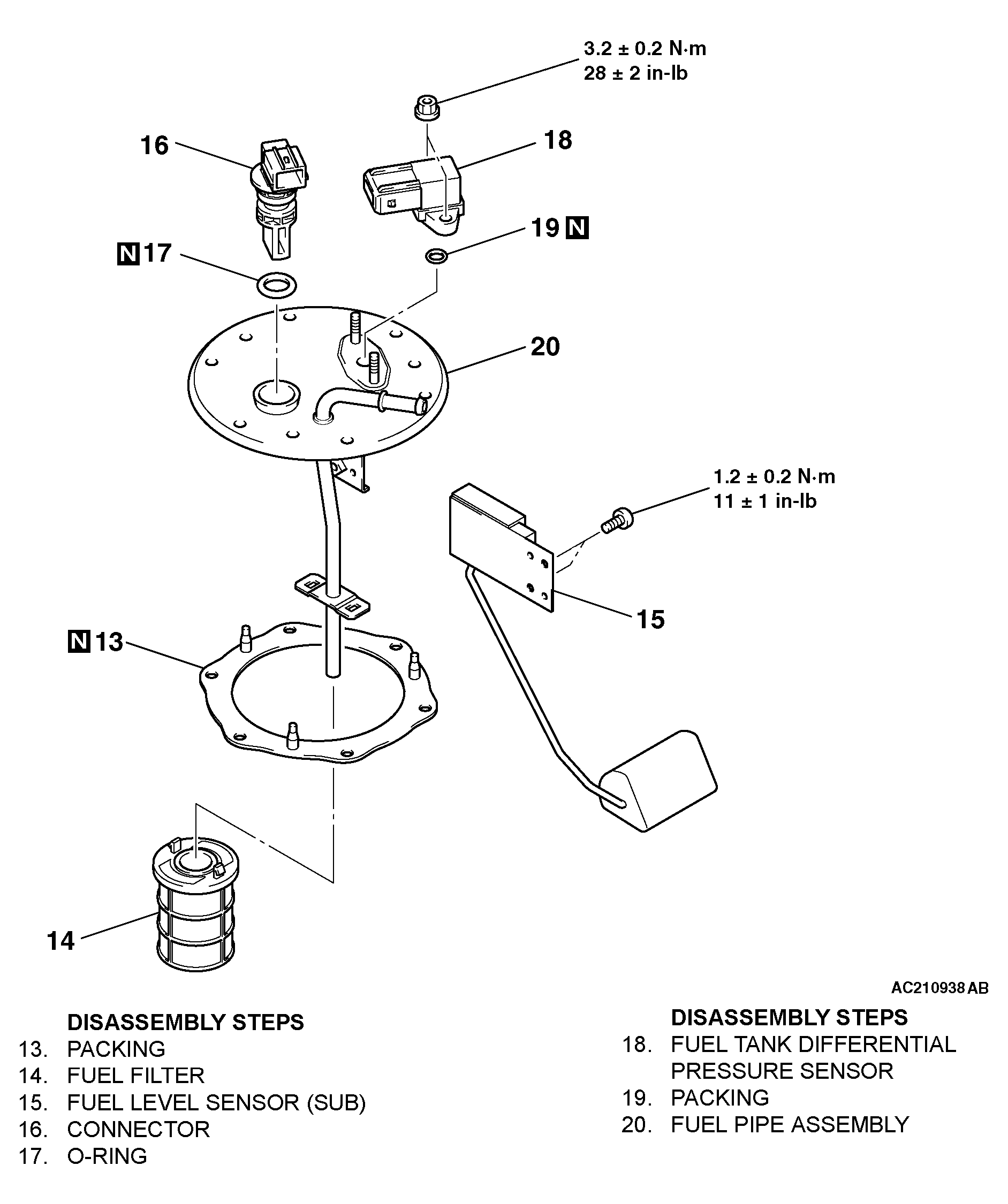

Fig 1: Exploded View Of Fuel Pipe And Gauge Assembly
G04295974Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
