>>I<< Speedometer Gear Installation

Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4) to the O-ring of the speedometer gear. Install into the transaxle housing.
Tighten the bolt to specified torque.
Tightening torque: 4.0 +/- 1.0 N.m (35 +/- 9 in-lb)

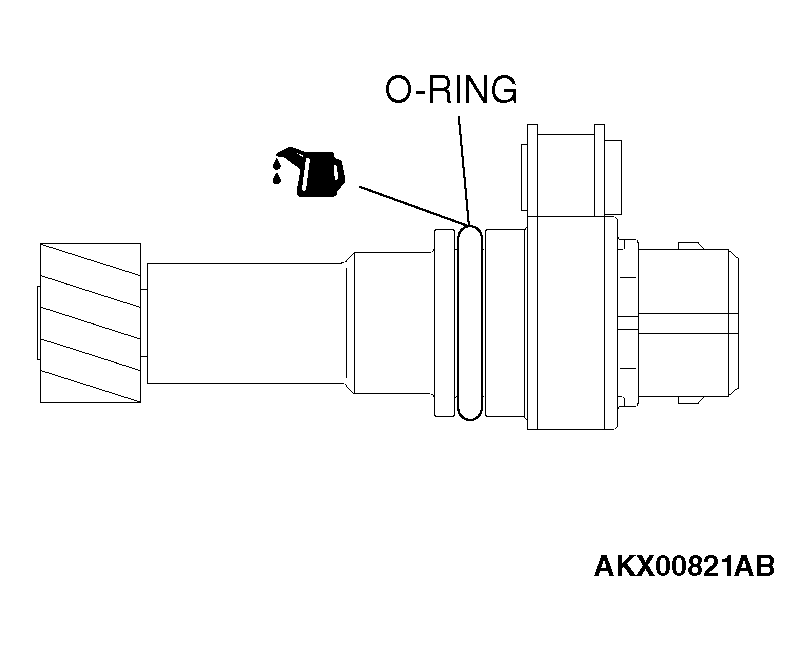

Fig 1: Applying Gear Oil O-Ring Of Speedometer Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
