Disassembly And Assembly: Notes

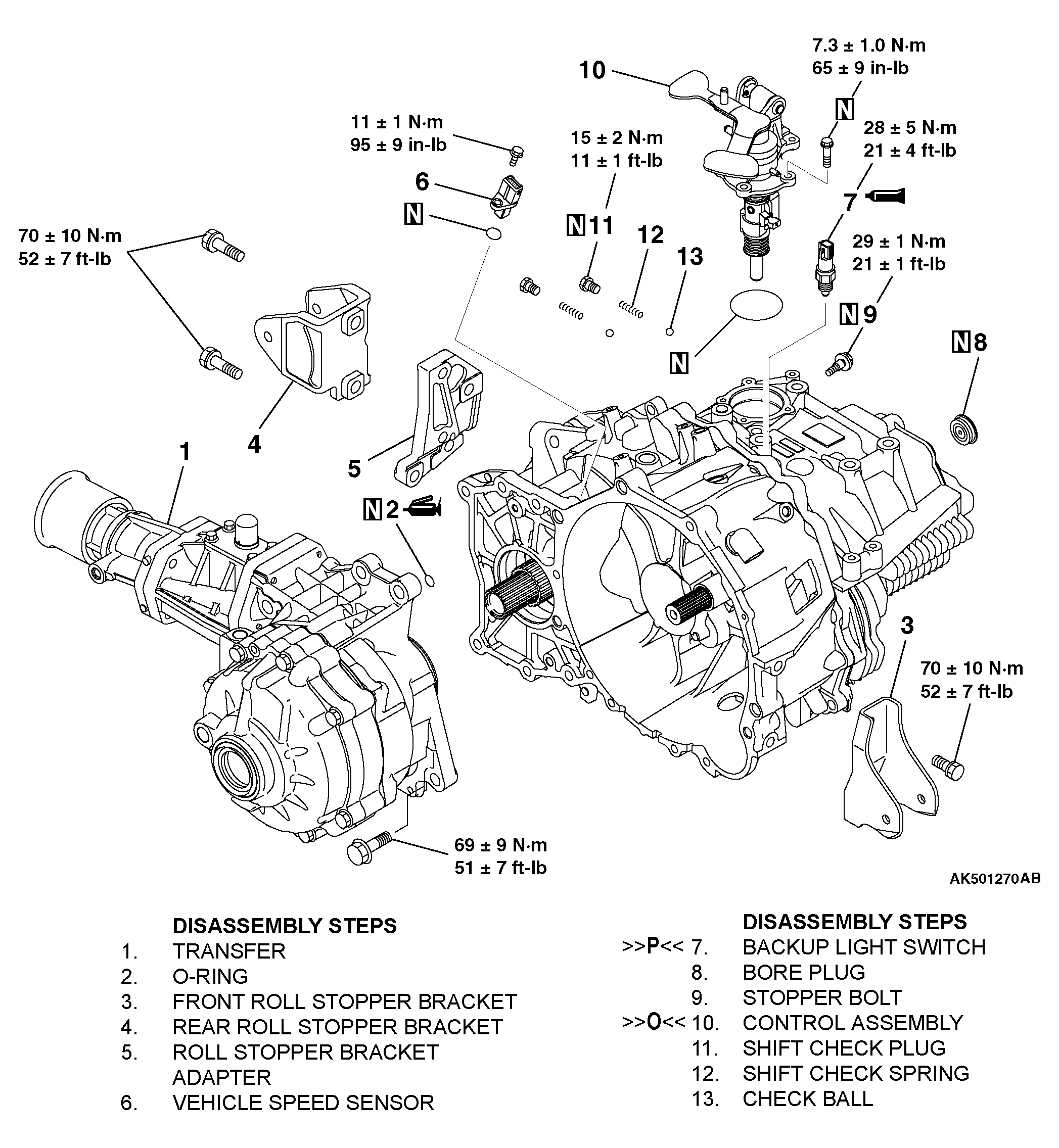

Fig 1: Disassembling\Assembling Transaxle (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

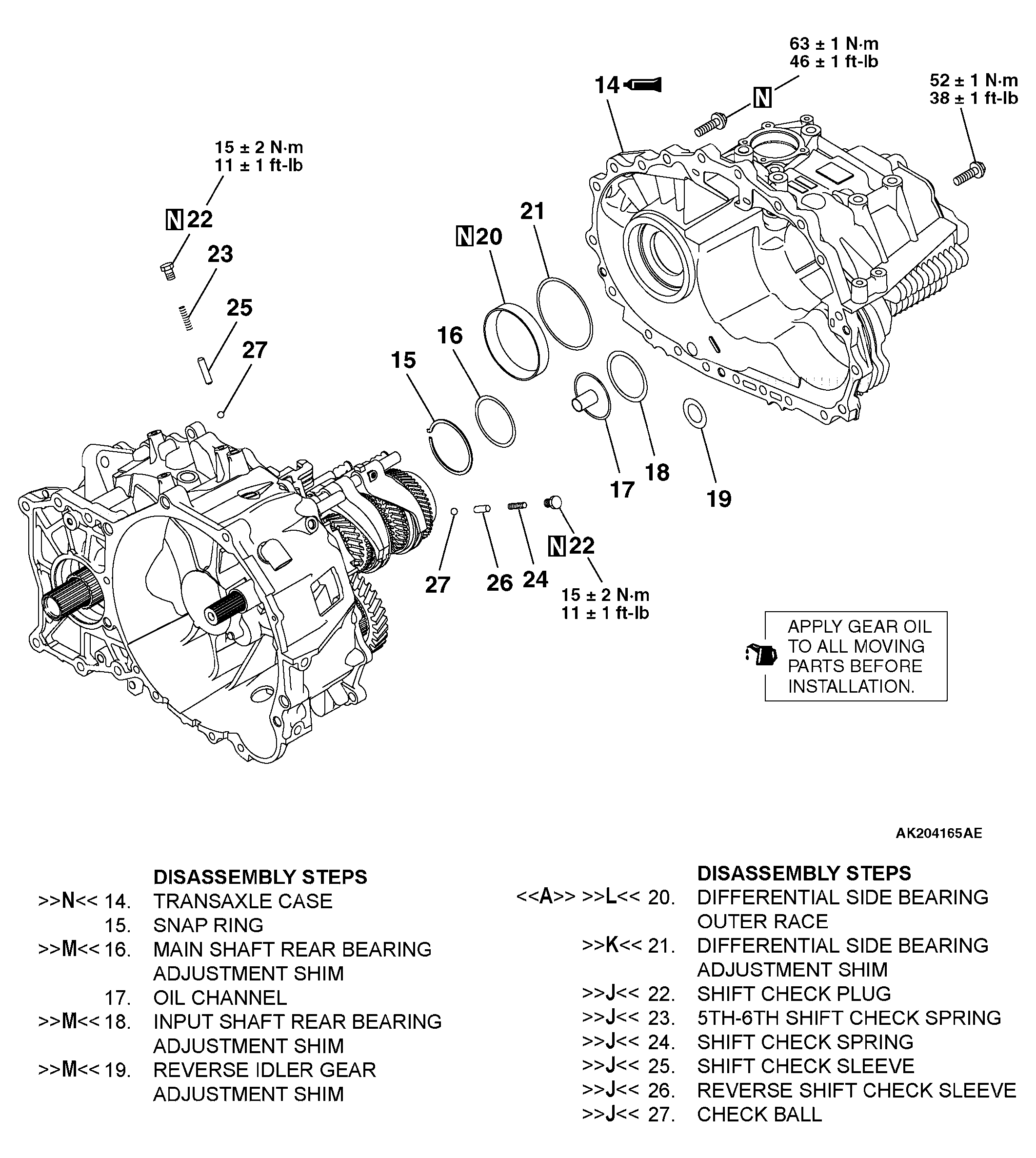

Fig 2: Disassembling\Assembling Transaxle (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

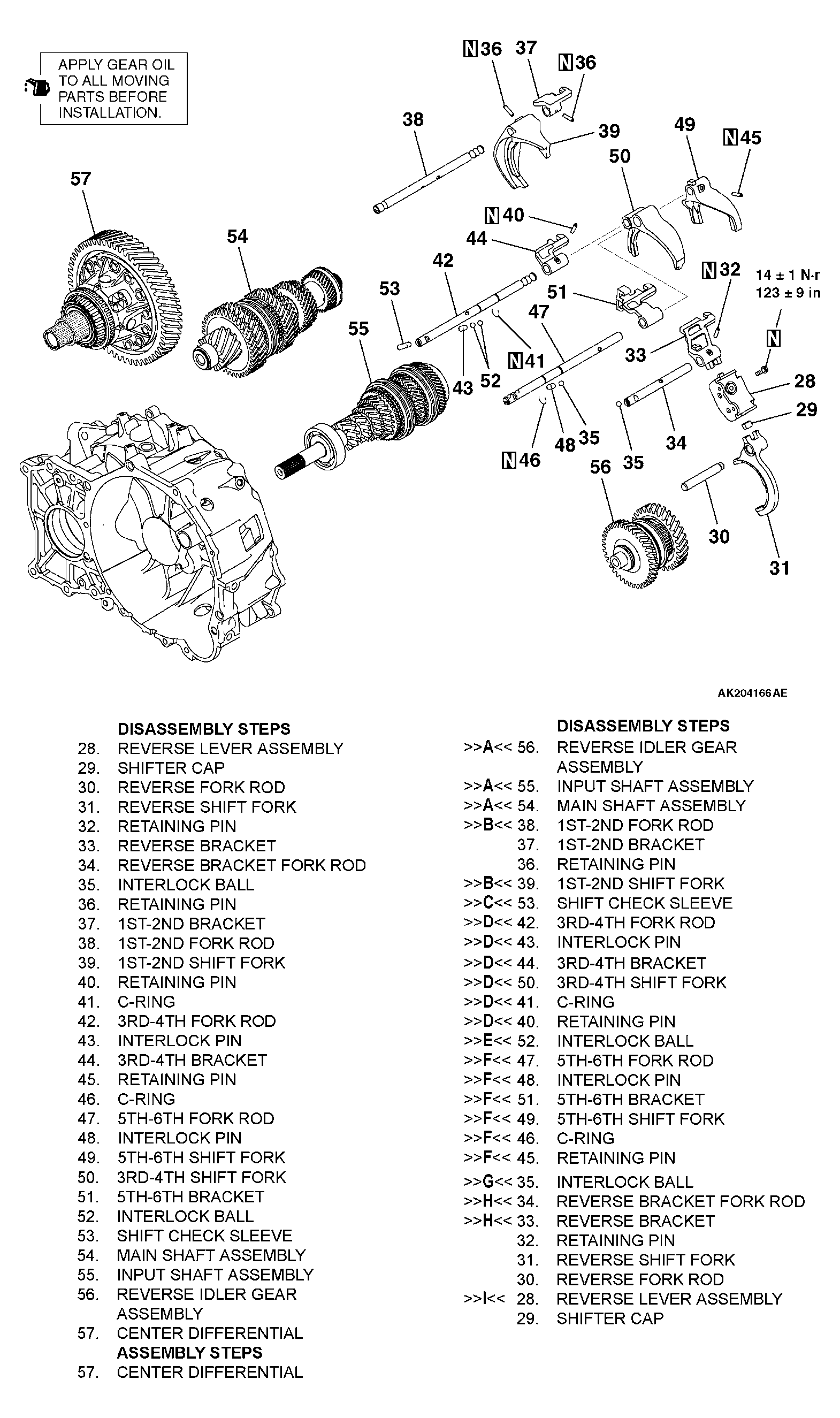

Fig 3: Disassembling\Assembling Transaxle (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990810: Side bearing puller
• MB991966: Bearing outer race installer
• MB991967: Claw
• MB991968: Bridge
• MB991969: Adjustment adapter
