Data List Reference Table

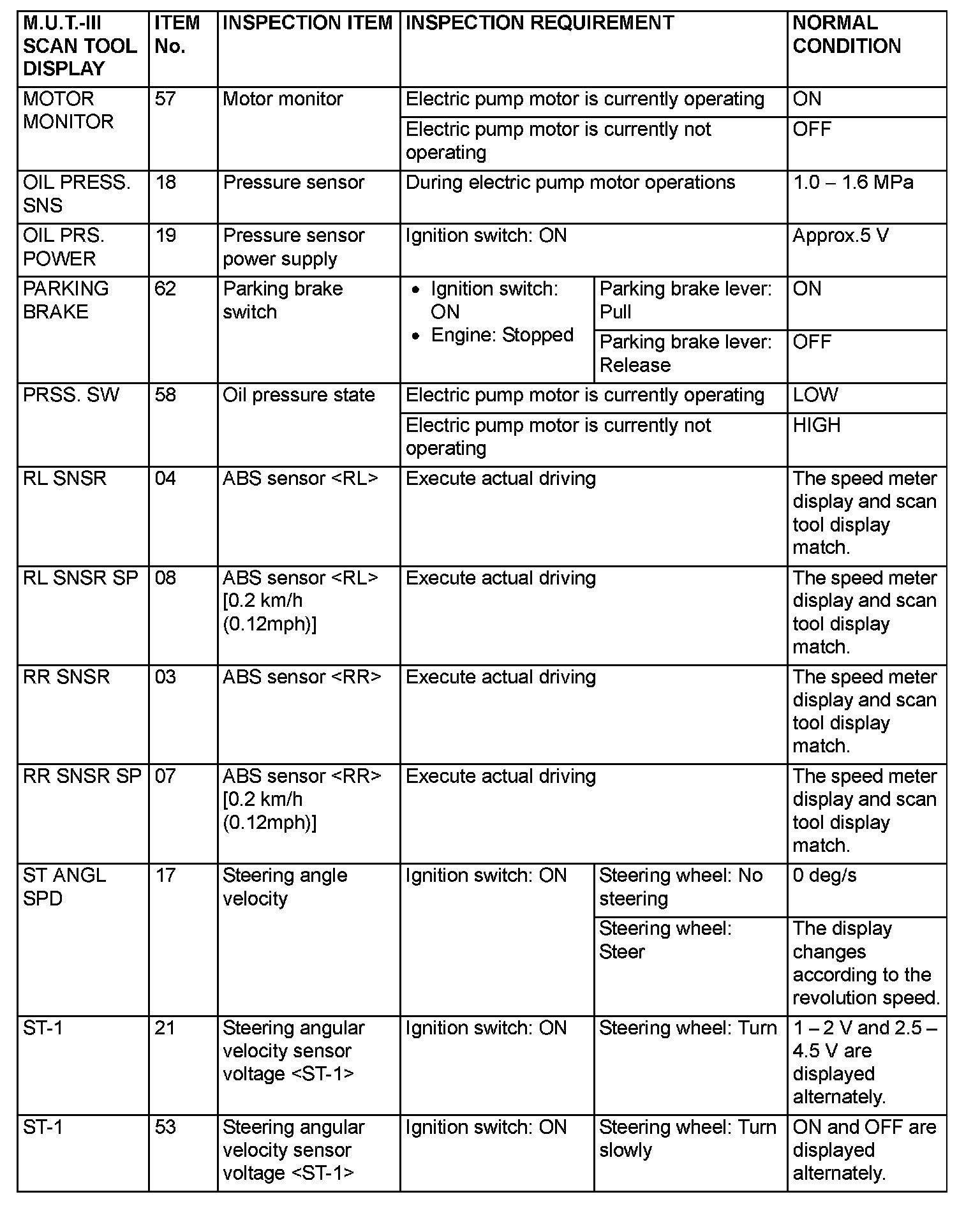

DATA LIST REFERENCE TABLE (PART 1):

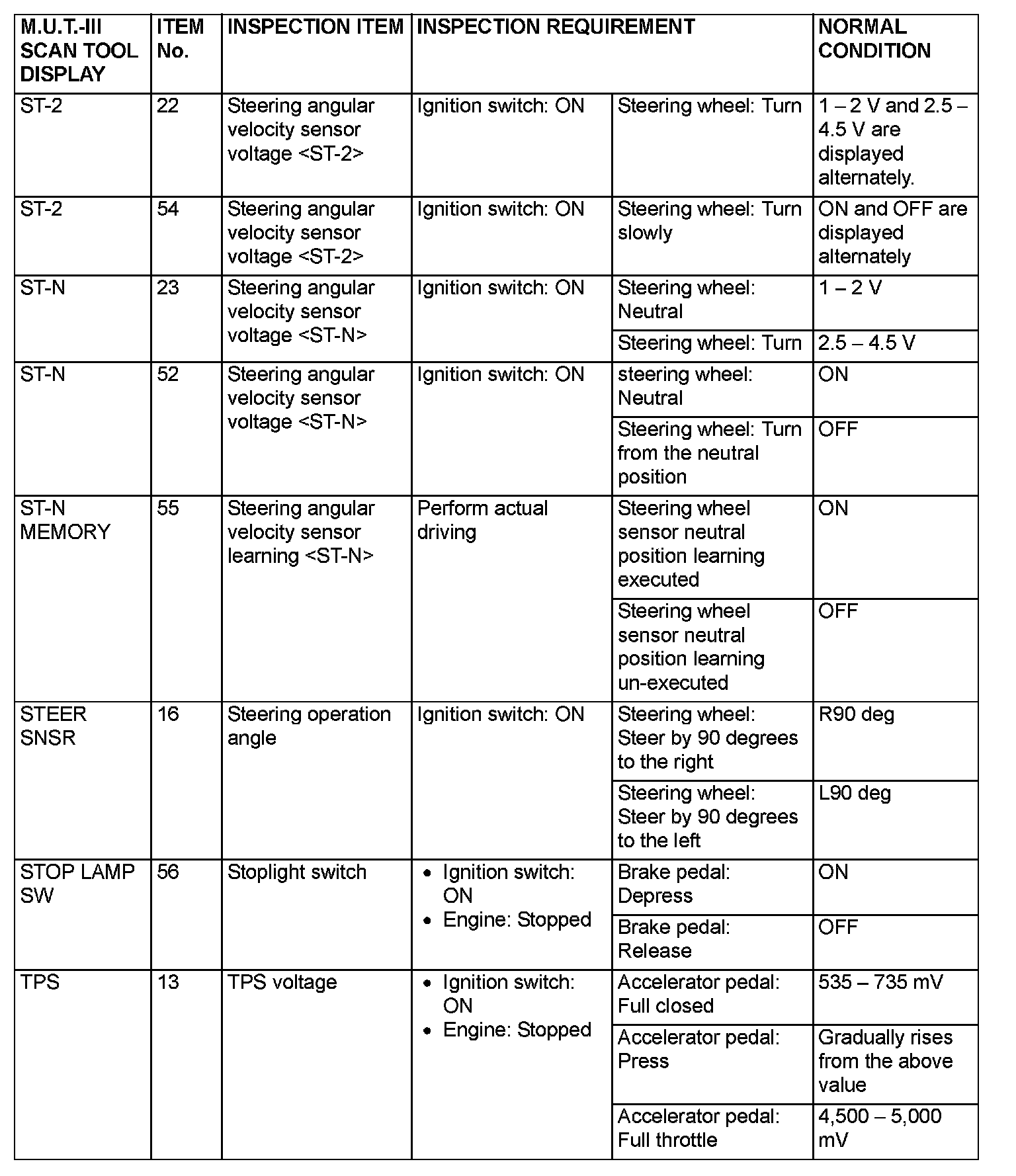

DATA LIST REFERENCE TABLE (PART 2):

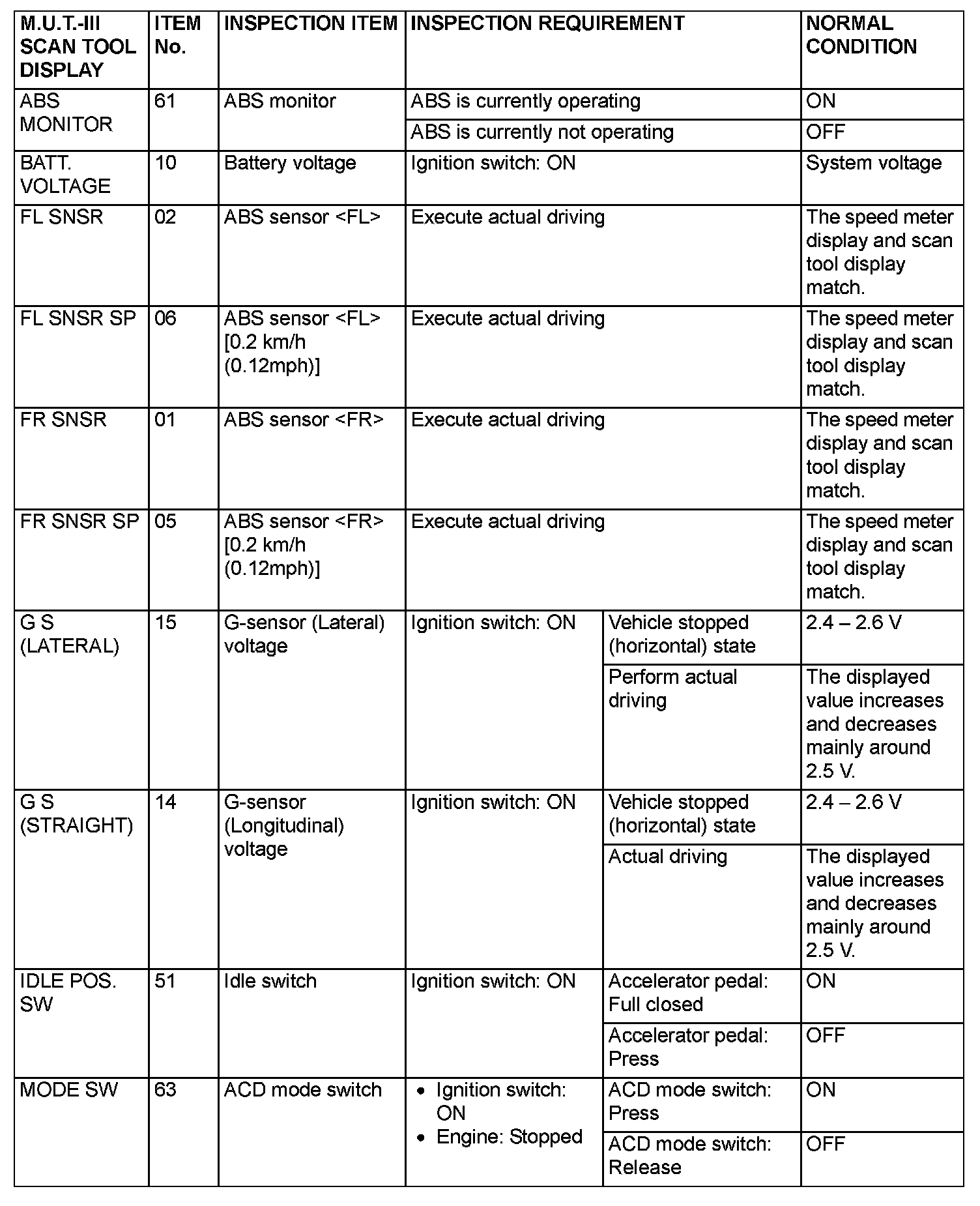

DATA LIST REFERENCE TABLE (PART 3):



DATA LIST REFERENCE TABLE (PART 4):
