Ignition Key Ring Antenna Continuity Check

IGNITION KEY RING ANTENNA CONTINUITY CHECK

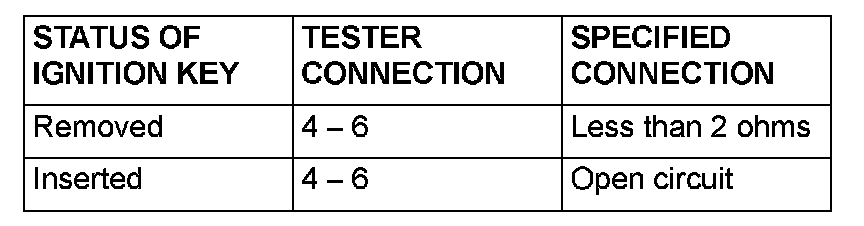

1. Ignition key reminder switch continuity check.

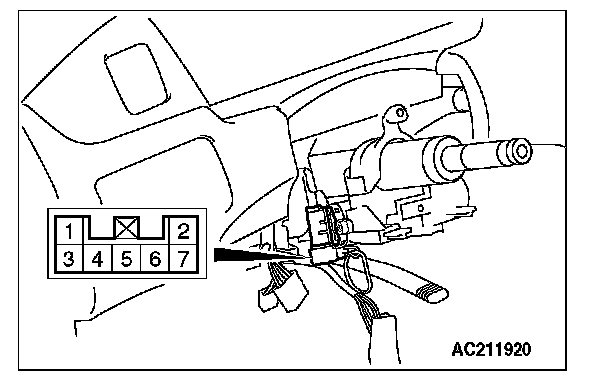

Disconnect key reminder switch connector C-88 without removing the ignition switch and steering lock cylinder. Then check the continuity.




2. Ignition key ring antenna check.
Check for continuity between terminal 3 and terminal 7.
Standard value: 2 ohm or less
