Removal And Installation < 3.8L Engine >: Notes

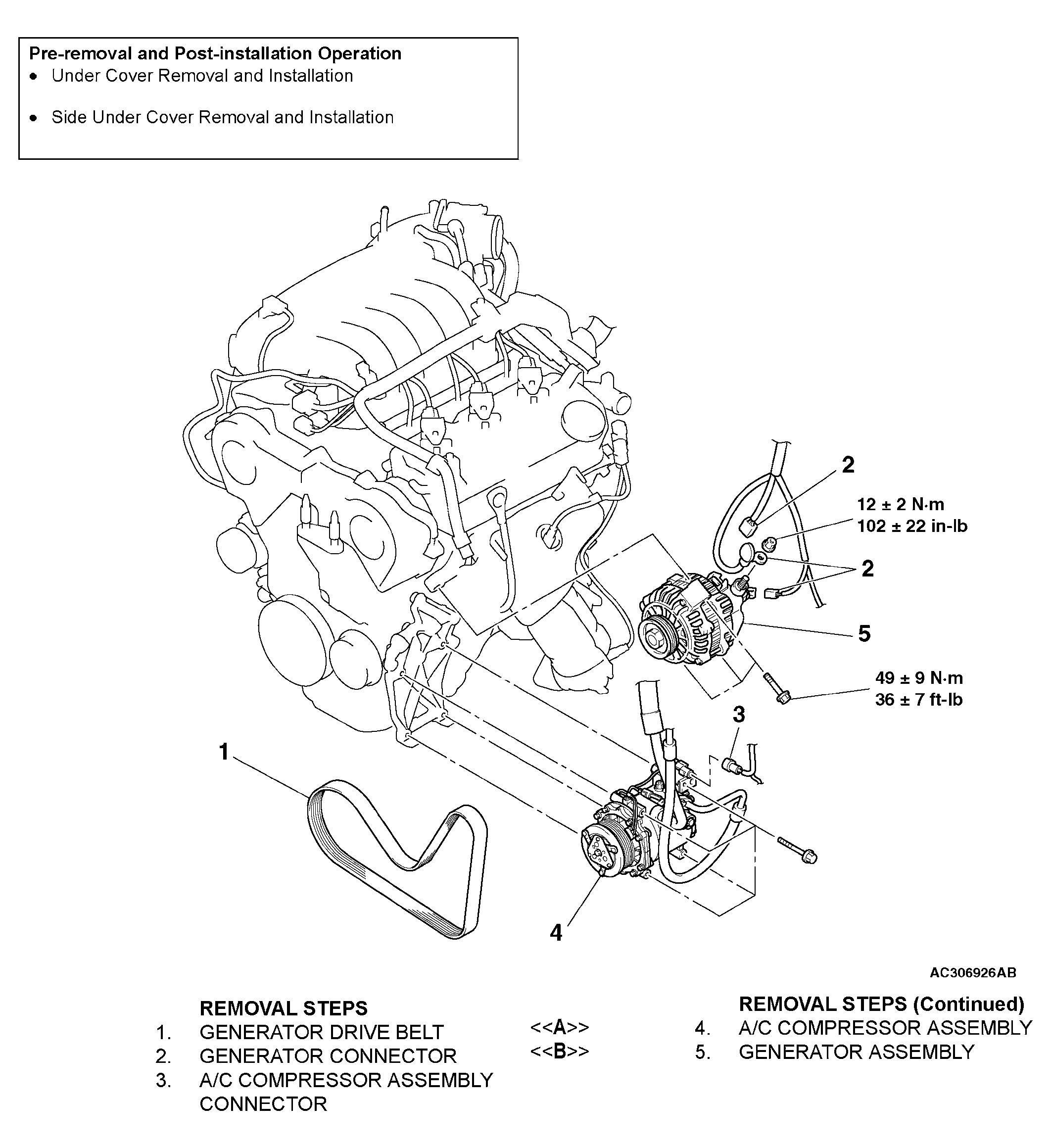

Fig 1: Removing/Installing Generator Assembly - 3.8L Engine Except MIVEC With Torque Specifications
G04253967Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
