CAN Communication Signal Table

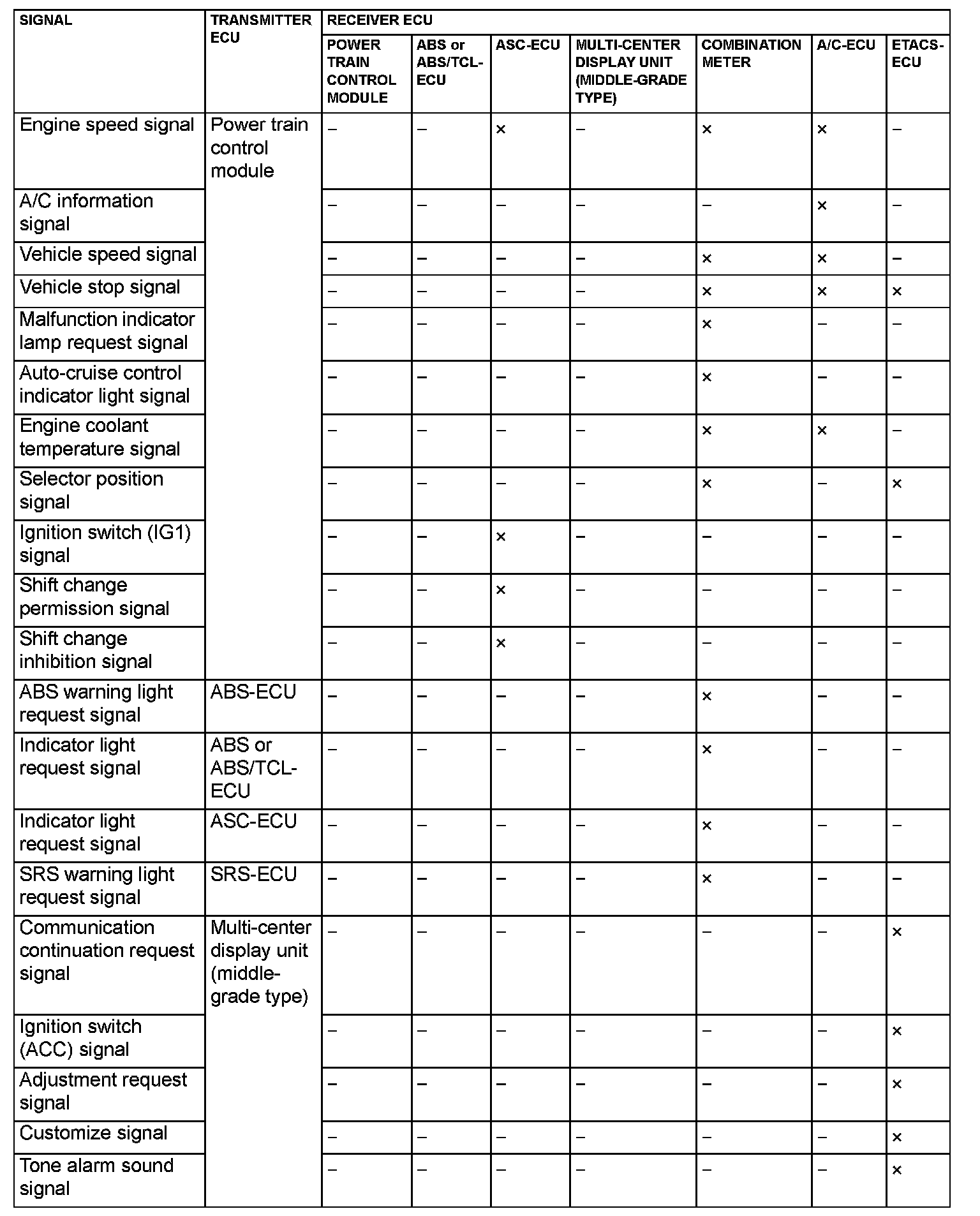

CAN Communication Signal Table Part 1:

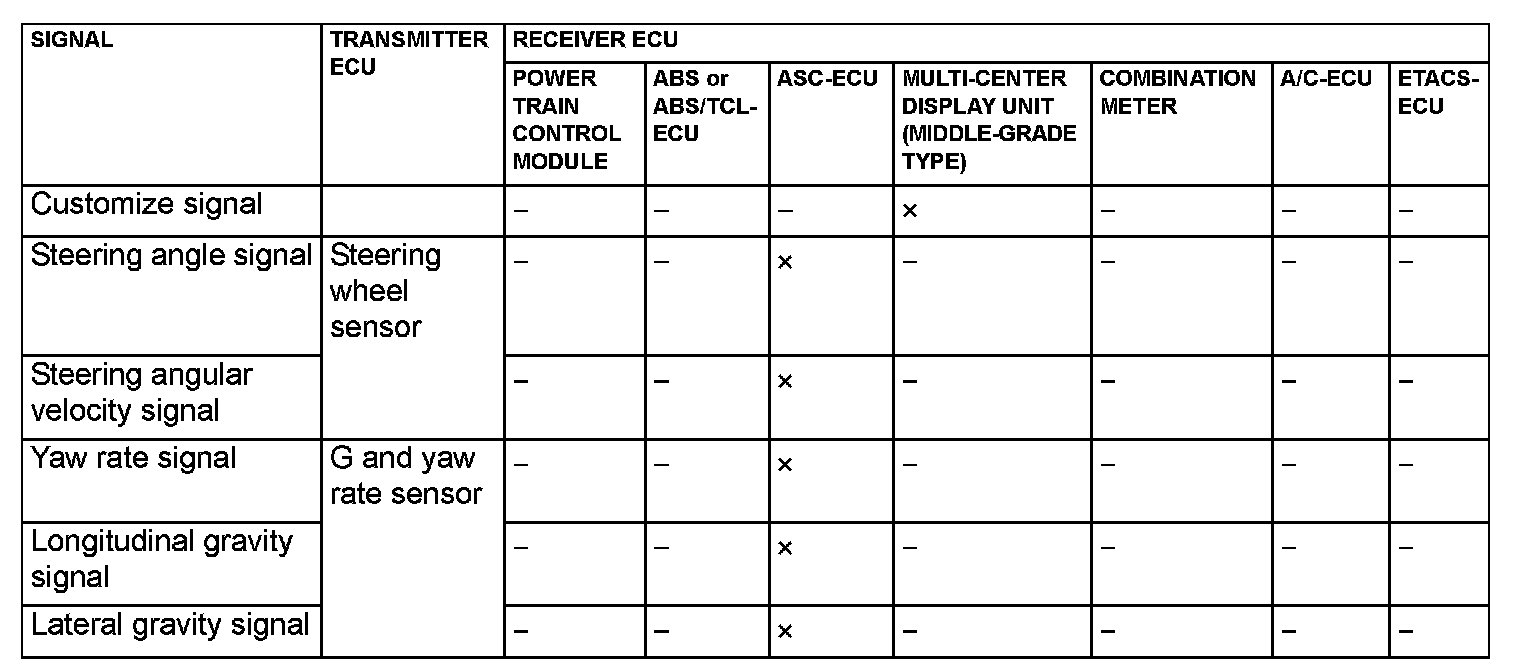

CAN Communication Signal Table Part 2:

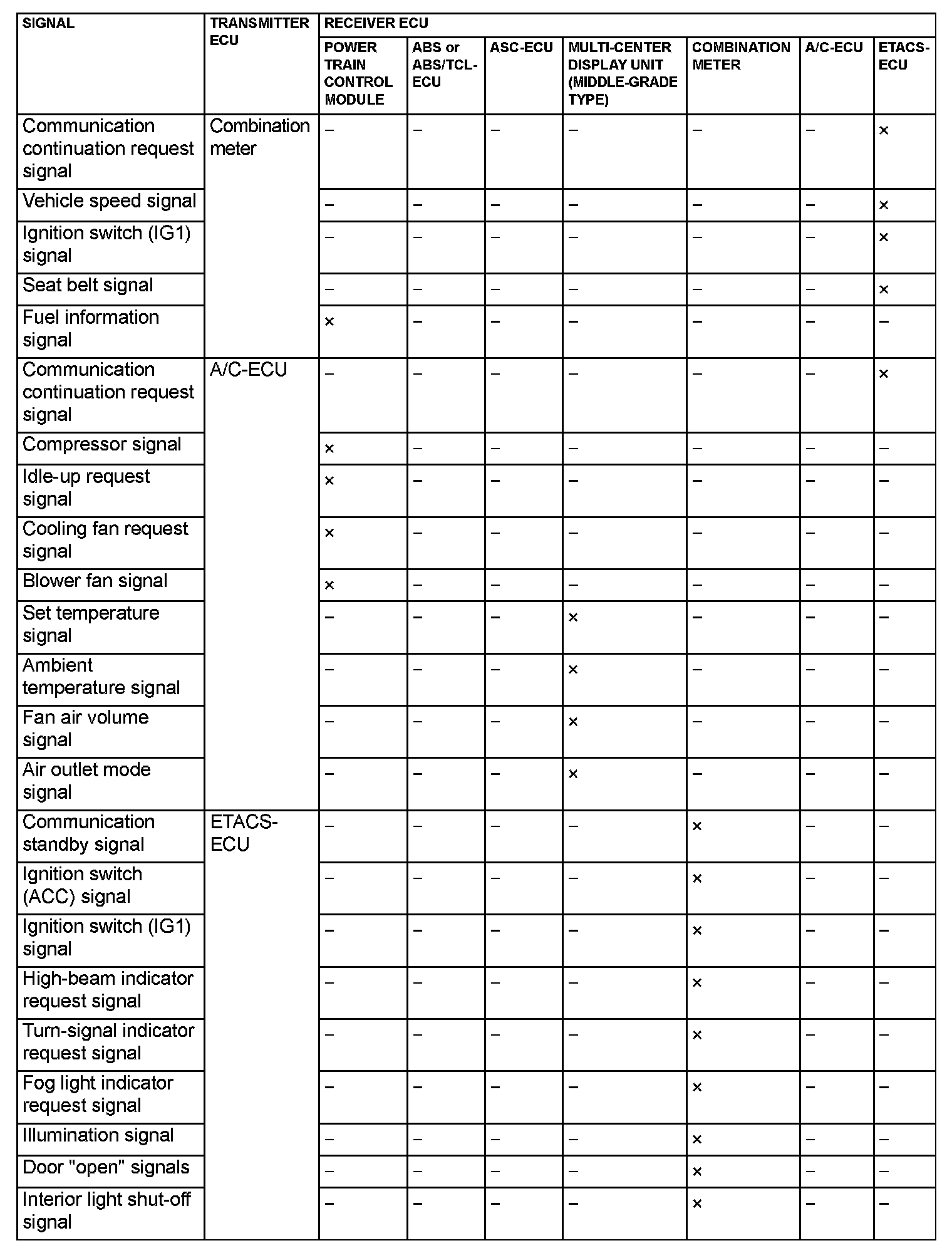

CAN Communication Signal Table Part 3:
