DTC P15: Auto-cruise Control Switch System: Notes

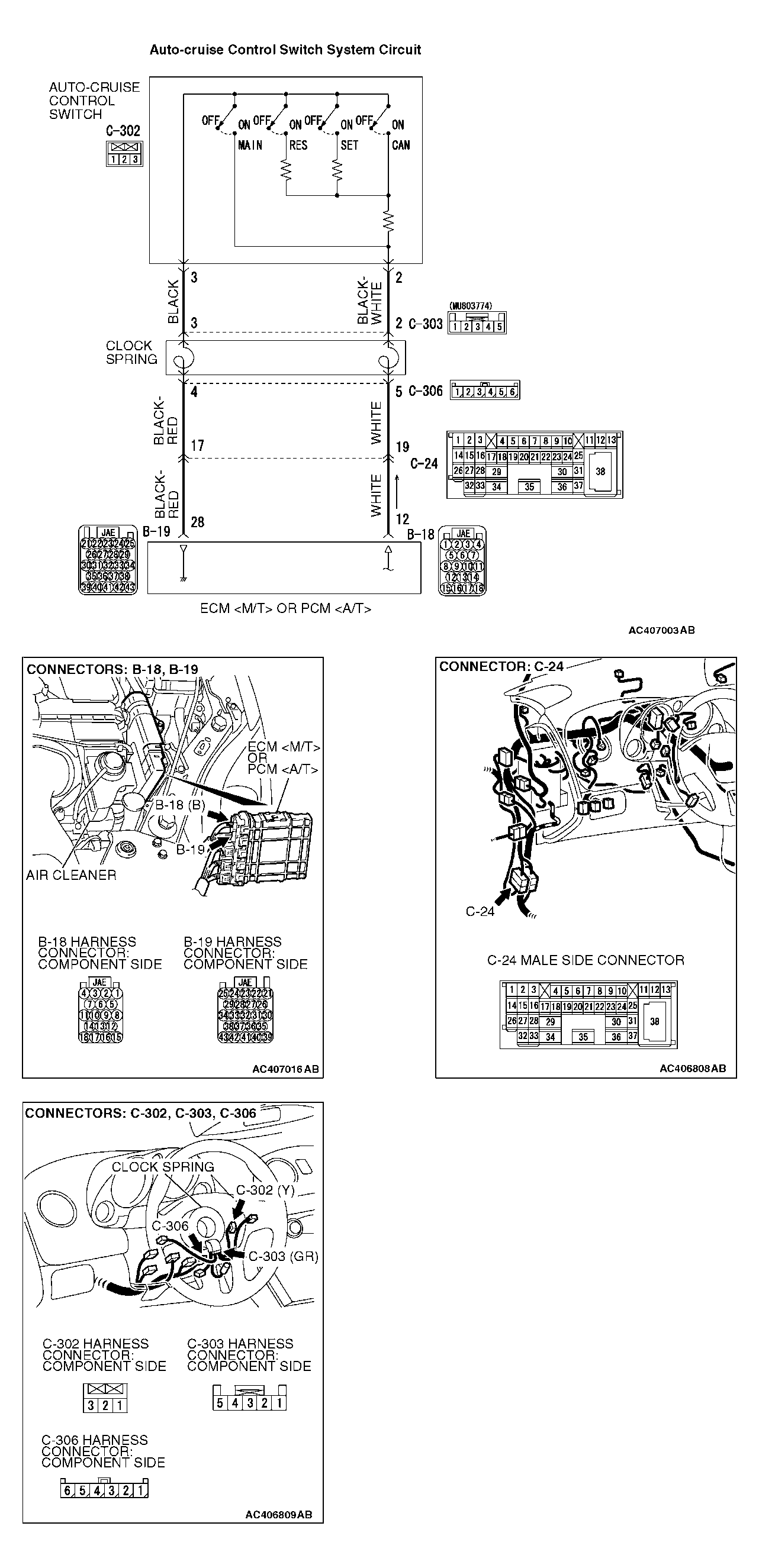

Fig 1: Auto-Cruise Control Switch System Circuit Diagram
G04237161Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
