General Description Concerning Keyless Entry System

The following ECUs affect the functions and control of the keyless entry system.

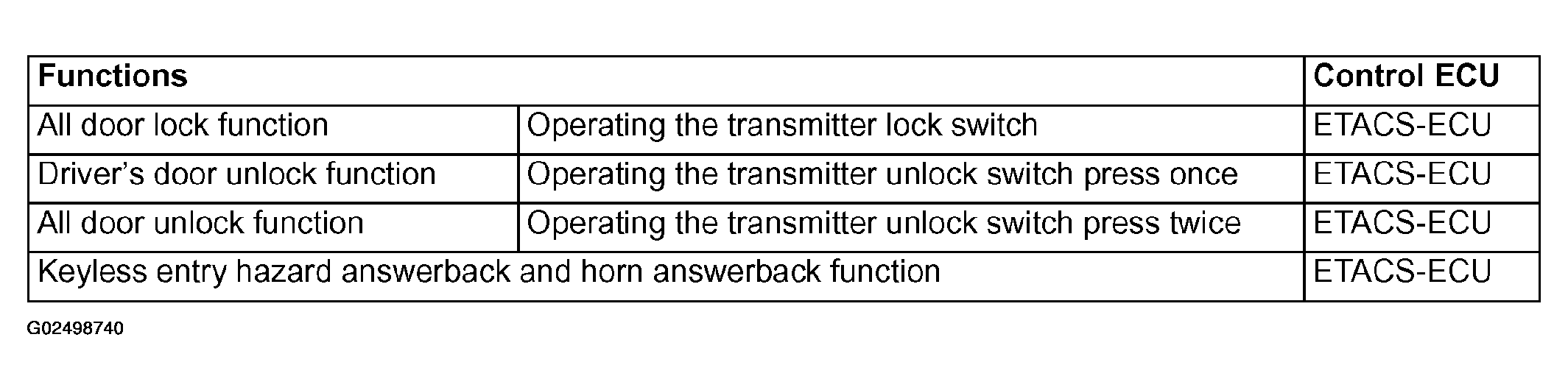

Fig 1: Functions And Control Of Keyless Entry System Chart
G02498740Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
