Disassembly And Assembly: Notes

< W4A4B >

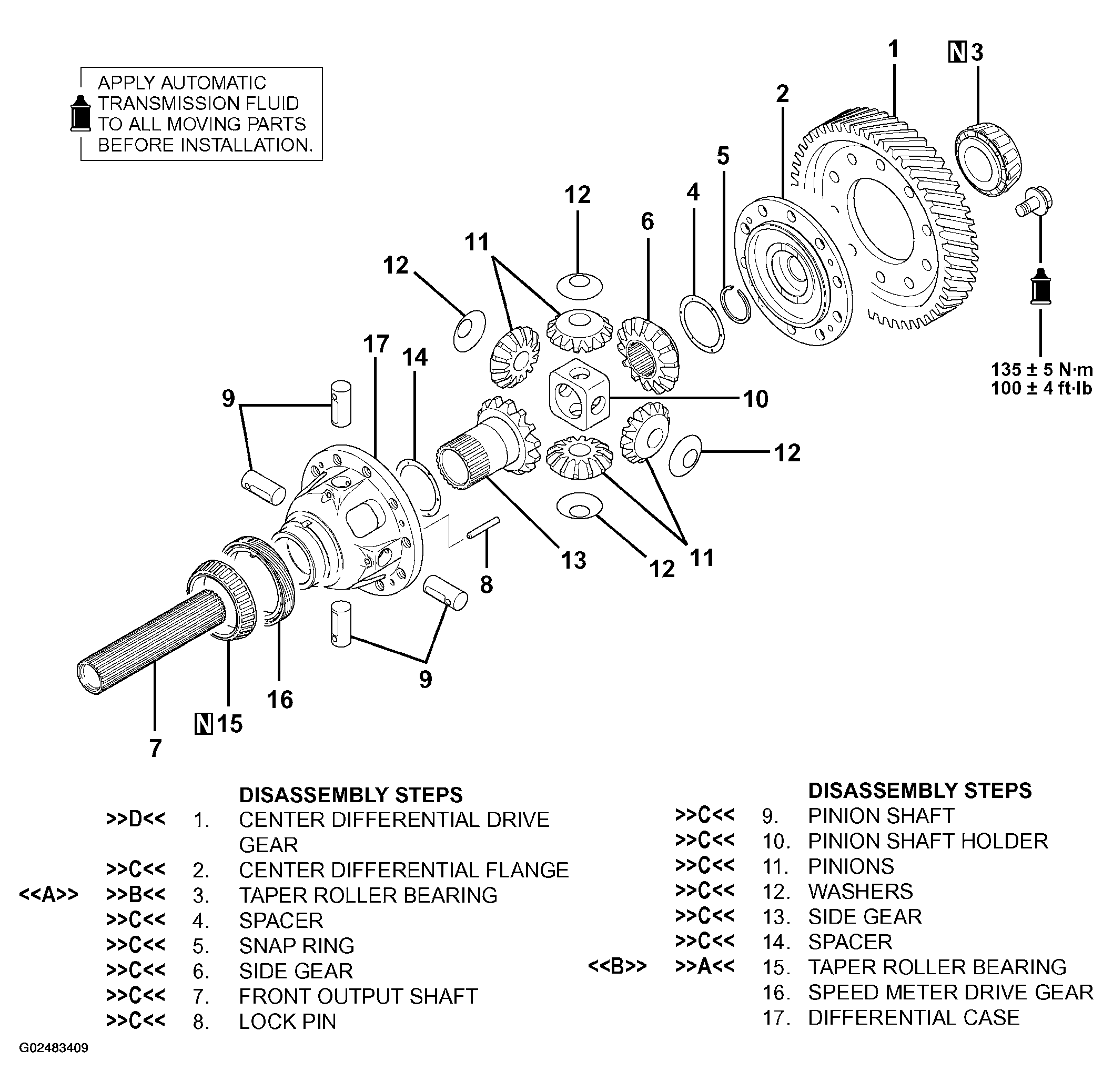

Fig 1: Disassembling/Assembling Center Differential
G02483409Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
