Home >> Mitsubishi >> 2005 >> Outlander XLS, AWD >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Hoses >> Removal And Installation >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Removal And Installation: Notes

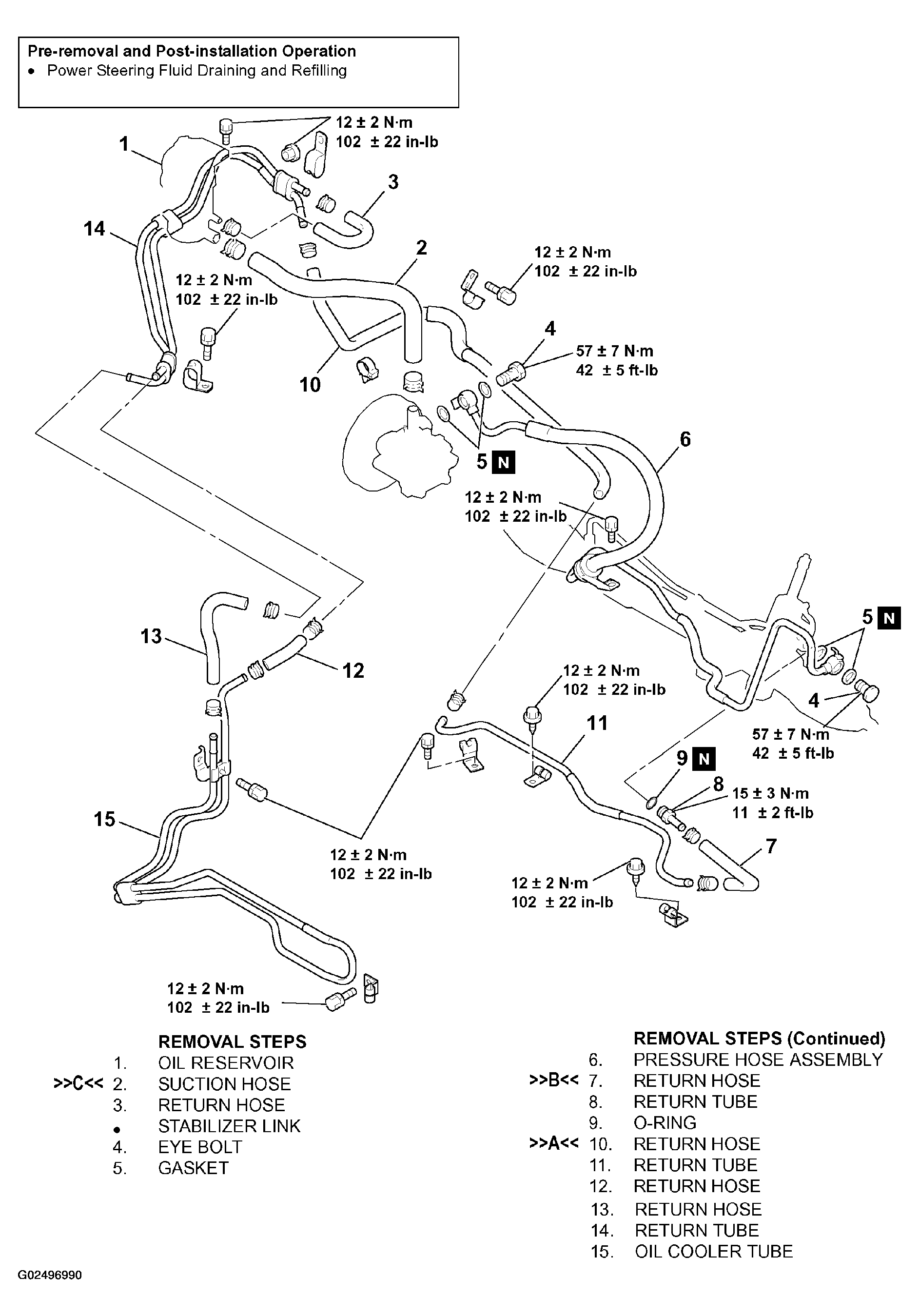

Fig 1: Removing/Installing Power Steering Hoses
G02496990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
