Removal And Installation: Notes

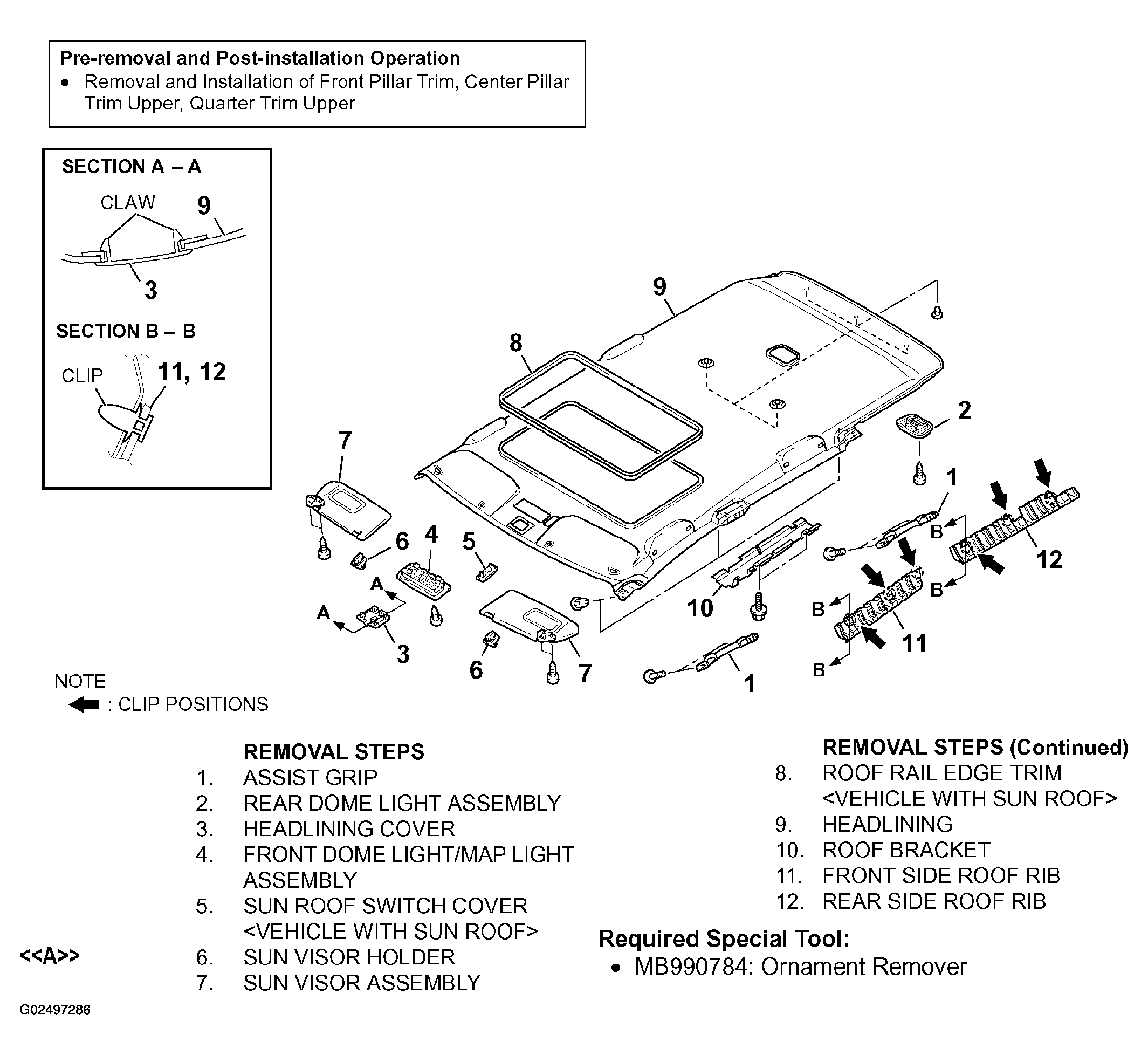

Fig 1: Removing/Installing Headlining
G02497286Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
