Component Location

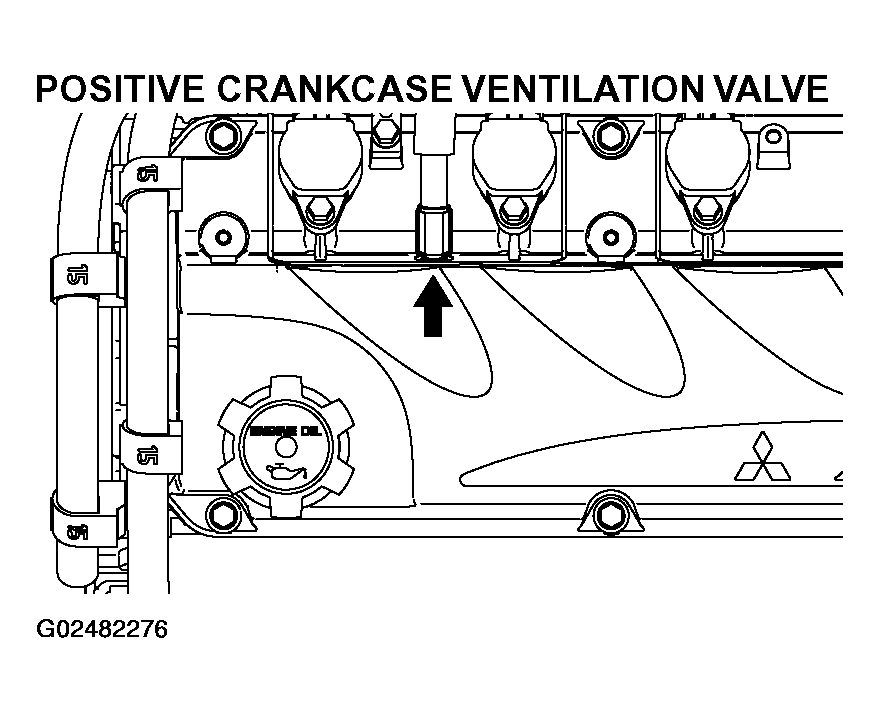

Fig 1: Locating PVC Valve In Positive Crankcase Ventilation System
G02482276Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
