Auto-Cruise Control Main Switch Check

  1. Turn the ignition switch to the "ON" position.
  2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "CRUISE" (MAIN) switch is switched "ON".

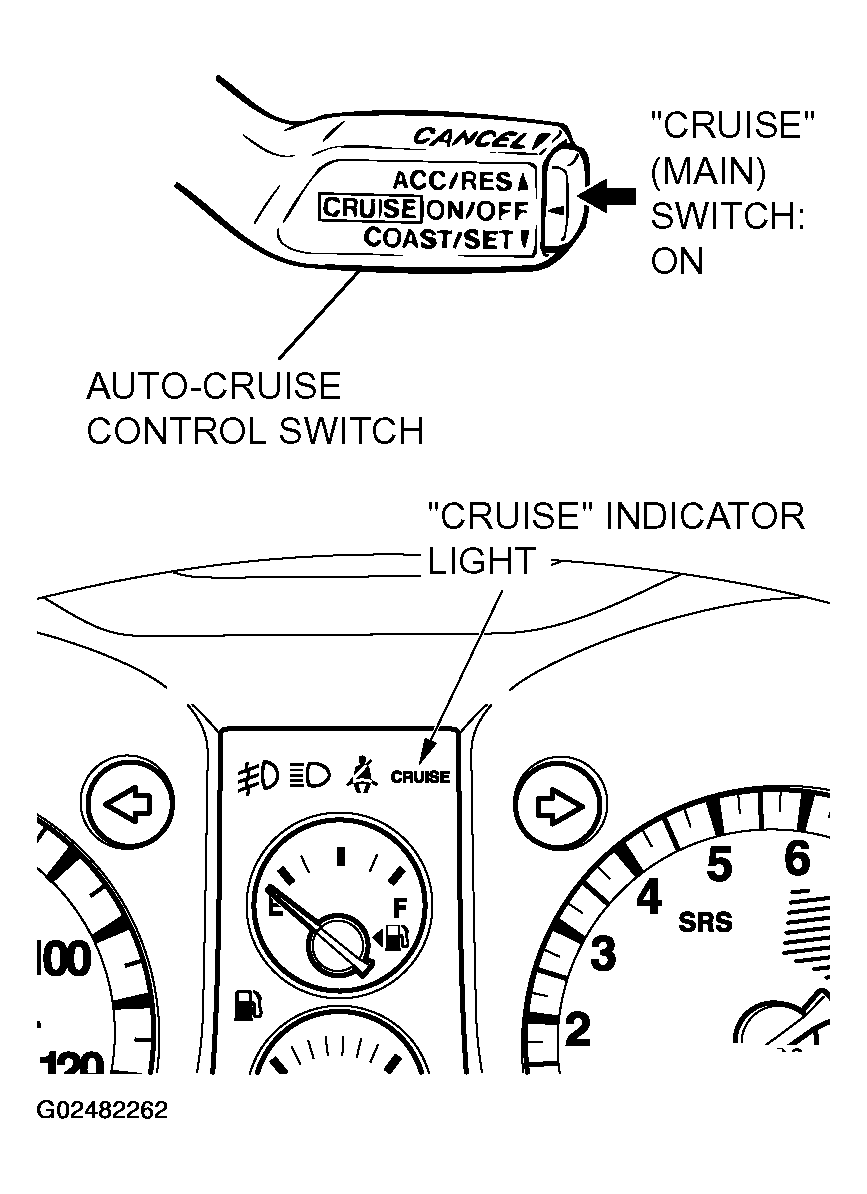

    Fig 1: Checking Illumination Of Cruise Indicator Light When Cruse Main Switch Is Switched On
    G02482262Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
