Engine Control Module: Service and Repair

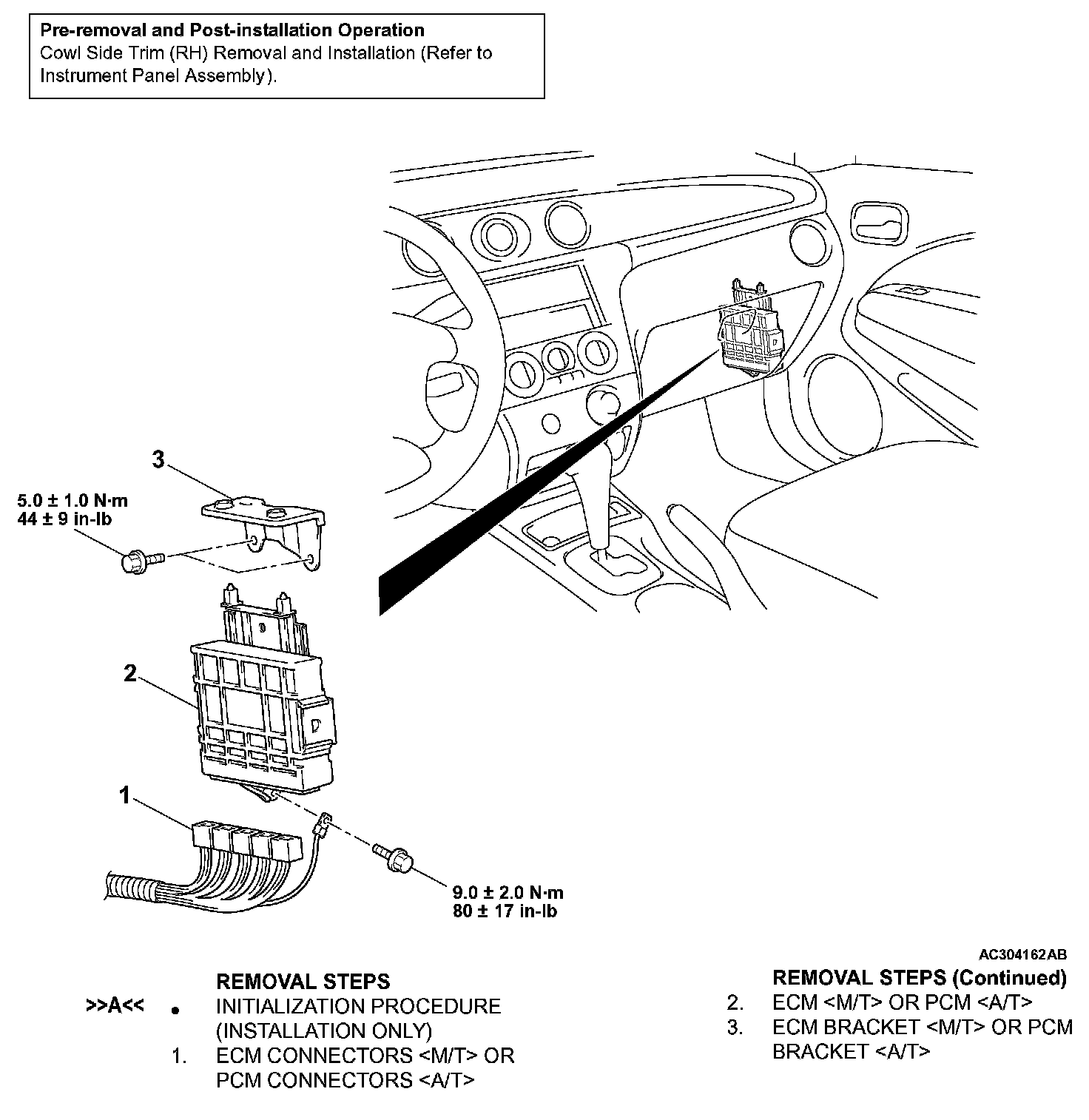

ENGINE CONTROL MODULE (ECM) AND POWERTRAIN CONTROL MODULE (PCM)




INSTALLATION SERVICE POINT

>>A<< INITIALIZATION PROCEDURE
Turn the ignition switch on then off, and keep it off for at least 10 seconds.
