Keyless Entry System

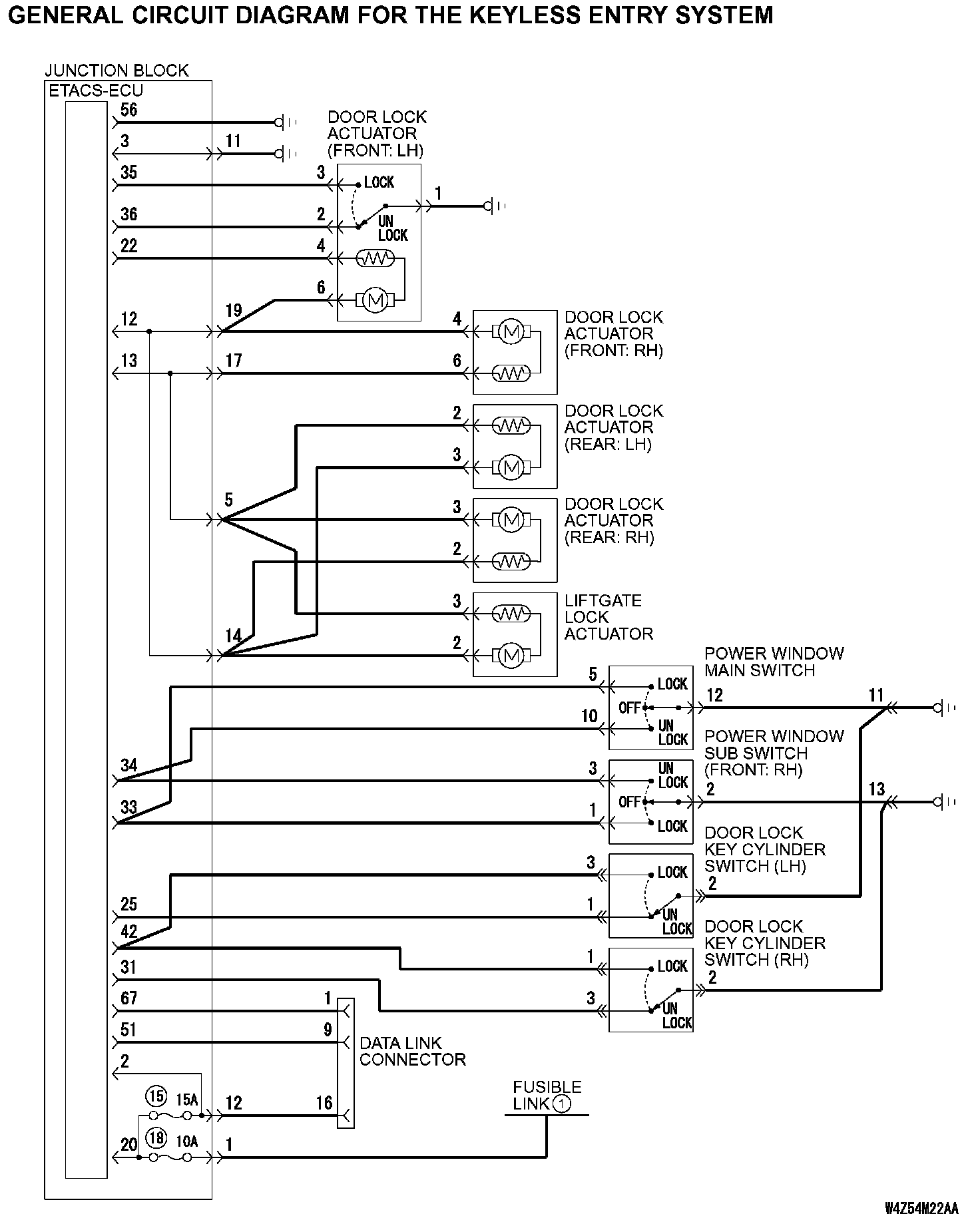

General Circuit Diagram For The Keyless Entry System Part 1:

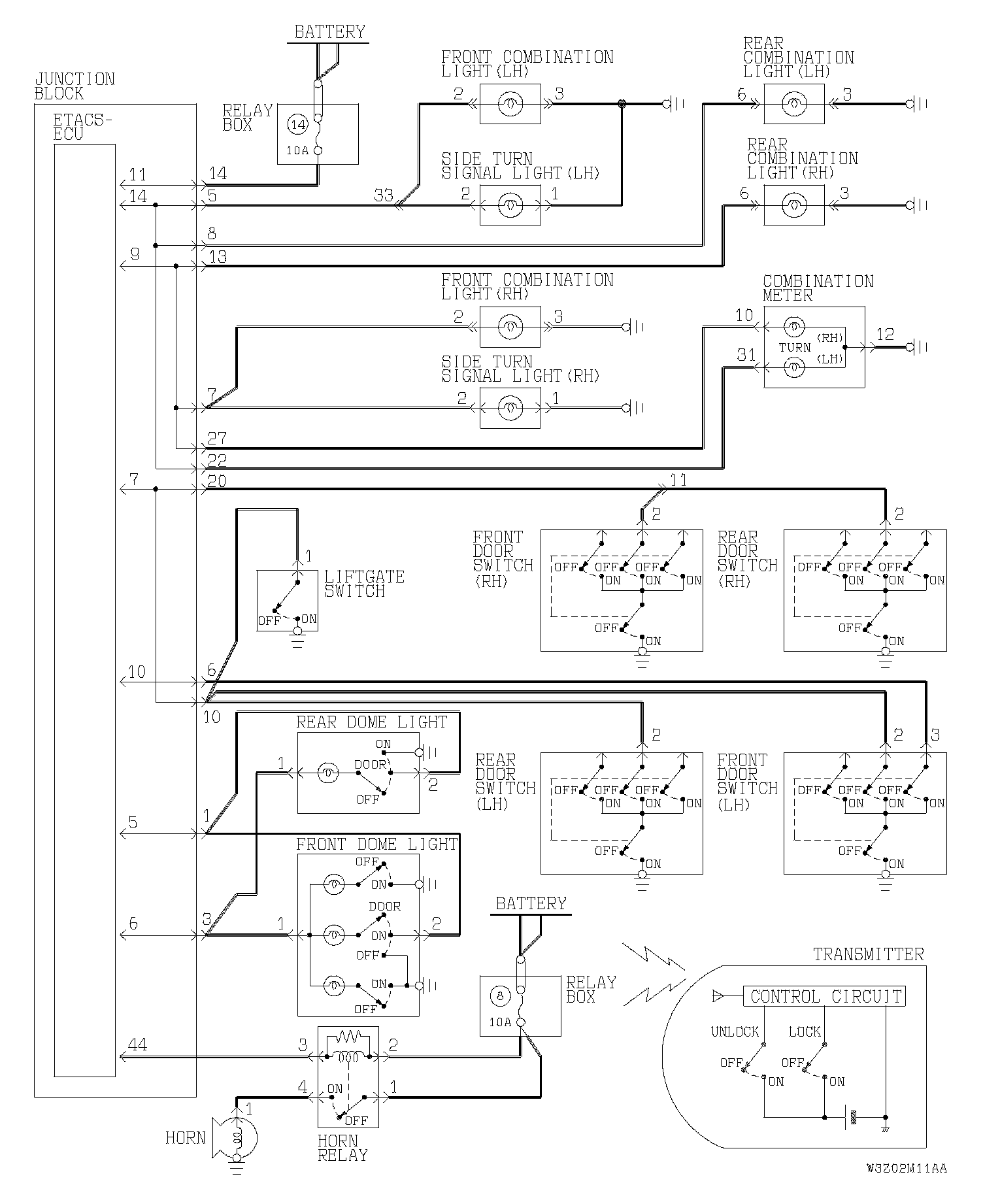

General Circuit Diagram For The Keyless Entry System Part 2:
