Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2006 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Never disassemble the UJ assembly except when replacing the UJ boot.

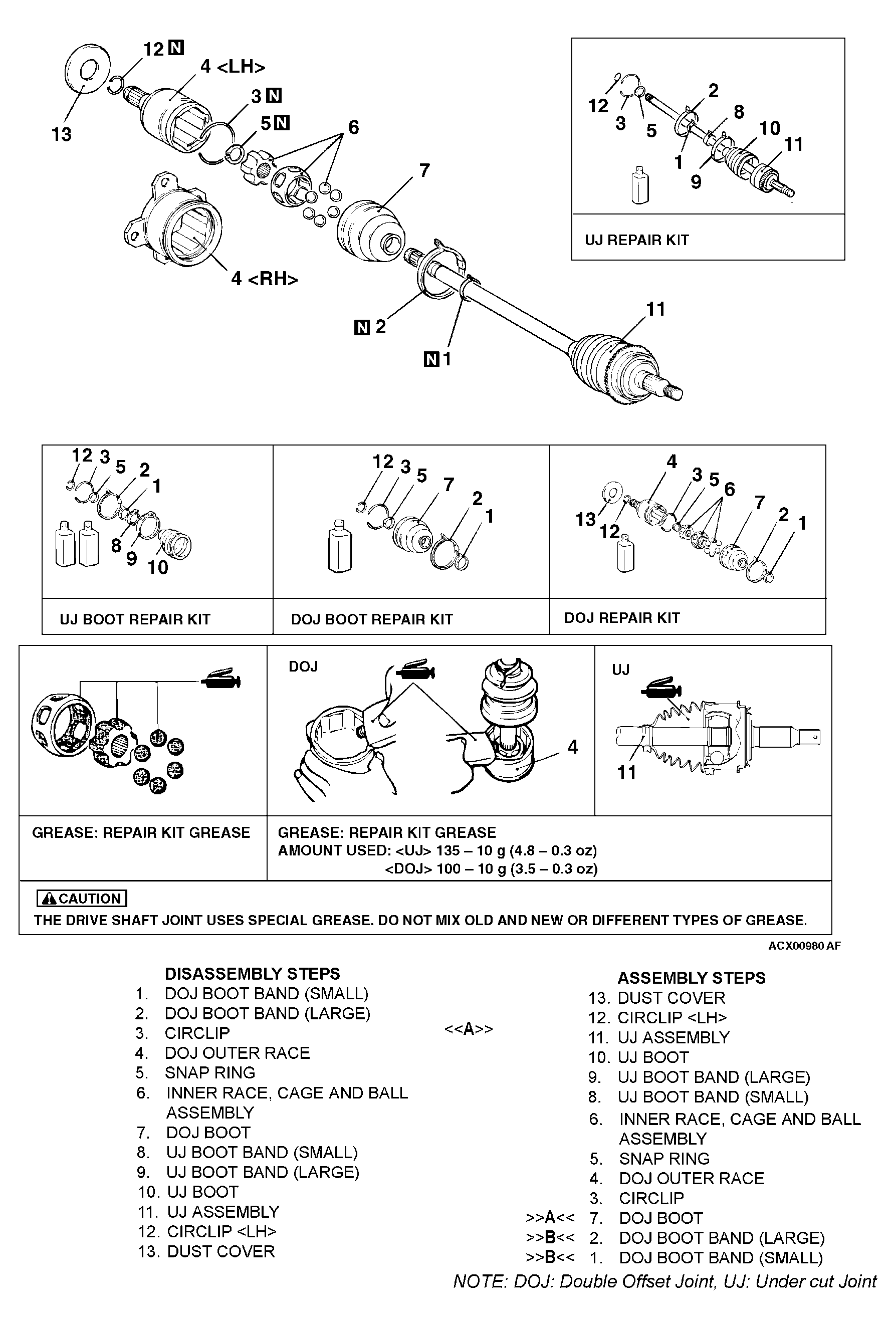

Fig 1: Disassembling/Assembling Driveshaft Assembly
G04266649Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
