< Combination Meter>

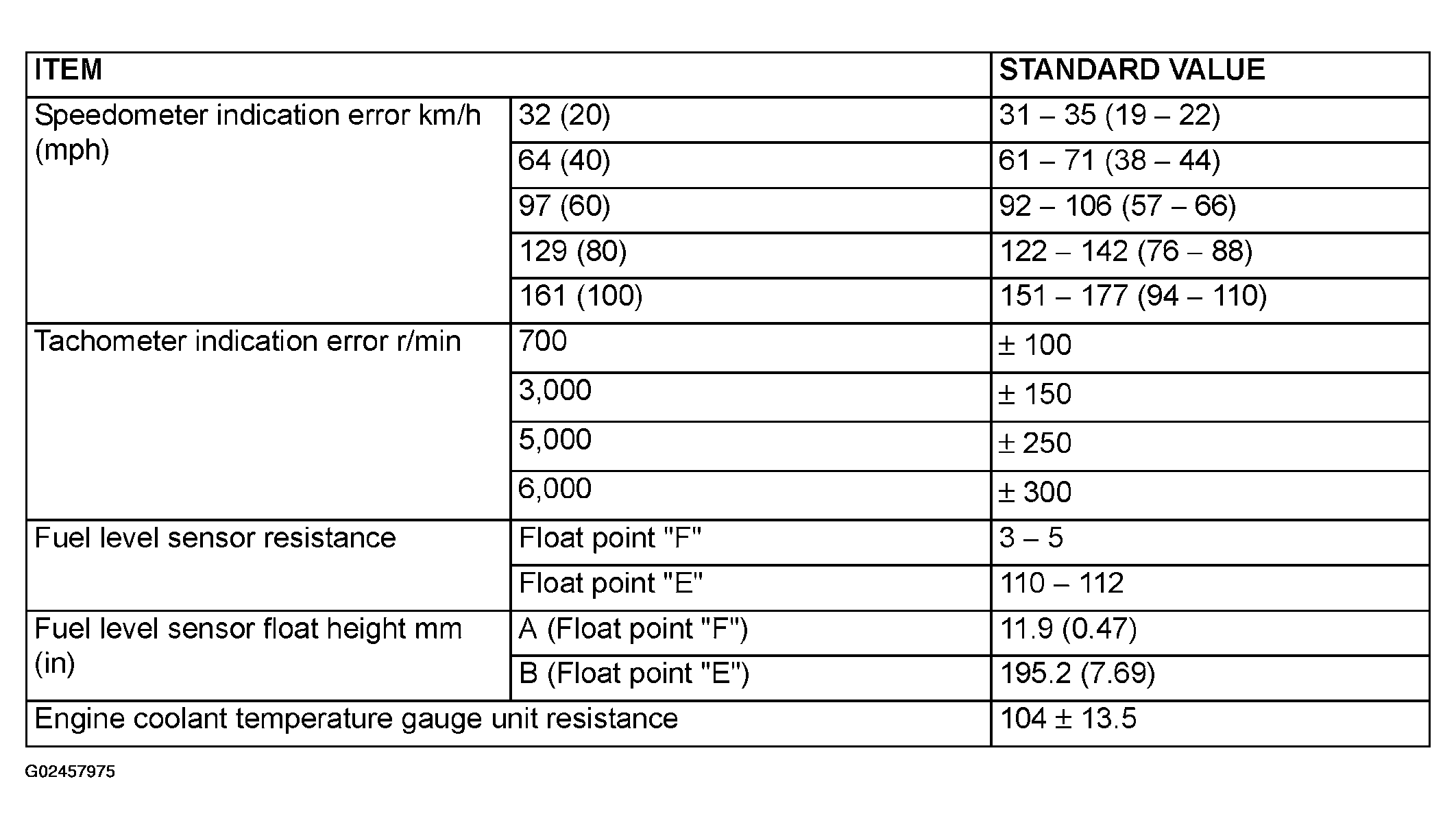

Fig 1: Combination Meter Specifications Chart (1 Of 2)
G02457975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

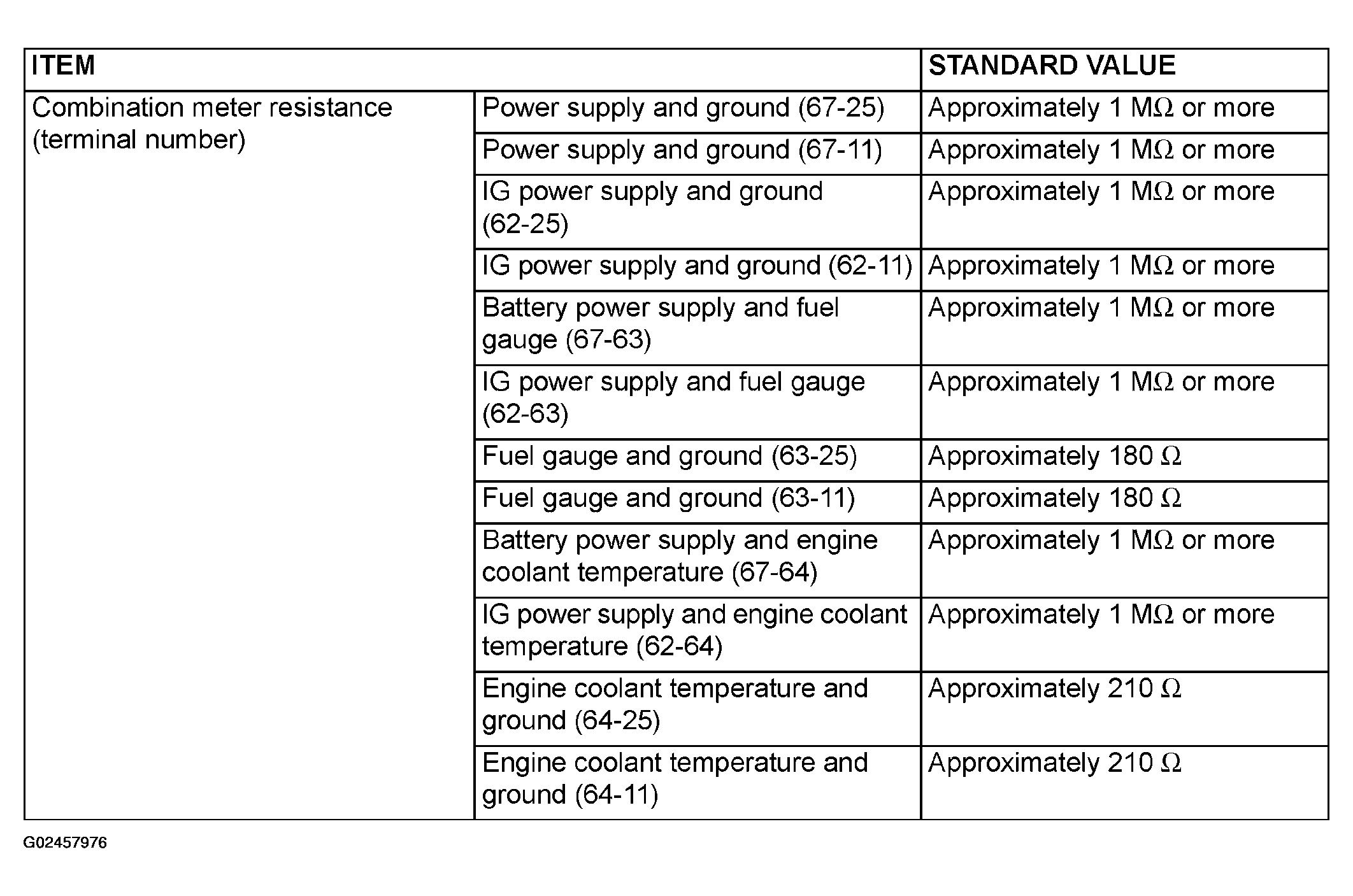

Fig 2: Combination Meter Specifications Chart (2 Of 2)
G02457976Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
