Rear Window Defogger Relay Continuity Check

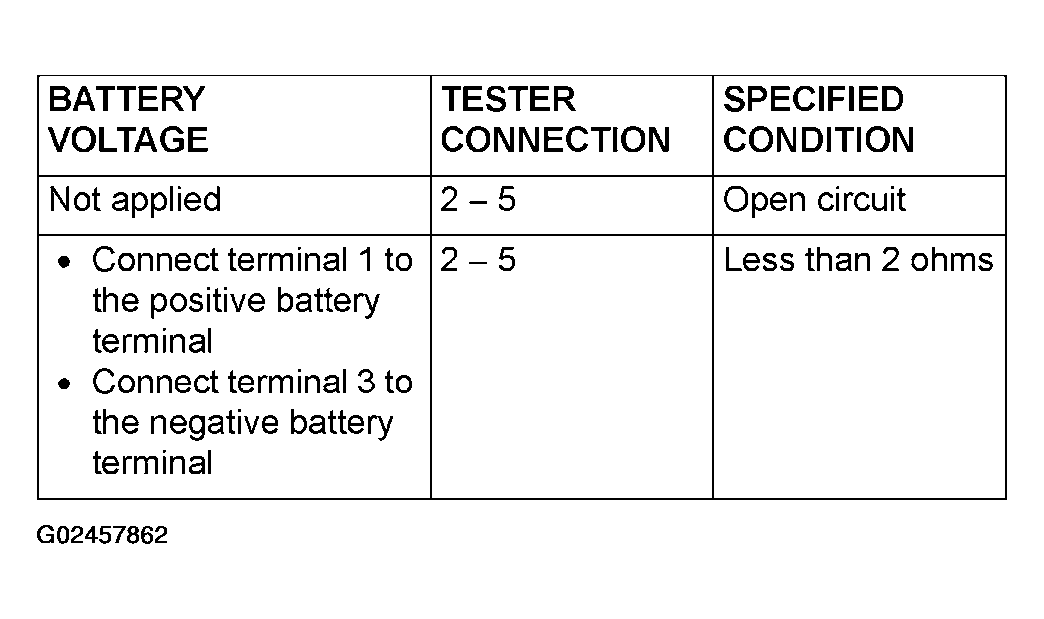

Fig 1: Rear Window Defogger Relay Continuity Check Chart
G02457862Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

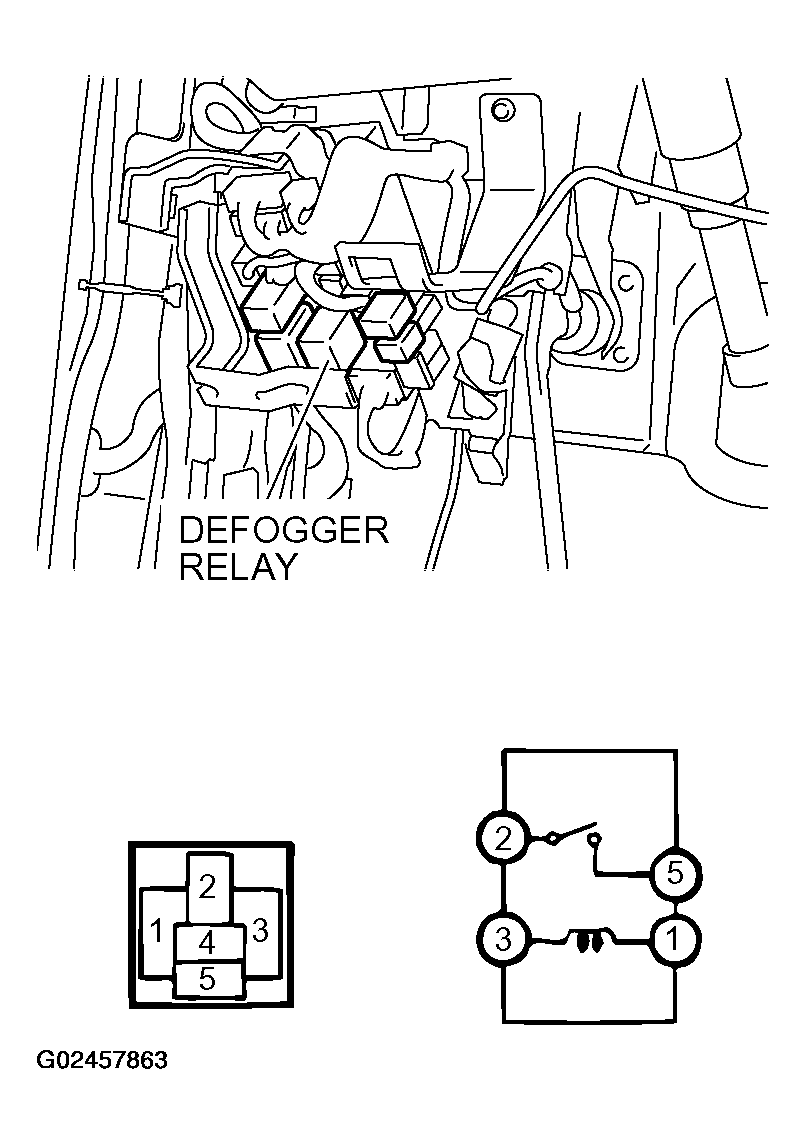

Fig 2: Locating Rear Window Defogger Relay
G02457863Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
