INSPECTION PROCEDURE 2: Tachometer does not Work.: Notes

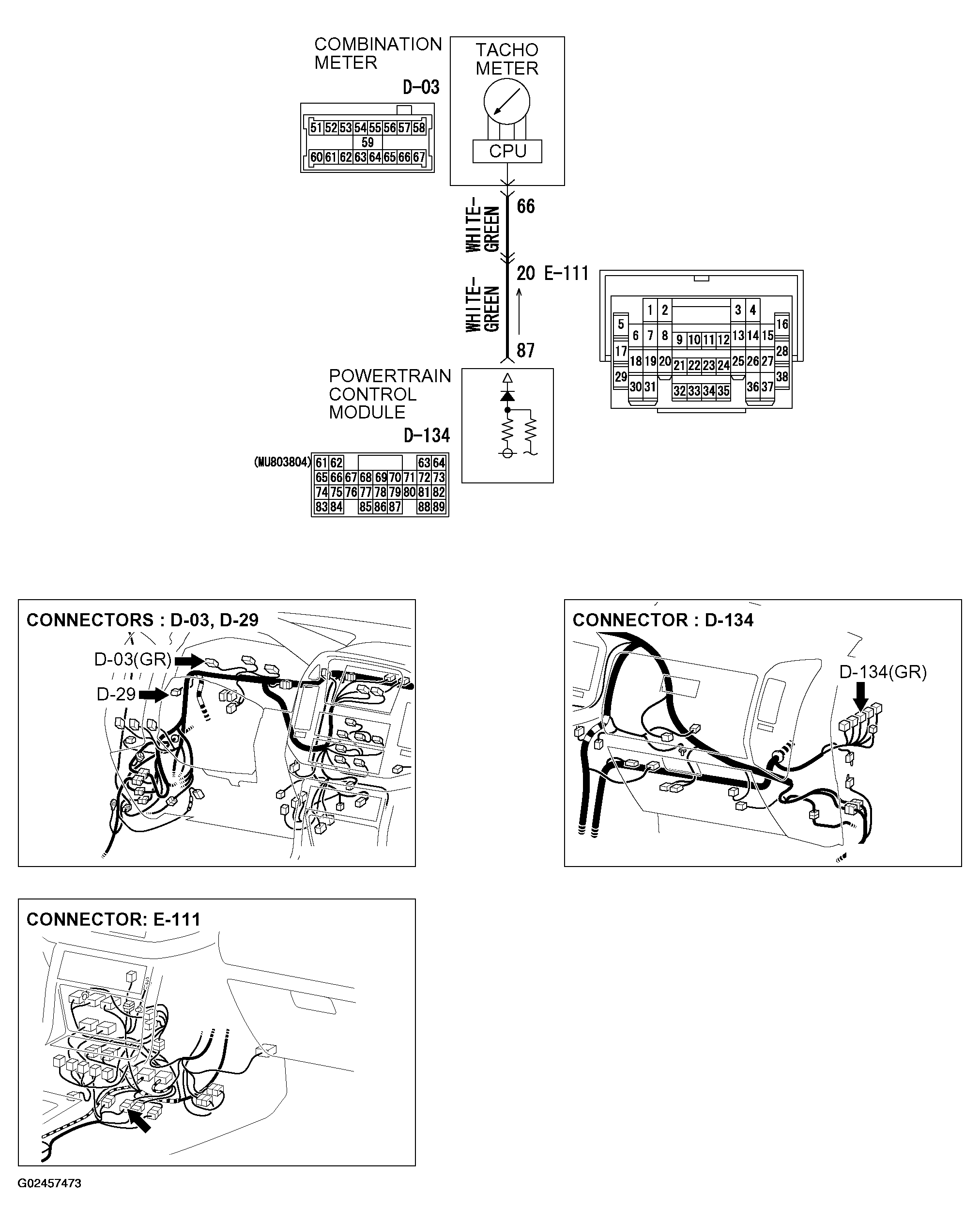

Fig 1: Tachometer Circuit Diagram
G02457473Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
