Home >> Mitsubishi >> 2005 >> Lancer L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Clutch Linkage >> Disassembly and Assembly
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

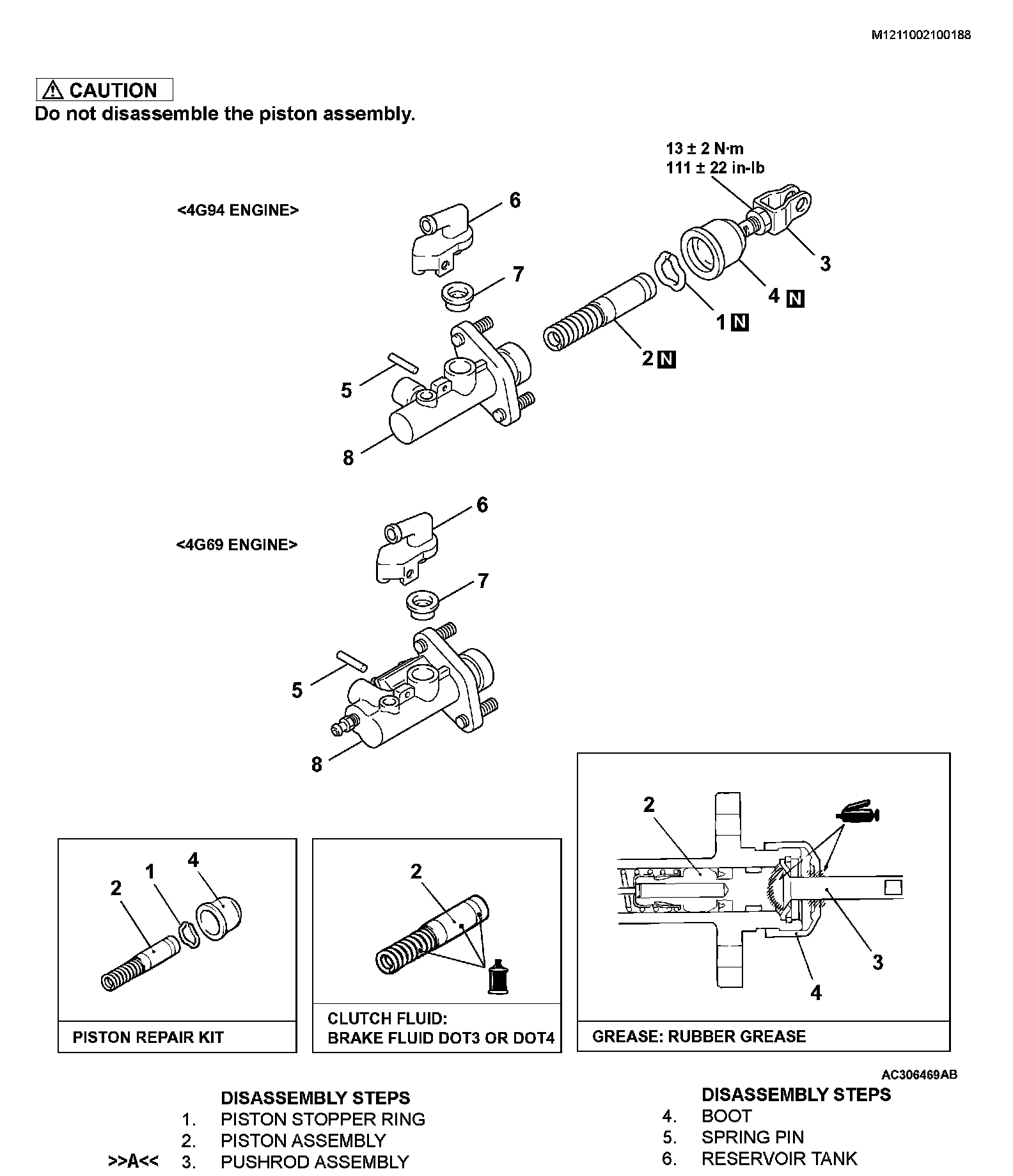

Disassembly and Assembly

Part 1:



Part 2:
